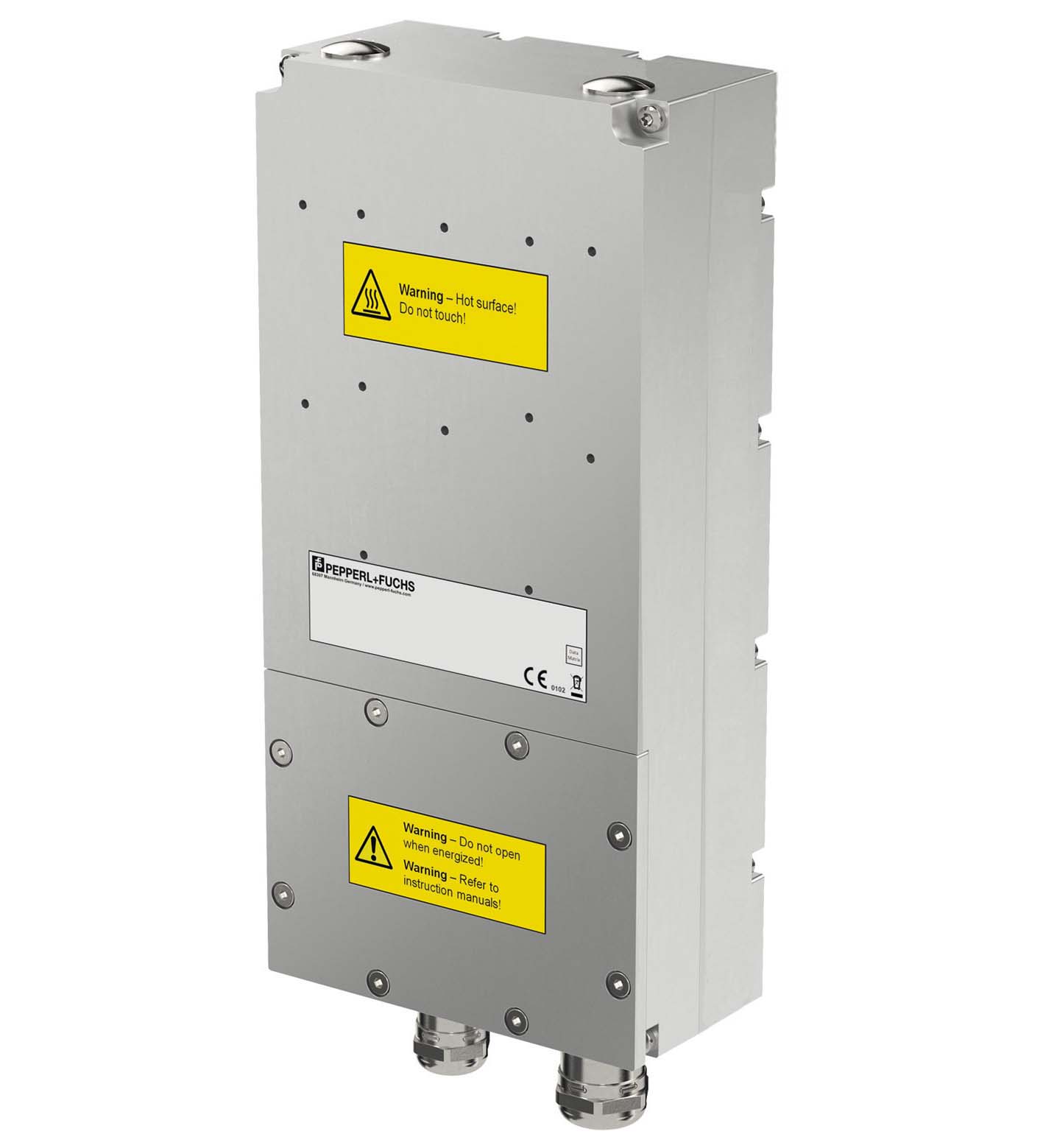

PSU1200-J2-AC-N0

AC Power Supply. AC Power Supply, Certified for ATEX and IECEx Zone 2/22, Galvanic isolation between input and output, Provides an output power up to 80 W at 24 V DC, Fully IP66 rated. Input voltage:...

AC Power Supply. AC Power Supply, Certified for ATEX and IECEx Zone 2/22, Galvanic isolation between input and output, Provides an output power up to 80 W at 24 V DC, Fully IP66 rated. Input voltage: 115/230 V AC , 50/60 Hz. Input current: max. 1.5/0.7 A. Output current: max. 3.3 A. Voltage: 24 V DC (SELV). Power: 80 W with derating. Power dissipation: 15 W at 80 W output power. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations) ; EN 61000-6-4:2007+A1:2011. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating temperature: -20 ... 65 °C (-4 ... 149 °F) with derating. Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: 93% at 40°C, non-condensating, according to EN 60068-2-78. Shock resistance: 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27. Core cross section: max. 2.5 mm2 (14 AWG). Degree of protection: IP66. Material: . Housinganodized aluminum: . Housing: anodized aluminum. Mass: approx. 3.2 kg. Dimensions: 245 mm x 122 mm x 58 mm. EU-type examination certificate: BVS 16 ATEX E 097 X. Marking II 3G Ex ec q IIC T4 Gc [exsign] II 3D Ex tc IIIC T85°C Dc: . Marking: II 3G Ex ec q IIC T4 Gc [exsign] II 3D Ex tc IIIC T85°C Dc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-5:2015, EN 60079-7:2015, EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013, EN 60079-5:2015, EN 60079-7:2015, EN 60079-31:2014. IECEx approval: IECEx BVS 16.0063X. Approved forEx ec q IIC T4 Gc Ex tc IIIC T85°C DcStandardsIEC 60079-0:2011 , IEC 60079-5:2015 , IEC 60079-7:2015 , IEC 60079-31:2013: . Approved for: Ex ec q IIC T4 Gc Ex tc IIIC T85°C Dc. Standards: IEC 60079-0:2011 , IEC 60079-5:2015 , IEC 60079-7:2015 , IEC 60079-31:2013

Brand	Pepperl Fuchs
Lifecycle status	active
