PXV-CAM

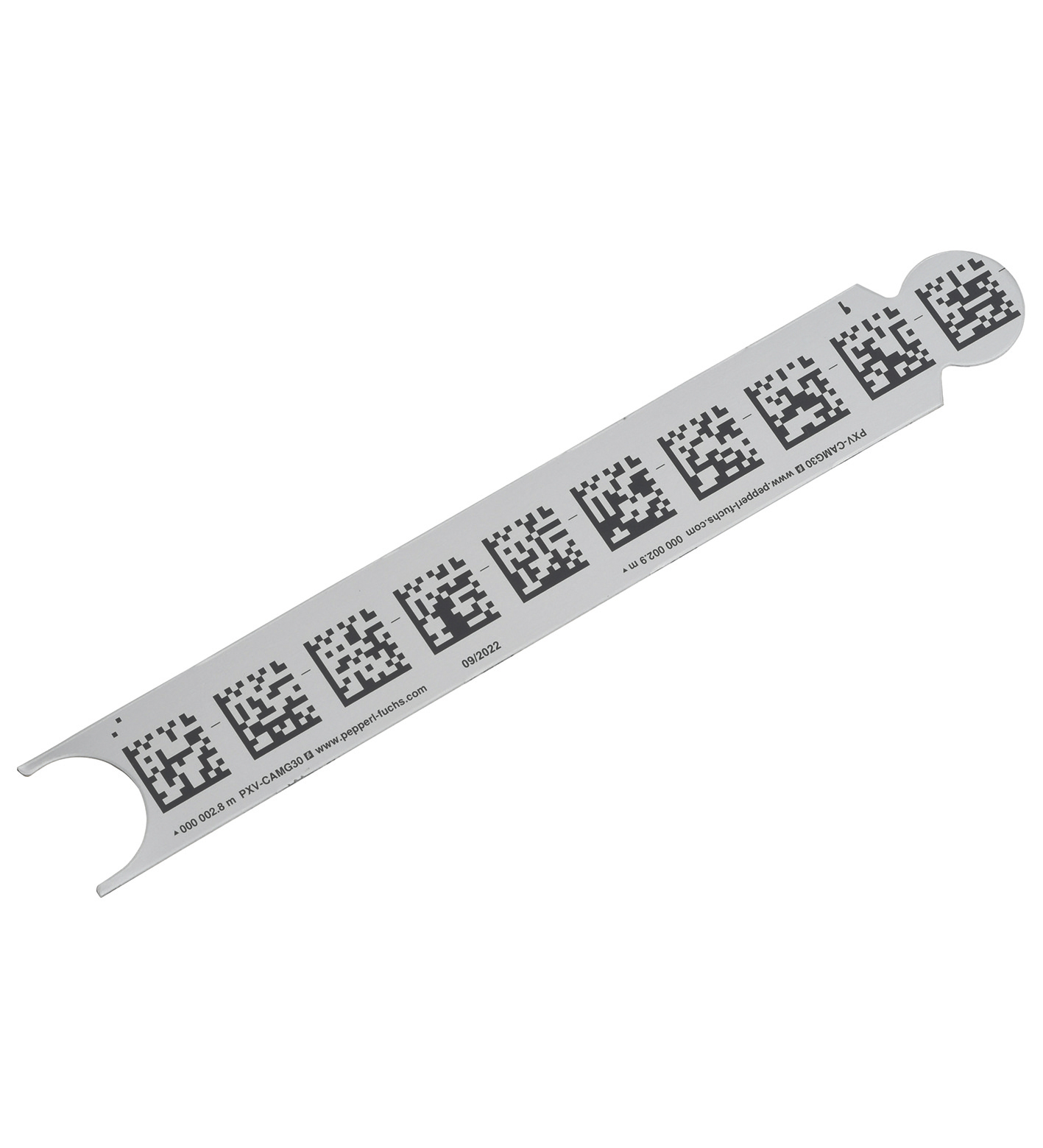

Metal code bar. Data Matrix metal code bars for positioning PXV read heads with red illumination, High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resista...

Metal code bar. Data Matrix metal code bars for positioning PXV read heads with red illumination, High temperature resistance, High mechanical stability, Easily exchangeable, Chemically highly resistant. Total length: 1 ... 10000 m. Start position: 1 ... 9999 m. Code bar segment: . Nominal segment length: 100 mm200 mm500 mm. Width: 30 mm50 mm. Operating temperature: -40 ... 80 °C (-40 ... 176 °F). Installation temperature: 10 ... 40 °C (50 ... 104 °F). Environmental resistance: UV radiation Humidity. Chemical resistance: Oils Grease Fuels Aliphatic solvents Weak acids. Material thickness: 1 mm. Material: Aluminum. Mounting type: adhesive screwing. Mass: 83 g / m. Manufacturing tolerance: ± 1 mm/m. Storage: Maximum 2 years under normal storage conditions.

Brand	Pepperl Fuchs
Lifecycle status	active
