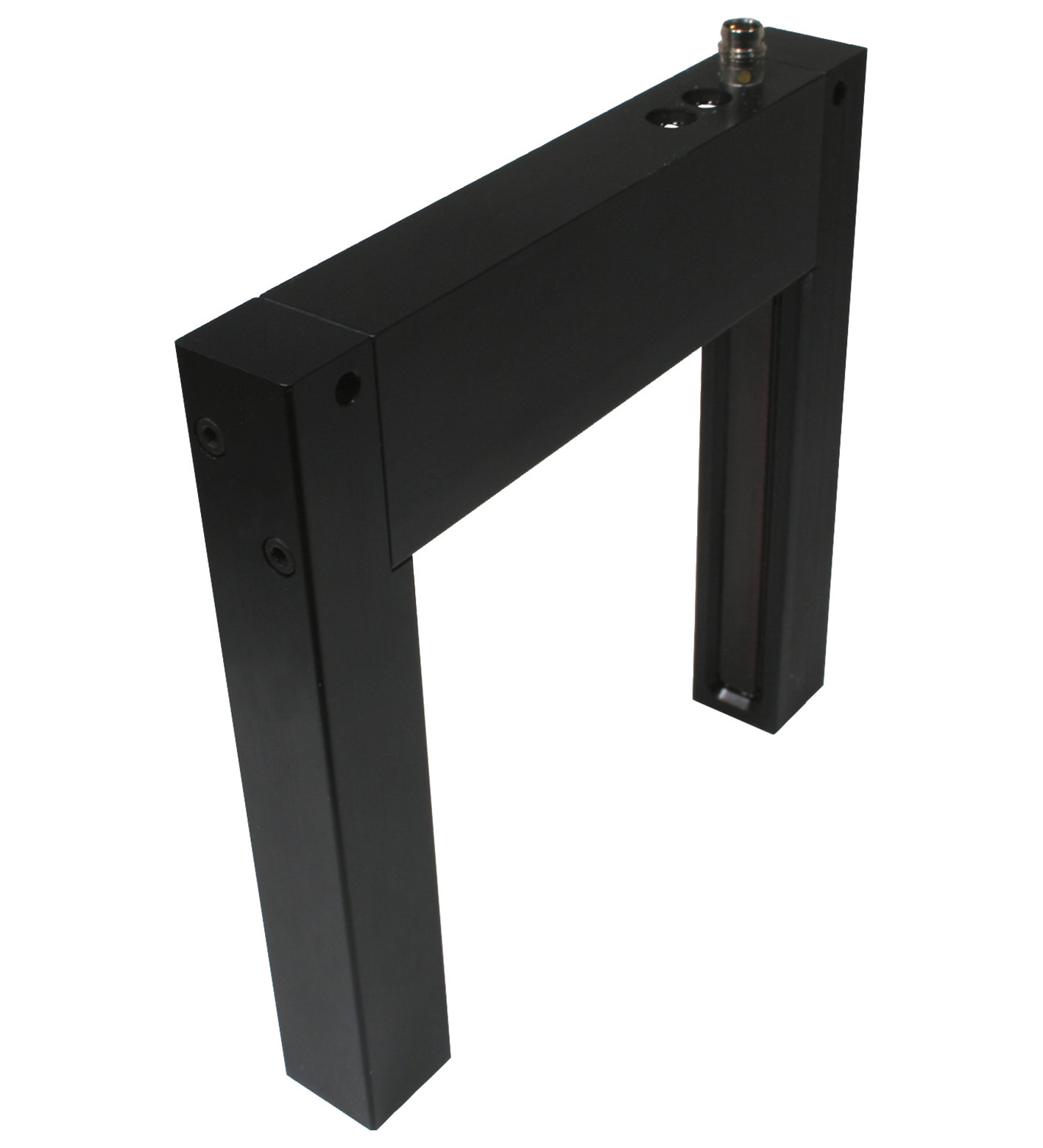

RAL100-IR/32/98

Slot grid sensor. Compact slot grid sensor, optimized for detection of small parts, 100 mm slot width, infrared light, PNP output, M8 plug, Compact slot grid sensor, Open frame with wide detection are...

Slot grid sensor. Compact slot grid sensor, optimized for detection of small parts, 100 mm slot width, infrared light, PNP output, M8 plug, Compact slot grid sensor, Open frame with wide detection area, Optimized for the detection of small parts, Option to suppress stationary objects, Detection of very small guided and non-guided parts in free fall. Light source: IRED. Light type: modulated infrared light. Marking: CE. Slot width: 100 mm. Slot depth: 98 mm. Ambient light limit: 10000 Lux. Resolution: 2 mm. Temperature influence: < 10 %. active zone: 100 mm x 94 mm. Function indicator: LED, yellow. Control elements: sensitivity adjustment. Control elements: Time adjuster for Pulse stretching and Dynamic/static operation. Operating voltage: 24 V DC ± 20 %. No-load supply current: < 70 mA. Switching type: dark-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: 200 mA. Voltage drop: < 2.5 V. Switching frequency: 5000 Hz. Repeat accuracy: 0.1 mm. Pulse extension: 0.1 ... 150 ms. Product standard: EN 60947-5-2. Ambient temperature: -10 ... 60 °C (14 ... 140 °F). Degree of protection: IP67. Connection: M8 connector, 3-pin. Material: . Housingblack anodized aluminumOptical faceglass: . Housing: black anodized aluminum. Optical face: glass. Mass: 400 g. Dimensions: . Height140 mmWidth20 mmLength135 mm: . Height: 140 mm. Width: 20 mm. Length: 135 mm

Brand	Pepperl Fuchs
Lifecycle status	active
