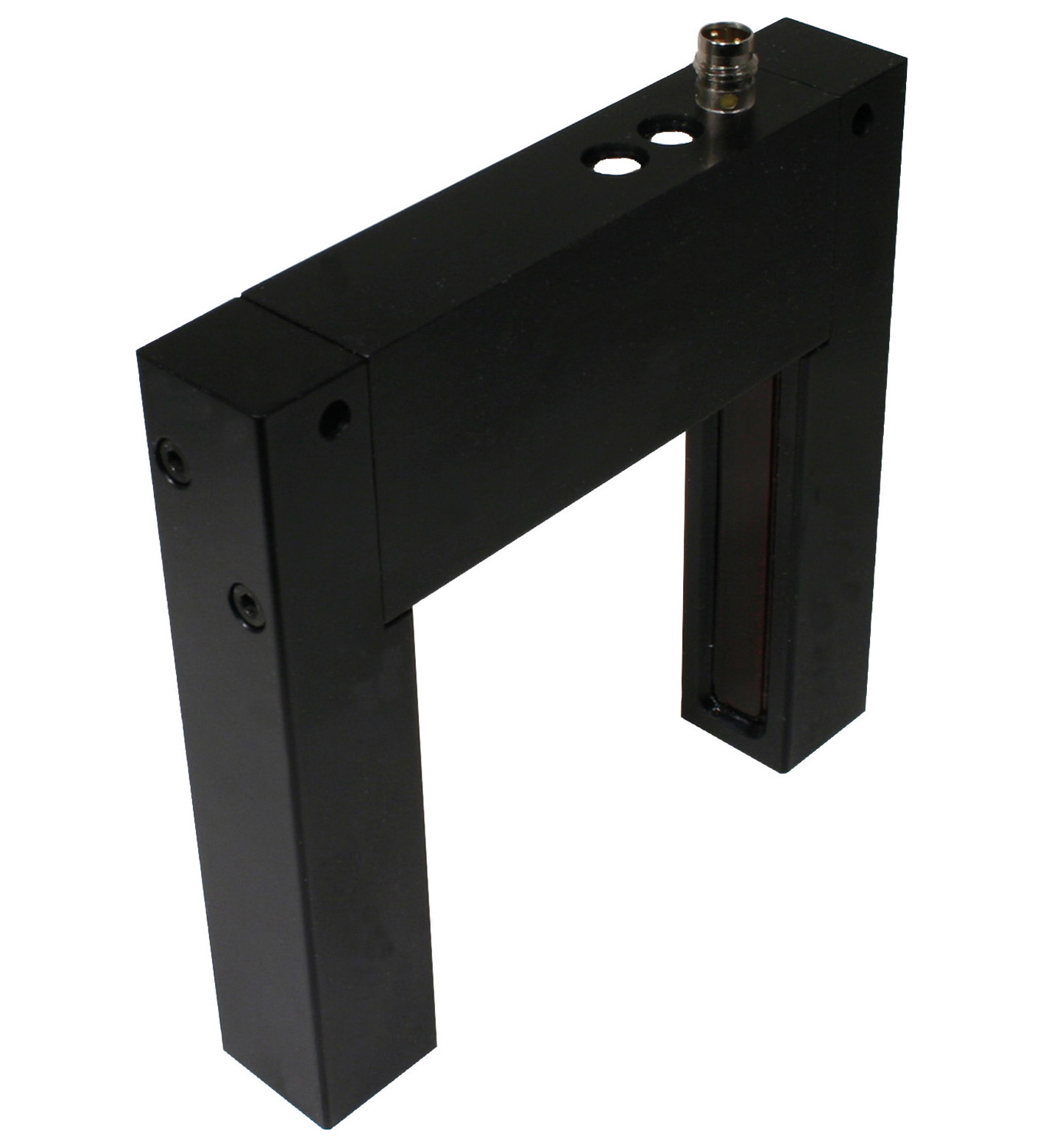

RAL70-IR/32/98

Slot grid sensor. Compact slot grid sensor, optimized for detection of small parts, 70 mm slot width, infrared light, PNP output, M8 plug, Compact slot grid sensor, Open frame with wide detection area...

Slot grid sensor. Compact slot grid sensor, optimized for detection of small parts, 70 mm slot width, infrared light, PNP output, M8 plug, Compact slot grid sensor, Open frame with wide detection area, Optimized for the detection of small parts, Option to suppress stationary objects, Detection of very small guided and non-guided parts in free fall. Light source: IRED. Light type: modulated infrared light. Marking: CE. Slot width: 70 mm. Slot depth: 70 mm. Ambient light limit: 10000 Lux. Resolution: 1 mm. Temperature influence: < 10 %. active zone: 70 mm x 64 mm. Function indicator: LED, yellow. Control elements: sensitivity adjustment. Control elements: Time adjuster for Pulse stretching and Dynamic/static operation. Operating voltage: 24 V DC ± 20 %. No-load supply current: < 70 mA. Switching type: dark-on. Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: 200 mA. Voltage drop: < 2.5 V. Switching frequency: 5000 Hz. Repeat accuracy: 0.1 mm. Pulse extension: 0.1 ... 150 ms. Product standard: EN 60947-5-2. Ambient temperature: -10 ... 60 °C (14 ... 140 °F). Degree of protection: IP67. Connection: M8 connector, 3-pin. Material: . Housingblack anodized aluminumOptical faceglass: . Housing: black anodized aluminum. Optical face: glass. Mass: 300 g. Dimensions: . Height110 mmWidth20 mmLength105 mm: . Height: 110 mm. Width: 20 mm. Length: 105 mm

Brand	Pepperl Fuchs
Lifecycle status	active
