RAVE-D

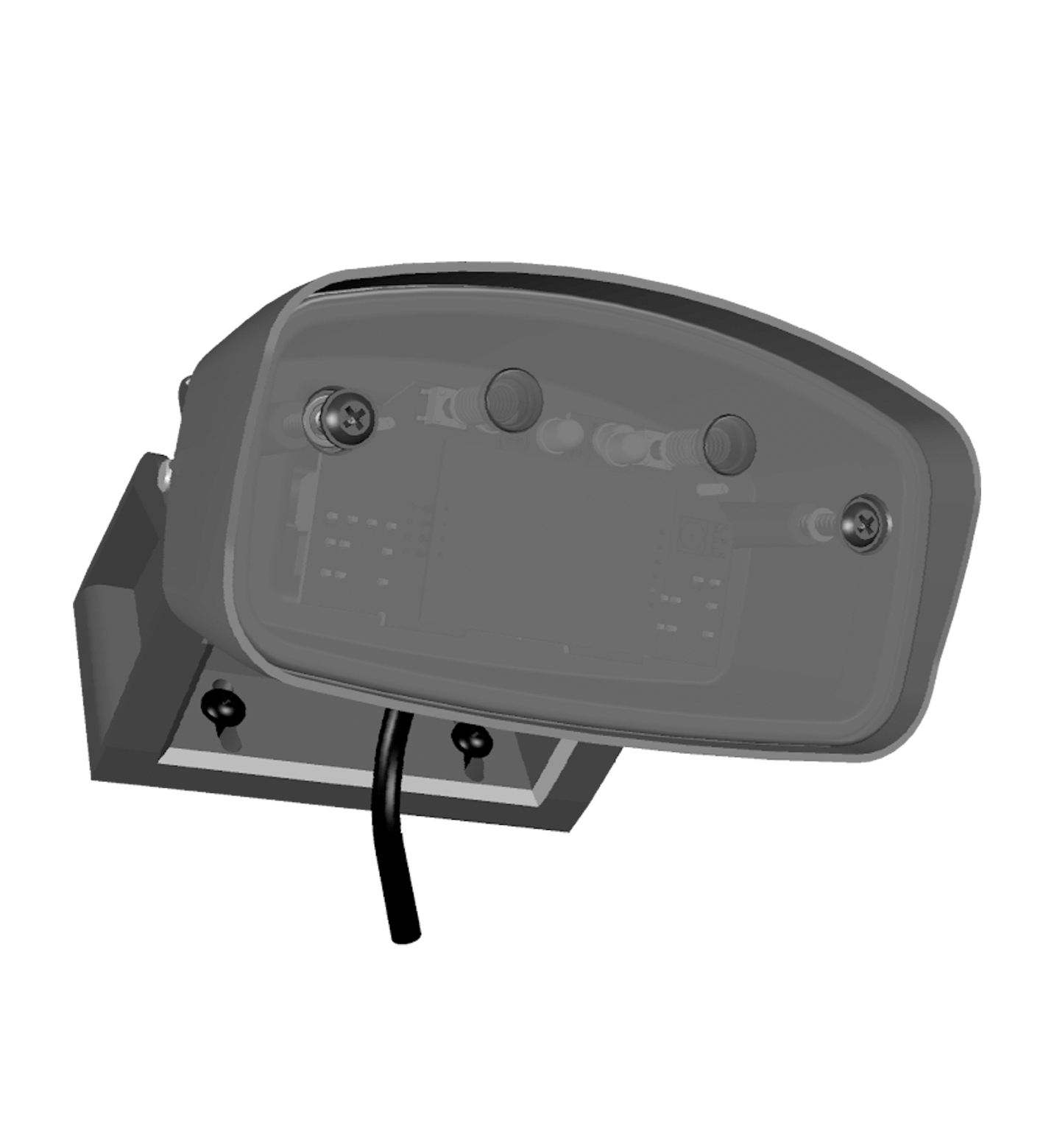

Radar sensor. Degree of protection IP67, Differentiated detection of people and vehicles, each with one output relay, Cross-traffic suppression and rotation direction monitoring, Simplified adjustment...

Radar sensor. Degree of protection IP67, Differentiated detection of people and vehicles, each with one output relay, Cross-traffic suppression and rotation direction monitoring, Simplified adjustment options via remote control or integrated push buttons, Wall and ceiling mountable, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 36 V DC , 12 ... 28 V AC, Signal output: 2 relay outputs, Connection: plug-in screw terminals 4-pin and 2-pin , 8 m connecting cable included with delivery. Sensing range: 9000 x 6500 mm (d x w) at installation height of 5000 mm and 45° angle 10000 x 5500 mm (d x w) at installation height of 7000 mm and 45° angle. Function principle: Microwave module. Detection speed: min. 0.1 m/s. Marking: CE. Setting angle: -90 ... 90 ° in 15 ° increments. Operating frequency: 24.15 ... 24.25 GHz K-Band. Operating mode: Radar motion sensor. Transmitter radiated power (EIRP): < 13 dBm. MTTFd: 620 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED red/green. Control elements: Programming push-button for selection of operating modes : direction detection , cross-traffic suppression , Vehicle detection , Switching type , relay hold time. Control elements: Programming via 2 keys , alternative via remote control (Accessories ordered separately). Operating voltage: 12 ... 36 V DC , 12 ... 28 V AC. No-load supply current: ≤ 50 mA at 24 V DC. Power consumption: ≤ 1 W. Switching type: NO/NC. Signal output: 2 relay outputs. Switching voltage: max. 48 V AC / 48 V DC. Switching current: max. 0.5 A AC / 1 A DC. Switching power: max. 24 W / 60 VA. De-energized delay: 0.5 ... 300 s adjustable. CE conformity: 2014/53/EU This device can be used in all countries within the EU including the United Kingdom. In other countries, all applicable national regulations must be observed.. Operating temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -30 ... 60 °C (-22 ... 140 °F). Relative humidity: max. 90 % non-condensing. Mounting height: 2500 ... 7000 mm. Degree of protection: IP67. Connection: plug-in screw terminals 4-pin and 2-pin , 8 m connecting cable included with delivery. Material: . HousingPolycarbonate (PC) , anthracite: . Housing: Polycarbonate (PC) , anthracite. Mass: 650 g. Dimensions: with Mounting bracket : 131 mm x 73 mm x 136 mm. Height73 mmWidth131 mmDepth98 mm: . Height: 73 mm. Width: 131 mm. Depth: 98 mm. Series: RAVE

Brand	Pepperl Fuchs
Lifecycle status	active
