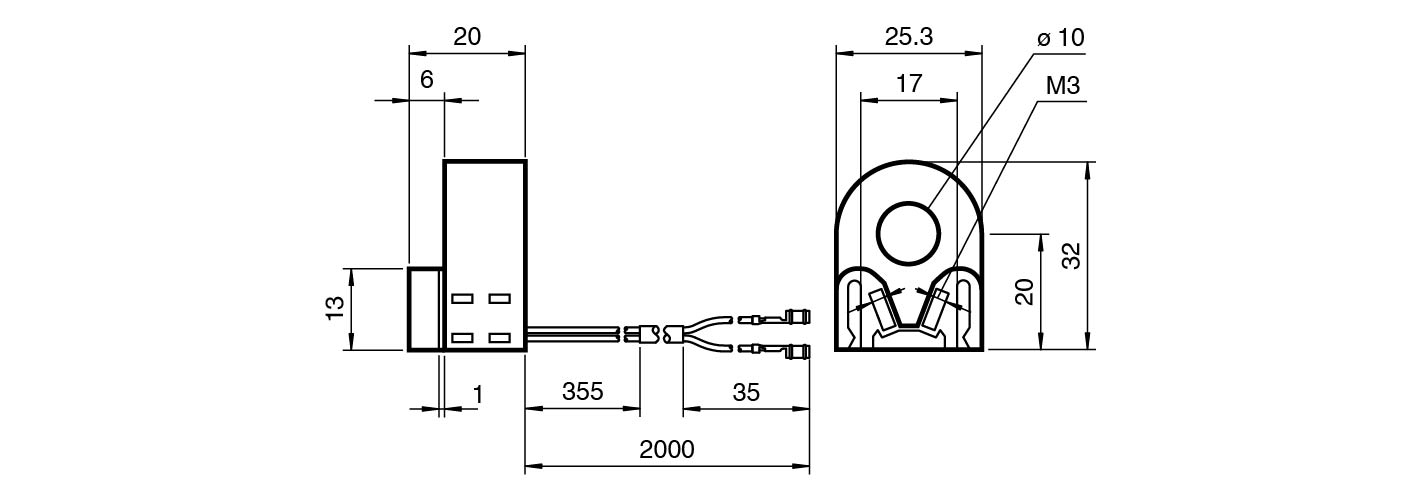

RC10-14-N0-Y187456

Inductive ring sensor. Switching function: Normally closed (NC), Output type: NAMUR, Output type: 2-wire, Construction type: Ring, Series: Ring Type, Type of voltage: DC, Equipment protection level Gb...

Inductive ring sensor. Switching function: Normally closed (NC), Output type: NAMUR, Output type: 2-wire, Construction type: Ring, Series: Ring Type, Type of voltage: DC, Equipment protection level Gb: PTB 99 ATEX 2128 X, Connection type: cable PVC , 2 m <BR>Crimp terminal sockets 60888-3, AMP, Housing material: PBT, Degree of protection: IP67. Switching function: Normally closed (NC). Output type: NAMUR. Inside diameter: 10 mm. Measuring cone: 4 mm, 1.4305 / AISI 303. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Operating voltage: 5 ... 25 V. Switching frequency: 0 ... 2000 Hz. Current consumption: . Measuring plate not detectedmin. 3 mA at maximum permissible ambient temperature, the current consumption can drop to 1.6 mAMeasuring plate detected≤ 1 mA at nominal voltage: . Measuring plate not detected: min. 3 mA at maximum permissible ambient temperature, the current consumption can drop to 1.6 mA. Measuring plate detected: ≤ 1 mA at nominal voltage. MTTFd: 6150 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. ATEX approval: . Equipment protection level GbPTB 99 ATEX 2128 X: . Equipment protection level Gb: PTB 99 ATEX 2128 X. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. Ambient temperature: -20 ... 65 °C (-4 ... 149 °F). Storage temperature: -40 ... 100 °C (-40 ... 212 °F). Connection type: cable PVC , 2 m Crimp terminal sockets 60888-3, AMP. Core cross section: 0.14 mm2. Housing material: PBT. Degree of protection: IP67. Cable: . Bending radius> 10 x cable diameter: . Bending radius: > 10 x cable diameter. Mass: 36 g. Dimensions: . Height32.5 mmWidth25 mmLength20 mm: . Height: 32.5 mm. Width: 25 mm. Length: 20 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
