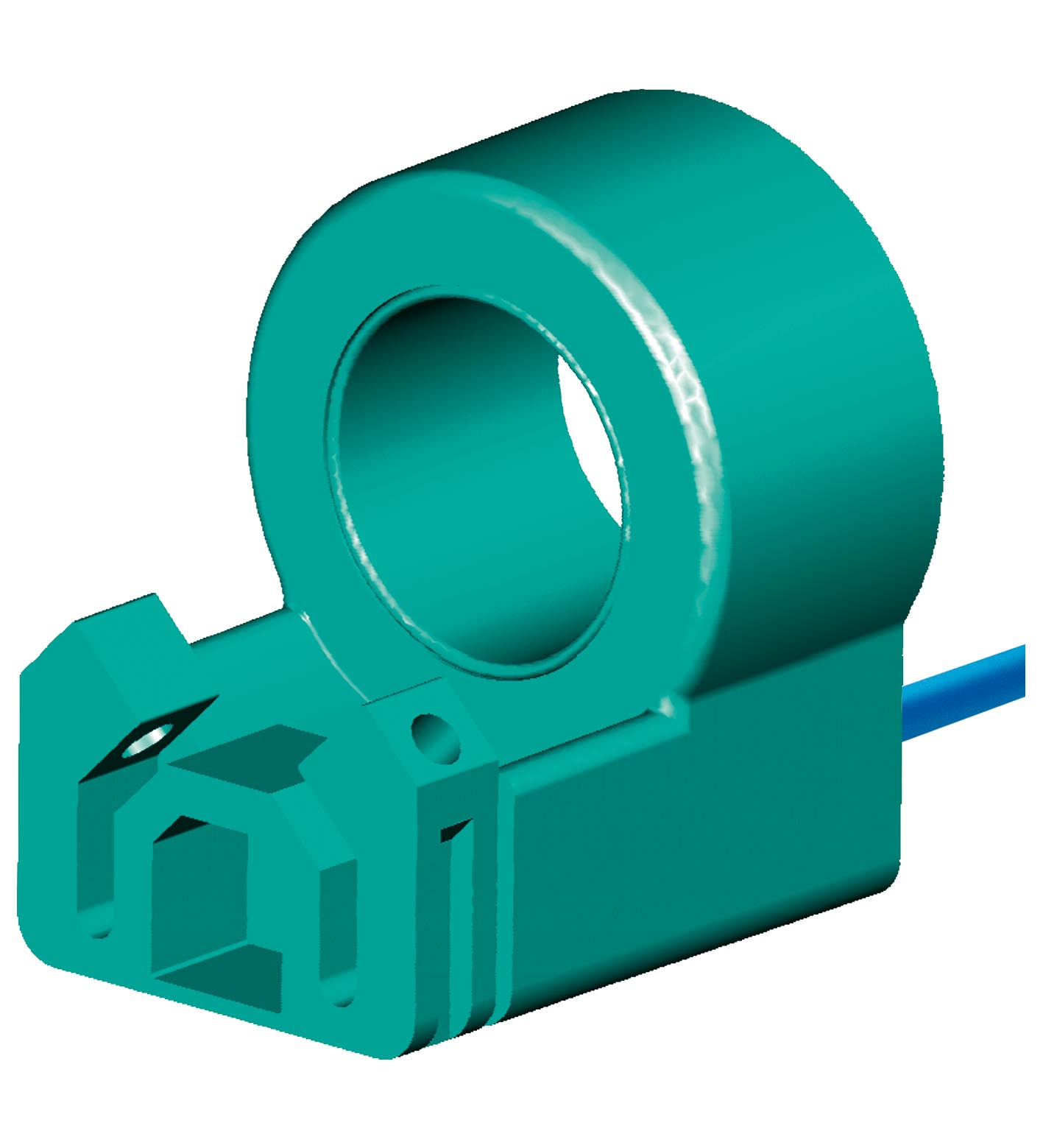

RC15-14-N3-Y115615

Inductive ring sensor. Switching function: Normally closed (NC), Output type: NAMUR, bistable, Output type: 2-wire, Construction type: Ring, Series: Ring Type, Type of voltage: DC, Equipment protectio...

Inductive ring sensor. Switching function: Normally closed (NC), Output type: NAMUR, bistable, Output type: 2-wire, Construction type: Ring, Series: Ring Type, Type of voltage: DC, Equipment protection level Gb: PTB 99 ATEX 2128 X, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC. Switching function: Normally closed (NC). Output type: NAMUR, bistable. Inside diameter: 15 mm. Measuring cylinder: . Diameter1/4" (6.250mm): . Diameter: 1/4" (6.250mm). Measuring cone: Carboloy. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Operating voltage: 5 ... 25 V. Hysteresis: typ. 1 %. Reverse polarity protection: reverse polarity protected. Current consumption: . Traverse B3 mAPassage B UB=8V≥ 3 mAPassage B UB=10V≥ 4.2 mATraverse A1 mAPassage A UB=10V0.5 ... 1 mA typ. 0.9 mAPassage A UB=8V0.5 ... 0.95 mA typ. 0.8 mA: . Traverse B: 3 mA. Passage B UB=8V: ≥ 3 mA. Passage B UB=10V: ≥ 4.2 mA. Traverse A: 1 mA. Passage A UB=10V: 0.5 ... 1 mA typ. 0.9 mA. Passage A UB=8V: 0.5 ... 0.95 mA typ. 0.8 mA. Time delay before availability: ≤ 5 ms. MTTFd: 2240 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Standards: EN IEC 60947-5-2. ATEX approval: . Equipment protection level GbPTB 99 ATEX 2128 X: . Equipment protection level Gb: PTB 99 ATEX 2128 X. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. Ambient temperature: 0 ... 40 °C (32 ... 104 °F). Connection type: cable. Housing material: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter2.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorblueNumber of cores2Core cross section0.14 mm2LengthL5 m: . Wire end ferrules: yes. Cable diameter: 2.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: blue. Number of cores: 2. Core cross section: 0.14 mm2. Length: 5 m. Dimensions: . Height32 mmWidth26 mmLength30 mm: . Height: 32 mm. Width: 26 mm. Length: 30 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
