RHI90N

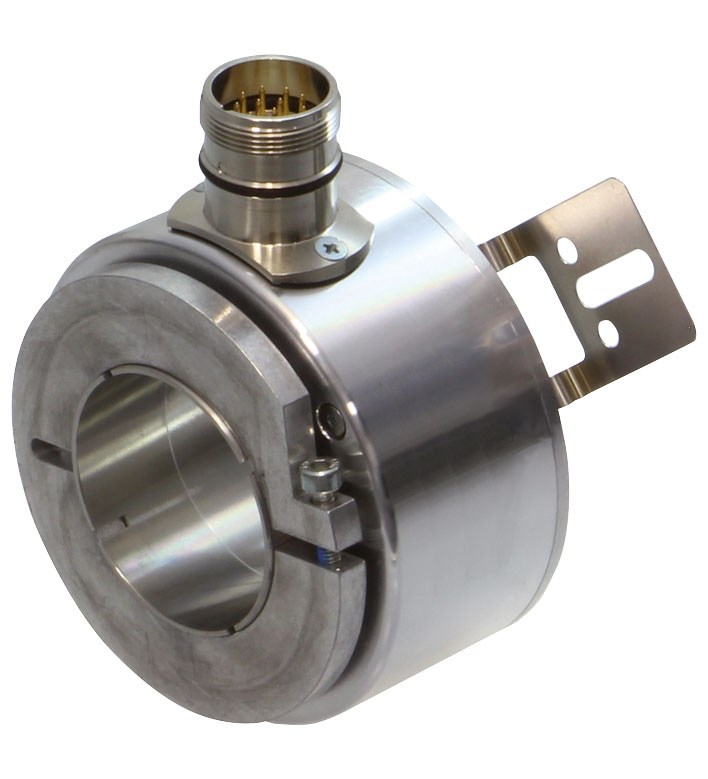

Incremental rotary encoder. Compact design housing ∅90 mm, Hollow shaft ∅45 mm, Easy shaft clamping, High resolution and accuracy, Enclosure type: 90 mm, Type of shaft: Hollow shaft, Interface: RS-422...

Incremental rotary encoder. Compact design housing ∅90 mm, Hollow shaft ∅45 mm, Easy shaft clamping, High resolution and accuracy, Enclosure type: 90 mm, Type of shaft: Hollow shaft, Interface: RS-422, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental <BR>(see "Output circuit" in the ordering information). Detection type: photoelectric sampling. Pulse count: max. 2500. MTTFd: 140 a. L10: 50 E+9 at 1750 rpm. Diagnostic Coverage (DC): 0 %. Operating voltage: 10 ... 30 V DC or 5 V DC ± 5 % (see "Output circuit" in the ordering information). No-load supply current: max. 70 mA. Output type: push-pull, incremental or RS-422, incremental (see "Output circuit" in the ordering information). Voltage drop: < 2.5 V (push-pull, incremental). Load current: max. per channel 40 mA , short-circuit protected, reverse polarity protected (push-pull, incremental) max. per channel 20 mA , short-circuit protected, reverse polarity protected (RS 422, incremental). Output frequency: max. 200 kHz. Rise time: 600 ns. De-energized delay: 600 ns. Connector: type 9416 (M23), 12-pin, type 9416L (M23), 12-pin. Cable: ∅6.5 mm, 4 x 2 x 0.14 mm2, 1 m. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-78. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. UL approval: E223176 , cULus Listed, General Purpose, Class 2 Power Source. Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). Operating temperature: -5 ... 70 °C (23 ... 158 °F) , cable, movable installation-20 ... 70 °C (-4 ... 158 °F), cable, fixed installation. Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Material: . Housingaluminum, blankFlange3.1645 aluminumShaftStainless steel 1.4305 / AISI 303: . Housing: aluminum, blank. Flange: 3.1645 aluminum. Shaft: Stainless steel 1.4305 / AISI 303. Mass: approx. 900 g. Rotational speed: max. 3500 min -1. Starting torque: ≤ 18 Ncm. Shaft load: . Angle offset1 °Axial offsetmax. 1 mm: . Angle offset: 1 °. Axial offset: max. 1 mm. Dimensions: . Length48.5 mmDiameter87.1 mm: . Length: 48.5 mm. Diameter: 87.1 mm

Brand	Pepperl Fuchs
Lifecycle status	active
