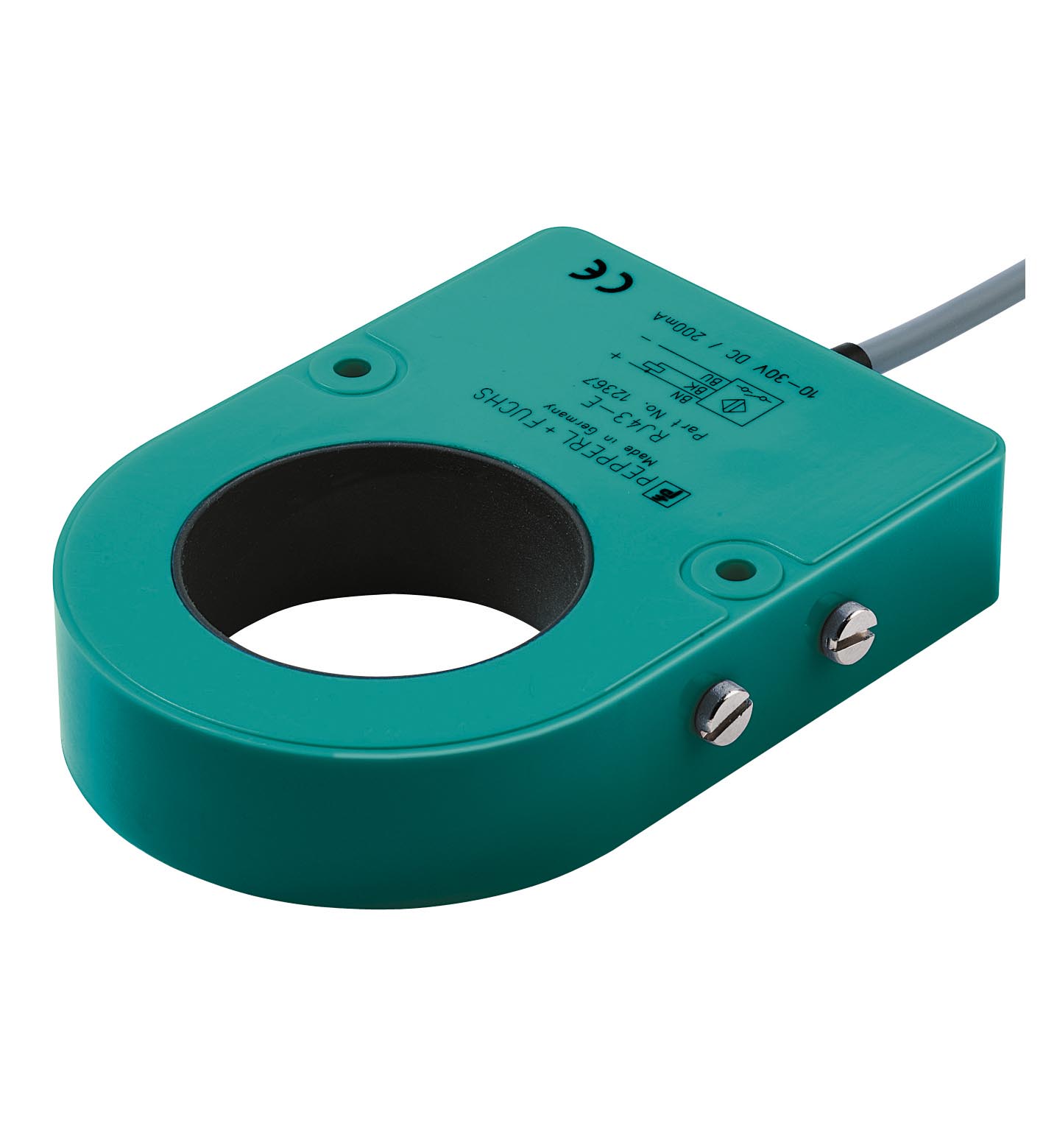

RJ43-E2

Inductive ring sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Ring, Series: Ring Type, Operating voltage: 10 ... 30 V DC...

Inductive ring sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Ring, Series: Ring Type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Output polarity: DC. Inside diameter: 43 mm. Measuring cylinder: . Diameter9 mmLength18 mmMaterial9S20K: . Diameter: 9 mm. Length: 18 mm. Material: 9S20K. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 500 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 20 mA. MTTFd: 1326 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.6 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores3Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.6 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height100 mmWidth70 mmLength20 mm: . Height: 100 mm. Width: 70 mm. Length: 20 mm

Brand	Pepperl Fuchs
Lifecycle status	active
