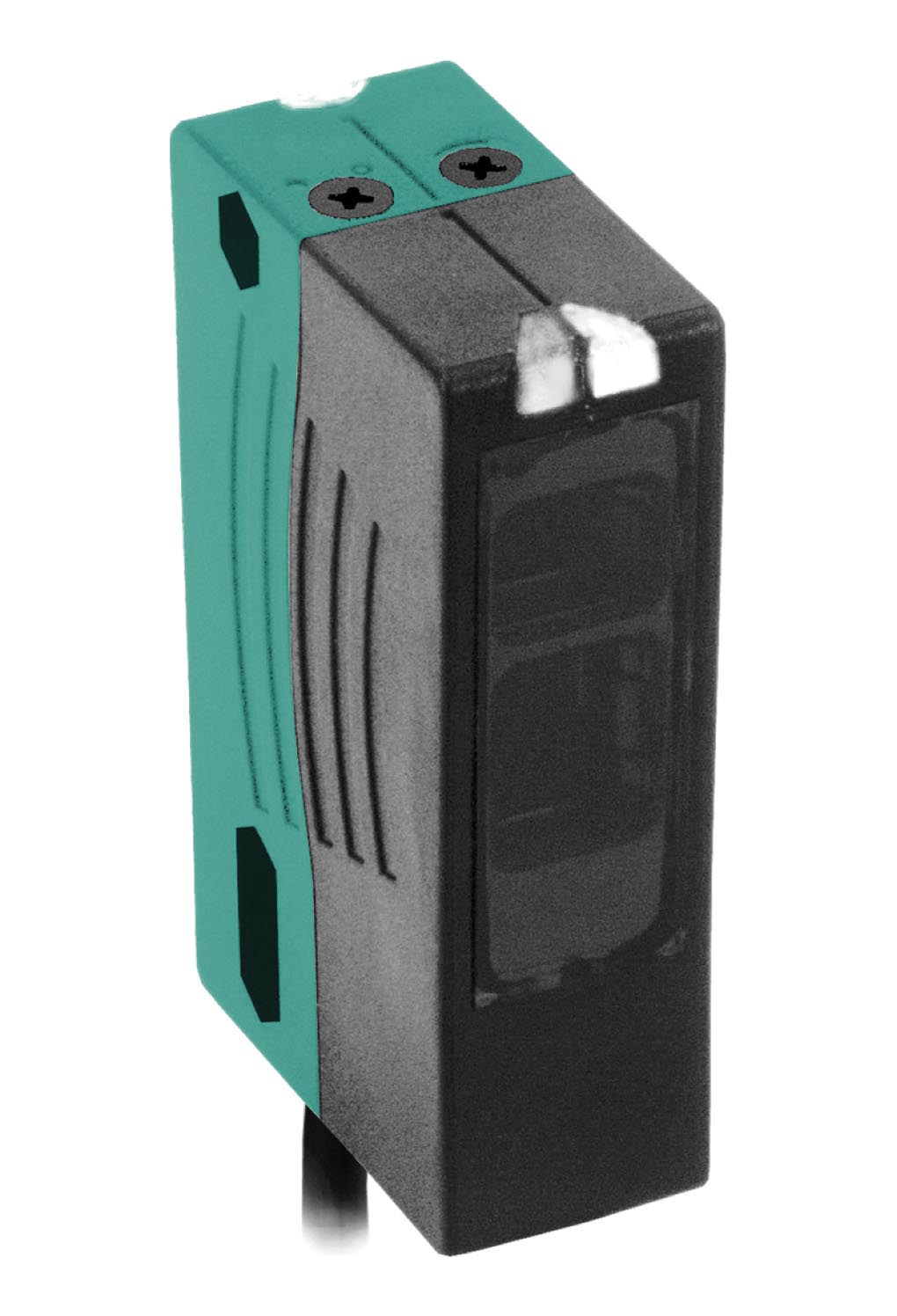

RL28-55-2547/47

Retroreflective sensor. Retroreflective sensor with polarization filter, Sensing range up to 16 m, Clearly visible LEDs for Power ON, switching state and weak signal indication, Antivalent outputs, Se...

Retroreflective sensor. Retroreflective sensor with polarization filter, Sensing range up to 16 m, Clearly visible LEDs for Power ON, switching state and weak signal indication, Antivalent outputs, Sensitivity adjuster and light-on/dark-on changeover switch as standard features of this series, Not sensitive to ambient light, even with energy saving lamps. Effective detection range: 0 ... 17 m. Reflector distance: 0.05 ... 17 m. Threshold detection range: 21 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light , 660 nm. Polarization filter: yes. Diameter of the light spot: approx. 290 mm at a distance of 17 m. Opening angle: emitter 1.2°receiver 2°. Ambient light limit: 80000 Lux. MTTFd: 950 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow, light up when light beam is free, flash when falling short of the operating reserve, are off when light beam is interrupted. Control elements: sensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 40 mA. Switching type: light/dark on switchable. Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. EAC conformity: TR CU 020/2011. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Degree of protection: IP67. Connection: fixed cable 230 mm with M12 x 1 male connector, 4-pin. Material: . HousingPlastic ABSOptical faceplastic: . Housing: Plastic ABS. Optical face: plastic. Mass: 70 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
