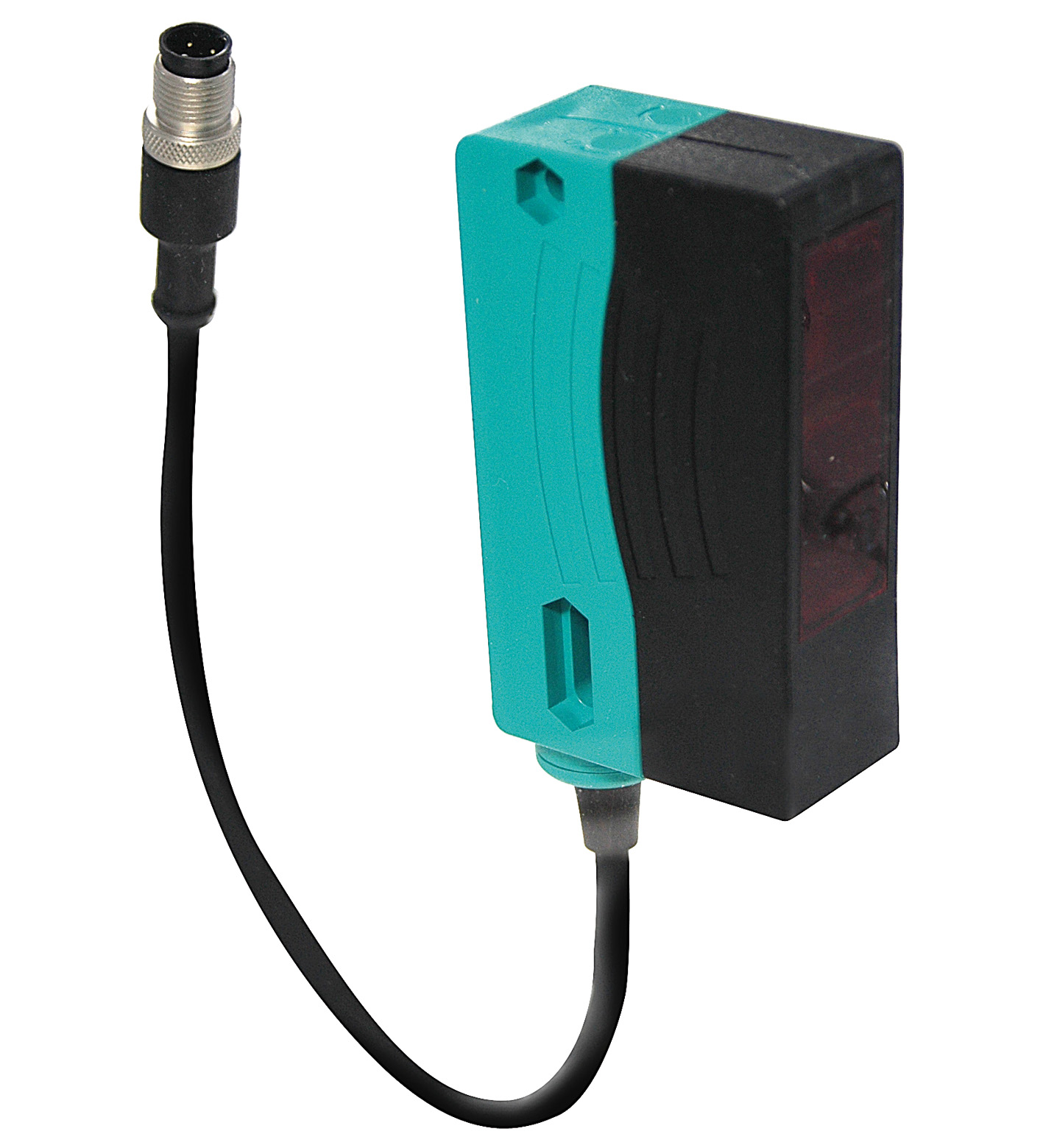

RL28-55-3018/35/44/47/115b
Retroreflective sensor. Retroreflective sensor with polarization filter, Clearly visible LEDs for Power ON, switching state and weak signal indication, Not sensitive to ambient light, even with switch...
Retroreflective sensor. Retroreflective sensor with polarization filter, Clearly visible LEDs for Power ON, switching state and weak signal indication, Not sensitive to ambient light, even with switched energy saving lamps, Waterproof, degree of protection IP67, Protection class II. Effective detection range: 0 ... 20 m. Reflector distance: 0.05 ... 20 m. Threshold detection range: 26 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light , 660 nm. Polarization filter: yes. Diameter of the light spot: approx. 350 mm at a distance of 20 m. Opening angle: emitter 1.2°receiver 2°. Ambient light limit: 80000 Lux. MTTFd: 950 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow, light up when light beam is free, flash when falling short of the operating reserve, are off when light beam is interrupted. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 40 mA. Switching type: light-on. Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 250 Hz. Response time: 2 ms. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Degree of protection: IP67. Connection: with 0.3 m fixed cable and M12 connector, 4-pin. Material: . HousingPlastic ABSOptical faceplastic: . Housing: Plastic ABS. Optical face: plastic. Mass: 70 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
