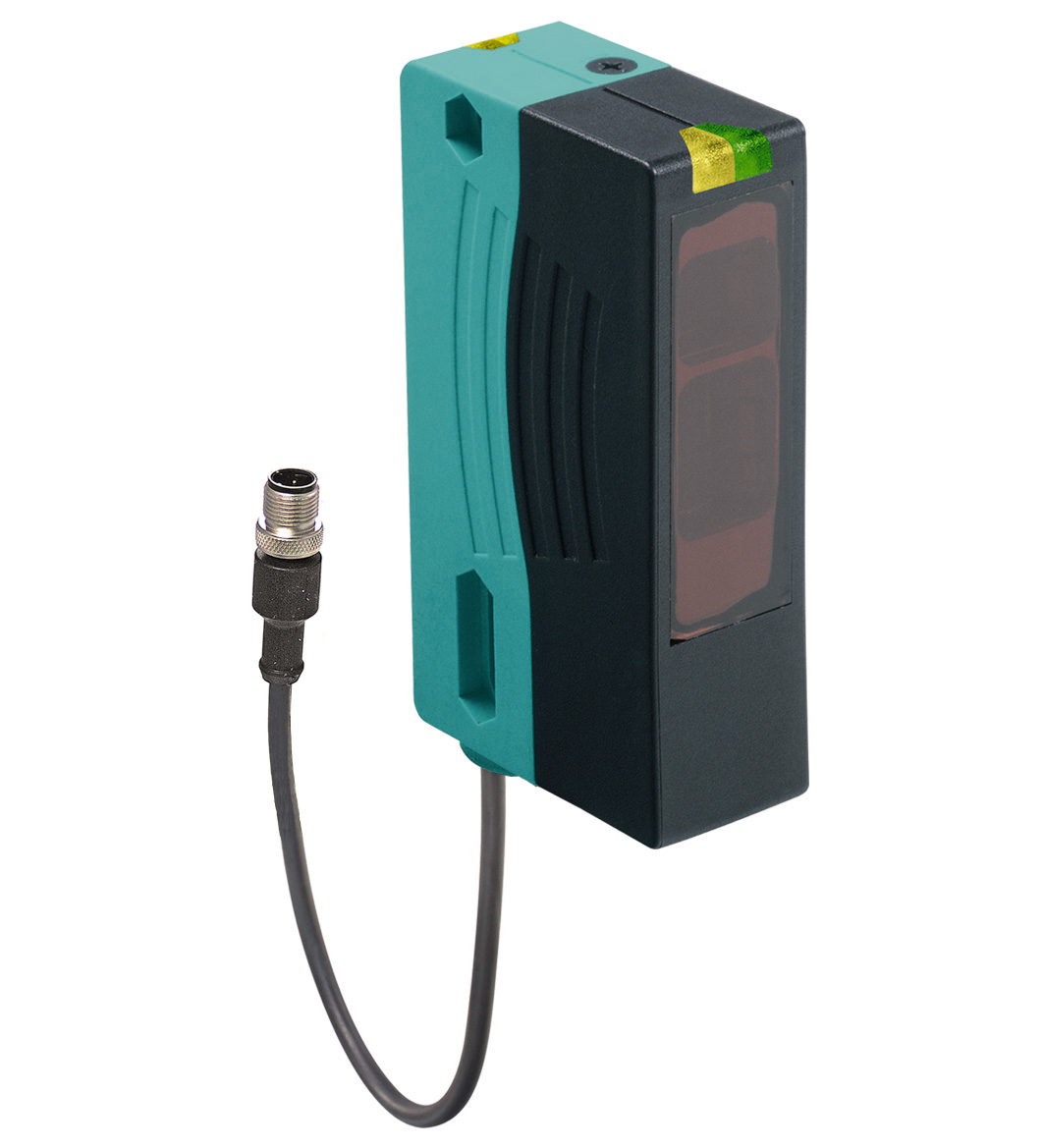

RL28-55-LAS-2840/47/115b

Retroreflective sensor. Retroreflective sensor with polarization filter, Visible red light, pulsed LASER light, High operating range, Ultra bright LEDs for power on, weak signal indication and switchi...

Retroreflective sensor. Retroreflective sensor with polarization filter, Visible red light, pulsed LASER light, High operating range, Ultra bright LEDs for power on, weak signal indication and switching state, Not sensitive to ambient light, even with switched energy saving lamps, Protection class II. Effective detection range: 0 ... 30 m. Reflector distance: 0.3 ... 30 m. Threshold detection range: 42 m. Reference target: MH82 reflector. Light source: laser diode. Light type: modulated visible red light. Polarization filter: yes. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length650 nmBeam divergence< 1.5 mradPulse lengthapprox. 4.5 µsRepetition rateapprox. 6 kHz ... 20 kHzmax. pulse energy4 nJ: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 650 nm. Beam divergence: < 1.5 mrad. Pulse length: approx. 4.5 µs. Repetition rate: approx. 6 kHz ... 20 kHz. max. pulse energy: 4 nJ. Diameter of the light spot: approx. 45 mm at 30 m. Opening angle: Emitter: < 0.1 ° Receiver: < 2 °. Ambient light limit: 50000 Lux. MTTFd: 560 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow, light up when light beam is free, flash when falling short of the operating reserve, are off when light beam is interrupted. Control elements: sensitivity adjustment (Adjustment to < 25% of the effective operating range). Operating voltage: 10 ... 30 V DC. Ripple: max. 10 %. No-load supply current: ≤ 35 mA. Protection class: II, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. Switching type: light-on. Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Voltage drop: ≤ 2.5 V DC. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. Laser safety: IEC 60825-1:2014. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. FDA approval: IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3 as described in Laser Notice 56, dated May 8, 2019.. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Degree of protection: IP67. Connection: fixed cable 230 mm with M12 x 1 male connector, 4-pin. Material: . HousingPlastic ABSOptical facePlastic pane: . Housing: Plastic ABS. Optical face: Plastic pane. Mass: 80 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
