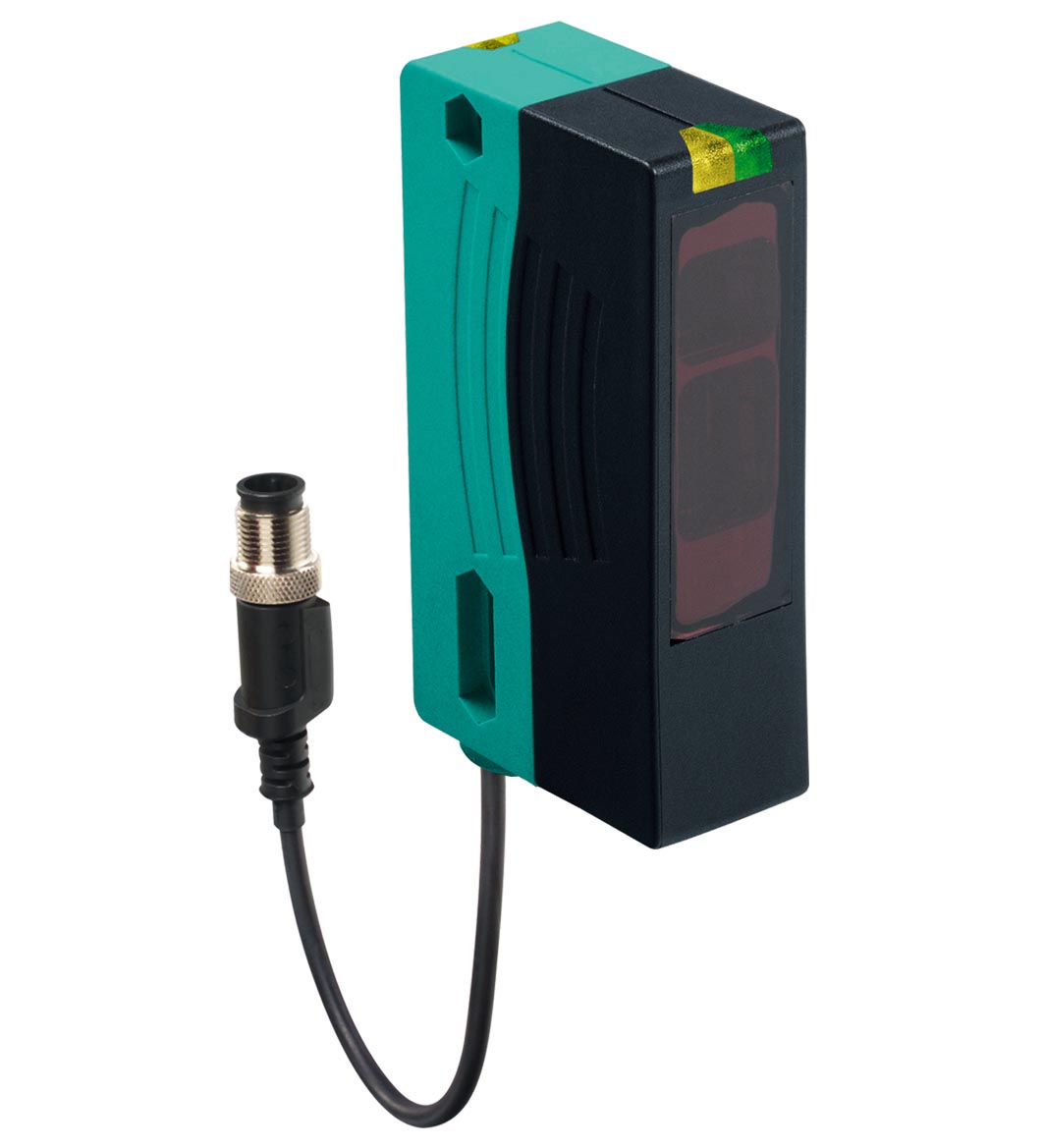

RL28-55-V-3018

Retroreflective sensor. Retroreflective sensor with polarization filter with foreground suppression, Ultra bright LEDs for power on, weak signal indication and switching state, Not sensitive to ambien...

Retroreflective sensor. Retroreflective sensor with polarization filter with foreground suppression, Ultra bright LEDs for power on, weak signal indication and switching state, Not sensitive to ambient light, even with switched energy saving lamps, Waterproof, degree of protection IP67, Protection class II. Effective detection range: 0 ... 8 m. Reflector distance: 0.5 ... 8 m (blind range 0 ... 0.2 m faded out). Threshold detection range: 12 m. Reference target: H60 reflector 40 mm x 60 mm. Light source: LED. Light type: modulated visible red light , 660 nm. Polarization filter: yes. Diameter of the light spot: approx. 160 mm at a distance of 8 m. Opening angle: emitter 1.2°receiver 2°. Ambient light limit: 80000 Lux. MTTFd: 690 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow, light up when light beam is free, flash when falling short of the operating reserve, are off when light beam is interrupted. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 40 mA. Switching type: light-on. Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 1000 Hz. Response time: 0.5 ms. Product standard: EN 60947-5-2. EAC conformity: TR CU 020/2011. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Degree of protection: IP67. Connection: with 0.3 m fixed cable and M12 connector, 4-pin. Material: . HousingPlastic ABSOptical faceplastic: . Housing: Plastic ABS. Optical face: plastic. Mass: 70 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
