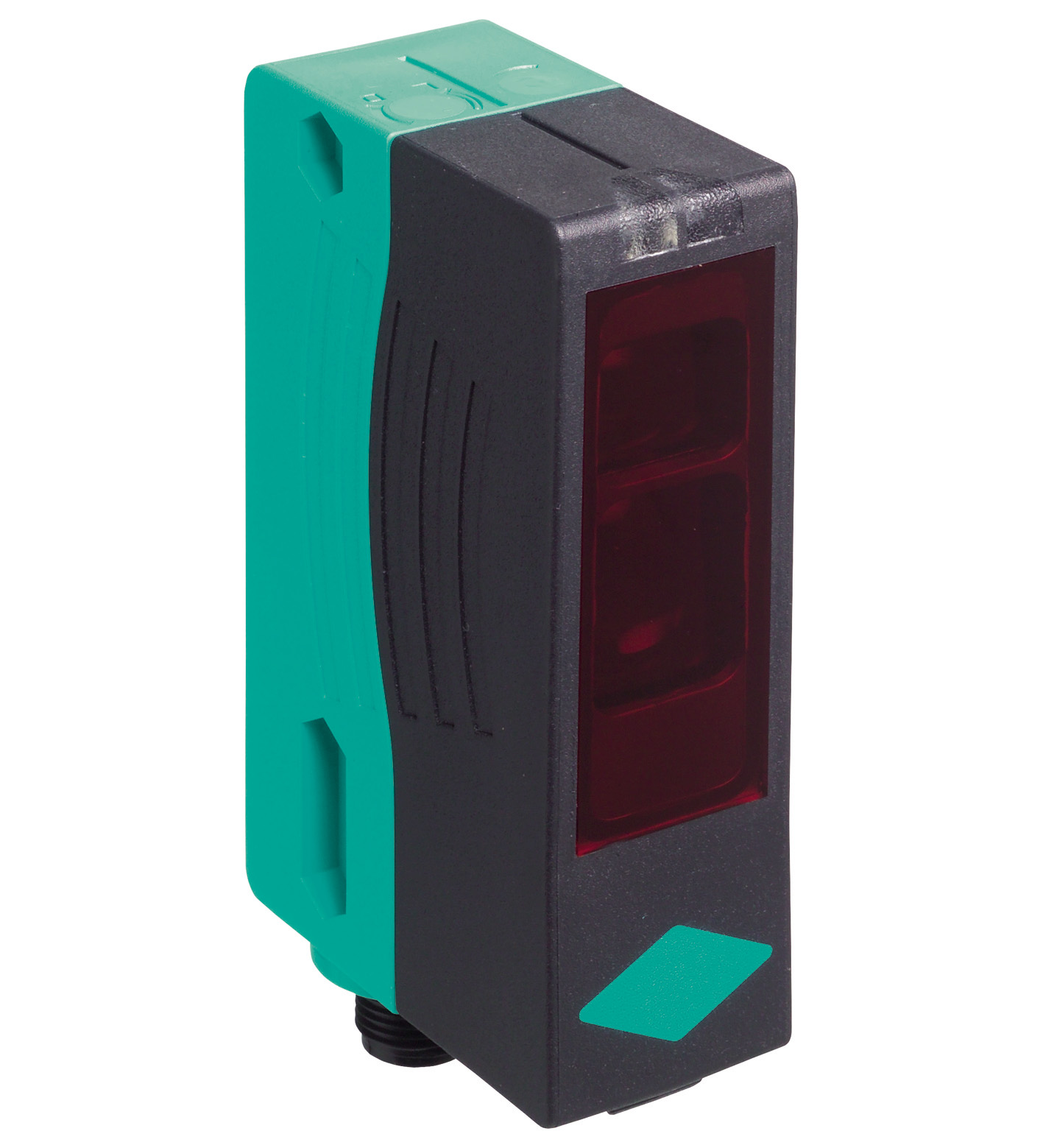

RL29-55/73c/136

Retroreflective sensor. Retroreflective sensor with polarization filter, Highly visible LED, Powerful push-pull output, Optimal price/power ratio, Protection class II. Effective detection range: 0.1 ....

Retroreflective sensor. Retroreflective sensor with polarization filter, Highly visible LED, Powerful push-pull output, Optimal price/power ratio, Protection class II. Effective detection range: 0.1 ... 7 m. Threshold detection range: 10 m. Reference target: H85 reflector. Light source: LED, 660 nm. Light type: modulated visible red light. Polarization filter: yes. Diameter of the light spot: approx. 150 mm at a distance of 7 m. Opening angle: Emitter: 1.2 ° , Receiver: 2 °. Ambient light limit: 80000 Lux. MTTFd: 1982.2 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow, light with free light beam , flashes when falling short of the operating reserve. Operating voltage: 10 ... 30 V DC , class 2. Ripple: 10 %. No-load supply current: ≤ 30 mA. Switching type: dark-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 500 Hz. Response time: 1 ms. Product standard: EN 60947-5-2. EAC conformity: TR CU 020/2011. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure). Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: Plastic connector M12 x 1, 4-pin. Material: . HousingPlastic ABSOptical faceplastic: . Housing: Plastic ABS. Optical face: plastic. Mass: 70 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
