Pepperl Fuchs

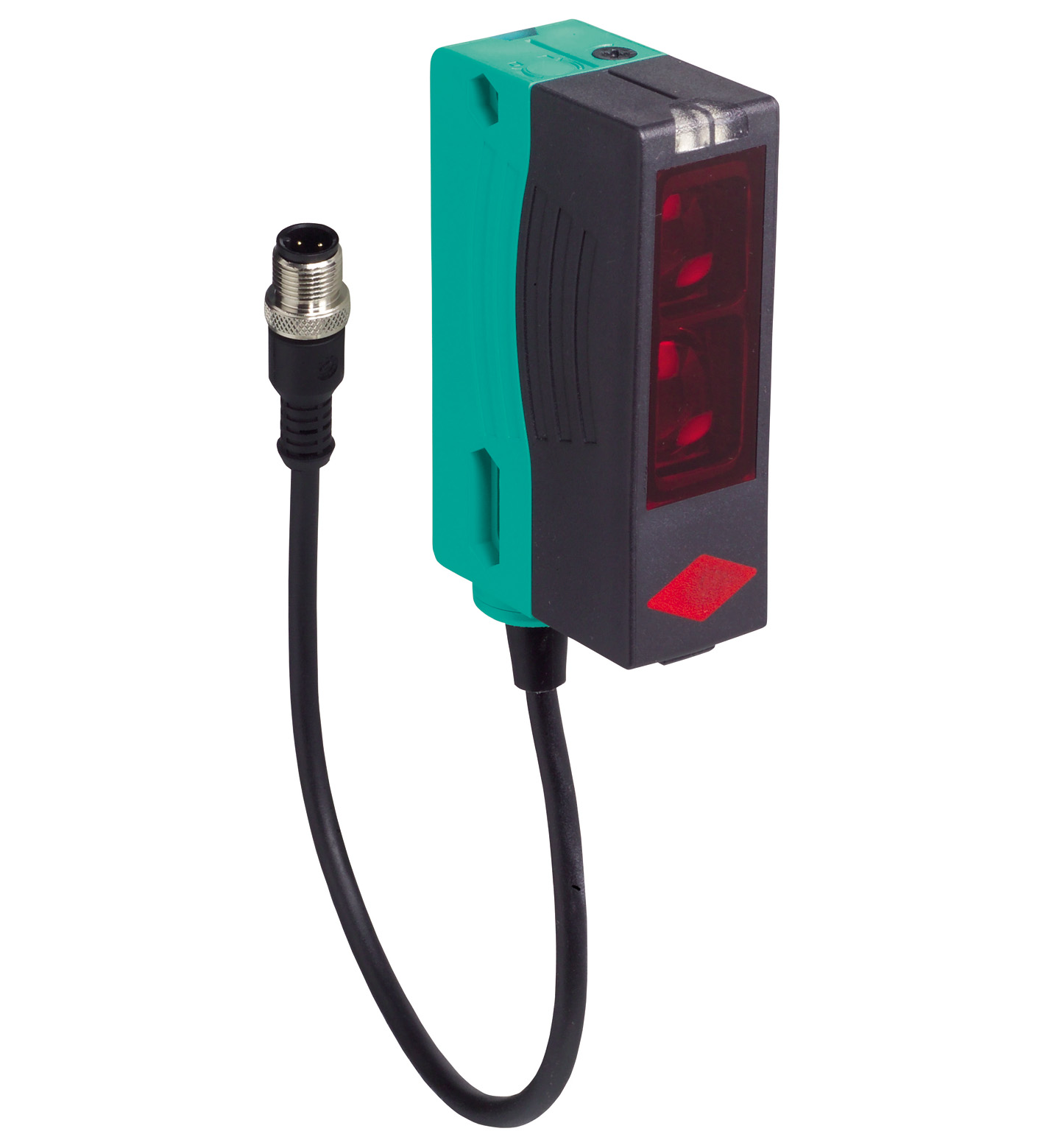

RL29-8-H-1200-RT/115b/136

Background suppression sensor. Background suppression sensor, Highly visible LED, Good alignability due to red transmission LED, Minimal black-white difference, Powerful push-pull output, Optimal price/power ratio. Detection range: 30 ... 1200 mm , adjustable. Detection range min.: 20 ... 200 mm. Detection range max.: 30 ... 1200 mm. Background suppression: max. + 10 % of the upper limit of the detection range. Light source: LED 660 nm. Light type: modulated visible red light. Black-white difference (6 %/90 %): < 35 % at 1200 mm sensor range. Diameter of the light spot: approx. 25 mm at a distance of 1200 mm. Opening angle: Emitter: 1.2 ° , Receiver: 2 °. Ambient light limit: 50000 Lux. MTTFd: 720 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow: switching state. Control elements: Sensing range adjuster. Operating voltage: 10 ... 30 V DC , class 2. Ripple: 10 %. No-load supply current: ≤ 40 mA. Switching type: light-on. Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Switching frequency: 125 Hz. Response time: 4 ms. Product standard: EN 60947-5-2. Protection class: II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: E87056 , cULus Listed , class 2 power supply , type rating 1. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 75 °C (-40 ... 167 °F). Degree of protection: IP65. Connection: with 0.2 m fixed cable and 4-pin, M12 connector. Material: . HousingPlastic ABSOptical faceplastic: . Housing: Plastic ABS. Optical face: plastic. Mass: 90 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
