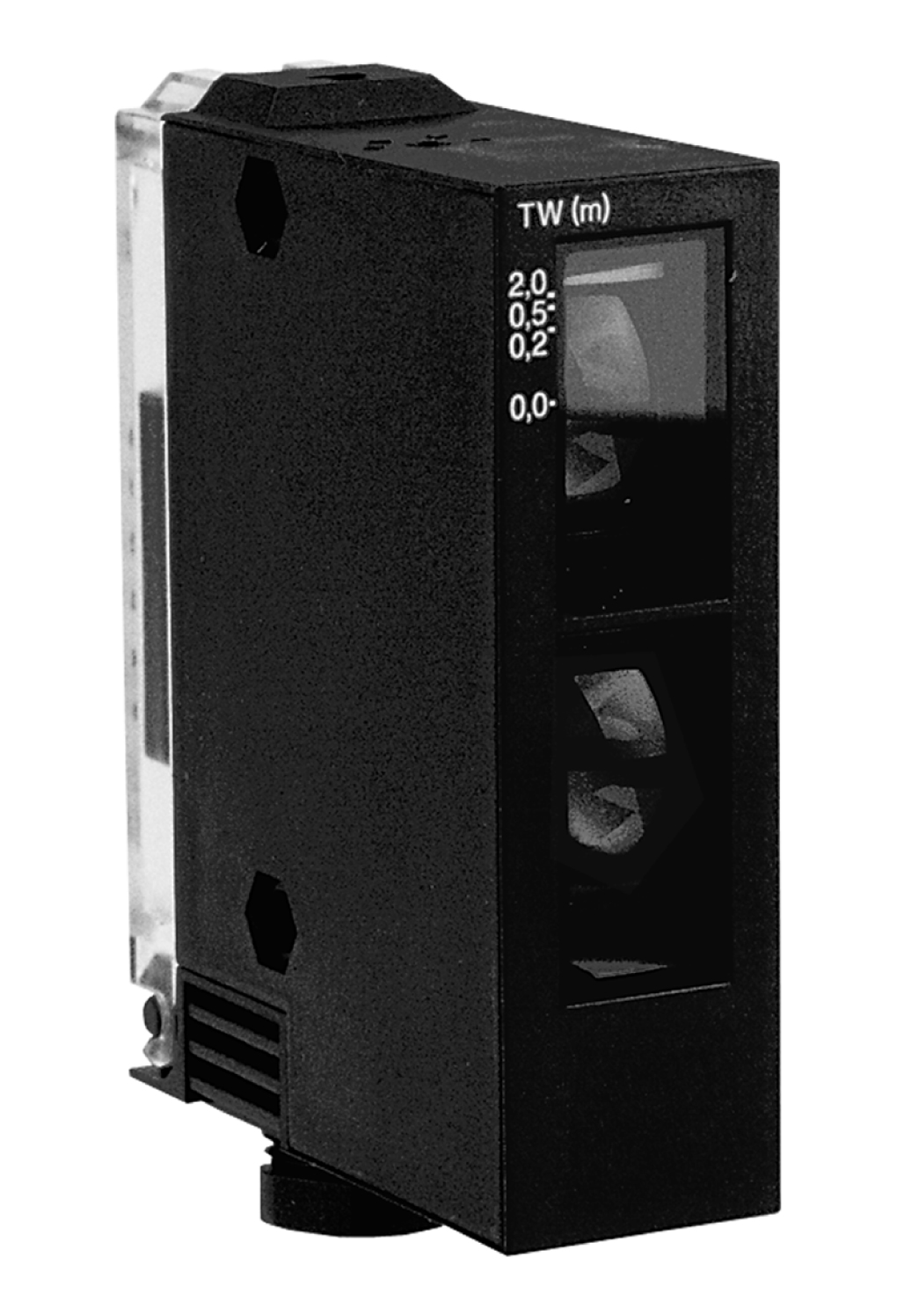

RLK23/RT-BHMS 5

Background suppression sensor. Background suppression sensor, Adjustable background suppression, Visible red light, Sturdy plastic housing, Optical surface made of scratch-resistant glass. Detection...

Background suppression sensor. Background suppression sensor, Adjustable background suppression, Visible red light, Sturdy plastic housing, Optical surface made of scratch-resistant glass. Detection range: 50 ... 500 mm. Detection range min.: 50 ... 150 mm. Detection range max.: 50 ... 500 mm. Light source: LED. Light type: modulated visible red light. Black-white difference (6 %/90 %): < 5 %. Diameter of the light spot: 12 mm at 500 mm sensor range. Opening angle: 1.5 °. Ambient light limit: 12000 Lux. MTTFd: 850 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow, lights up with receiver lit. Control elements: Programming switch for light/dark switching. Control elements: Sensing range adjuster. Operating voltage: 12 ... 240 V AC/DC (automatic adaption to +UB). Power consumption: 3 VA. Switching type: light/dark on switchable. Signal output: 1 relay, 1 alternator. Switching voltage: max. 240 V AC. Switching current: max. 2 A. Switching frequency: 10 Hz. Response time: 50 ms. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP65. Connection: 5-pin V95 connector (7/8"-16 UN 2A). Material: . HousingTerluran® GV15Optical faceglass: . Housing: Terluran® GV15. Optical face: glass. Mass: 180 g. Dimensions: . Height91 mmWidth26.8 mmDepth67.6 mm: . Height: 91 mm. Width: 26.8 mm. Depth: 67.6 mm

Brand	Pepperl Fuchs
Lifecycle status	active
