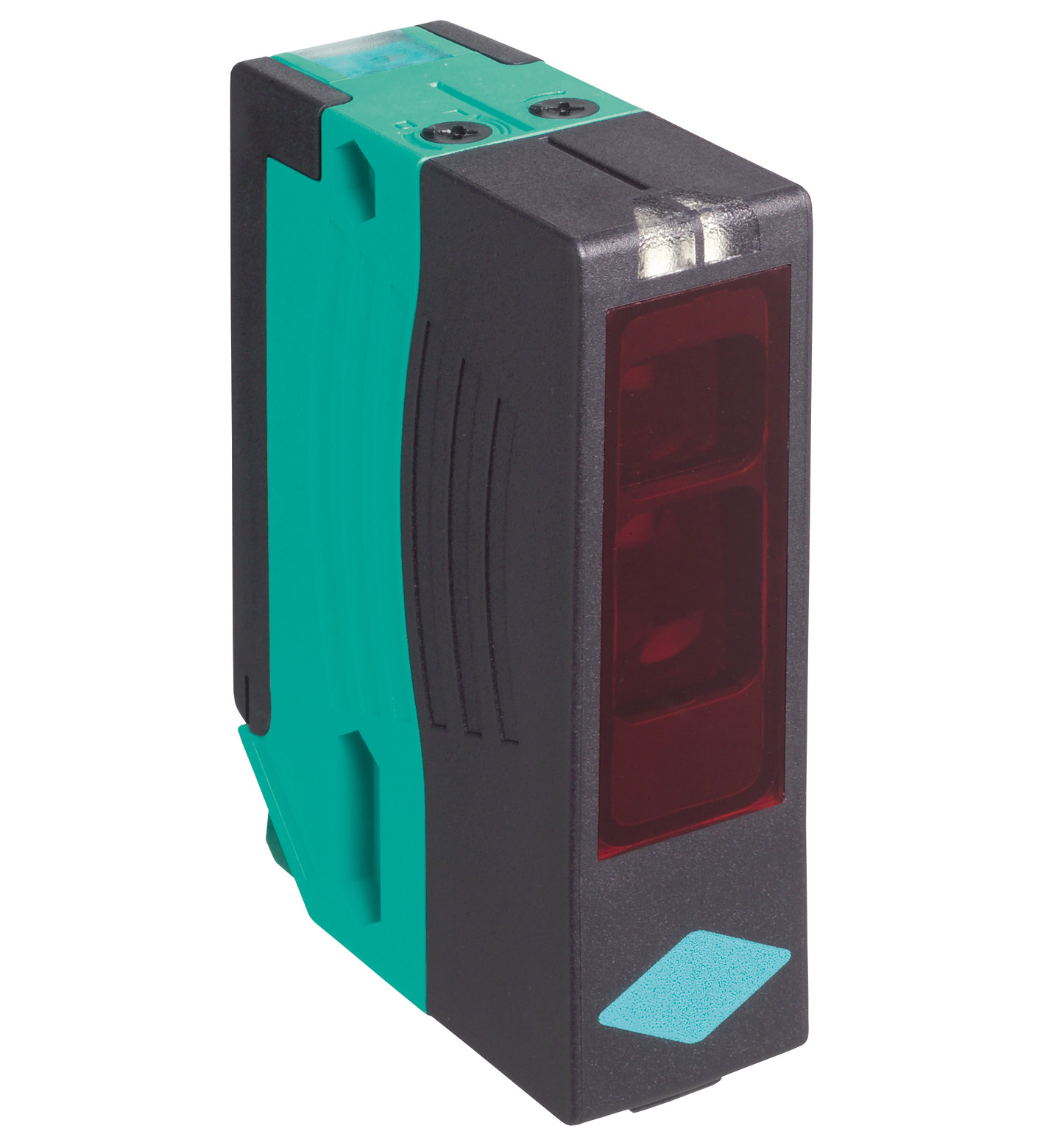

RLK28-55/31/116
Retroreflective sensor. Retroreflective sensor with polarization filter, Universal series with highly versatile fields of use, Resistant against noise: reliable operation under all conditions, Version...
Retroreflective sensor. Retroreflective sensor with polarization filter, Universal series with highly versatile fields of use, Resistant against noise: reliable operation under all conditions, Version with red light, Version with relay output. Effective detection range: 0 ... 17 m. Reflector distance: 0.05 ... 17 m. Threshold detection range: 21 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light. Polarization filter: yes. Diameter of the light spot: approx. 290 mm at a distance of 17 m. Opening angle: emitter 1.2°receiver 2°. Ambient light limit: 80000 Lux. MTTFd: 600 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green. Function indicator: 2 LEDs yellow, light up when light beam is free, flash when falling short of the operating reserve, are off when light beam is interrupted. Control elements: sensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch. Operating voltage: 12 ... 240 V AC/DC. Power consumption: ≤ 3.5 VA. Switching type: light/dark on switchable. Signal output: Relay, 1 alternator. Switching voltage: max. 250 V AC/DC. Switching current: max. 2 A. Switching power: DC: max. 50 W AC: max. 500 VA. Switching frequency: 25 Hz. Response time: 20 ms. Product standard: EN 60947-5-2. Protection class: II, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit insulated from control circuit in accordance with IEC 61140.Caution!The protection class 2 is only valid when the terminal compartment is closed.. UL approval: E87056 , cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508.. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 60 °C (-40 ... 140 °F). Degree of protection: IP67. Connection: terminal compartment with 8 spring-loaded terminals for wire cross section 0.5 ... 1.5 mm2 , Insulation stripping 7.5 ... 8.5 mm , M16 x 1.5 cable gland. Material: . HousingplasticOptical facePlastic pane: . Housing: plastic. Optical face: Plastic pane. Mass: 112 g. Dimensions: . Height88 mmWidth25.8 mmDepth65.5 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 65.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
