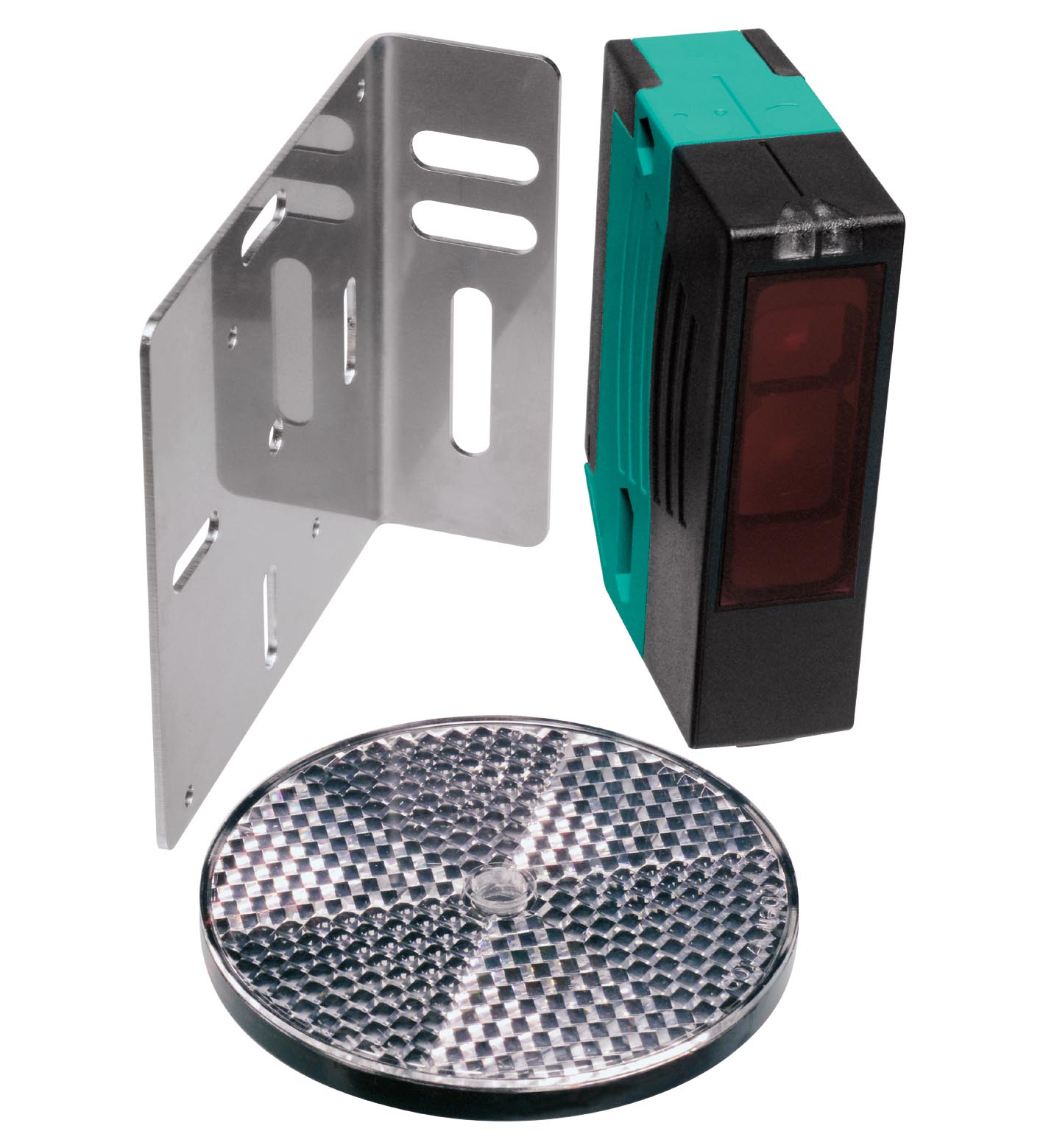

RLK29-55/59/116-Set

Retroreflective sensor. Robust, compact photoelectric sensor for single-beam gate protection, Not sensitive to ambient light, even with energy saving lamps, Tamper-proof, no operating controls, Versio...

Retroreflective sensor. Robust, compact photoelectric sensor for single-beam gate protection, Not sensitive to ambient light, even with energy saving lamps, Tamper-proof, no operating controls, Version for universal voltages, Relay output, Light source: LED, Light type: modulated visible red light , 640 nm, Operating voltage: 24 ... 230 V AC/DC, Switching type: dark-on, Signal output: Relay, 1 alternator. Effective detection range: 0 ... 12 m. Reflector distance: 0.04 ... 12 m. Threshold detection range: 14 m. Reference target: reflector C110-2. Light source: LED. Light type: modulated visible red light , 640 nm. Diameter of the light spot: approx. 35 mm at a distance of 12 m. Opening angle: ± 1 °. Ambient light limit: 90000 Lux. Accessories provided: reflector C110-2 , Mounting bracket with mounting materials. MTTFd: 1460 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED redilluminates: when beam is freeflashes: when level falls below operating reserveoff: when beam is interrupted. Operating voltage: 24 ... 230 V AC/DC. Ripple: 10 %. No-load supply current: ≤ 8.5 mA. Power consumption: 0.2 W at 24 V DC , 1.8 W at 230 V AC 3 VA. Switching type: dark-on. Signal output: Relay, 1 alternator. Switching voltage: 230 V AC. Switching current: max. 2 A. Switching frequency: 7 Hz. Response time: 50 ms. Product standard: EN 60947-5-2. CE conformity: yes. UL approval: cULus Listed Caution: This equipment is considered as open-type equipment. It must be mounted within an enclosure, that is suitably designed for protection against internal fire and personal injury resulting from accessibility to live parts according UL 508.. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP64. Connection: terminal compartment. Material: . HousingPlastic ABS, flame resistantOptical facePlastic pane: . Housing: Plastic ABS, flame resistant. Optical face: Plastic pane. Mass: 100.7 g. Dimensions: . Height88 mmWidth25.8 mmDepth65.5 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 65.5 mm. Note: Safety fuse ≤ 2 A (slow-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly.

Brand	Pepperl Fuchs
Lifecycle status	active
