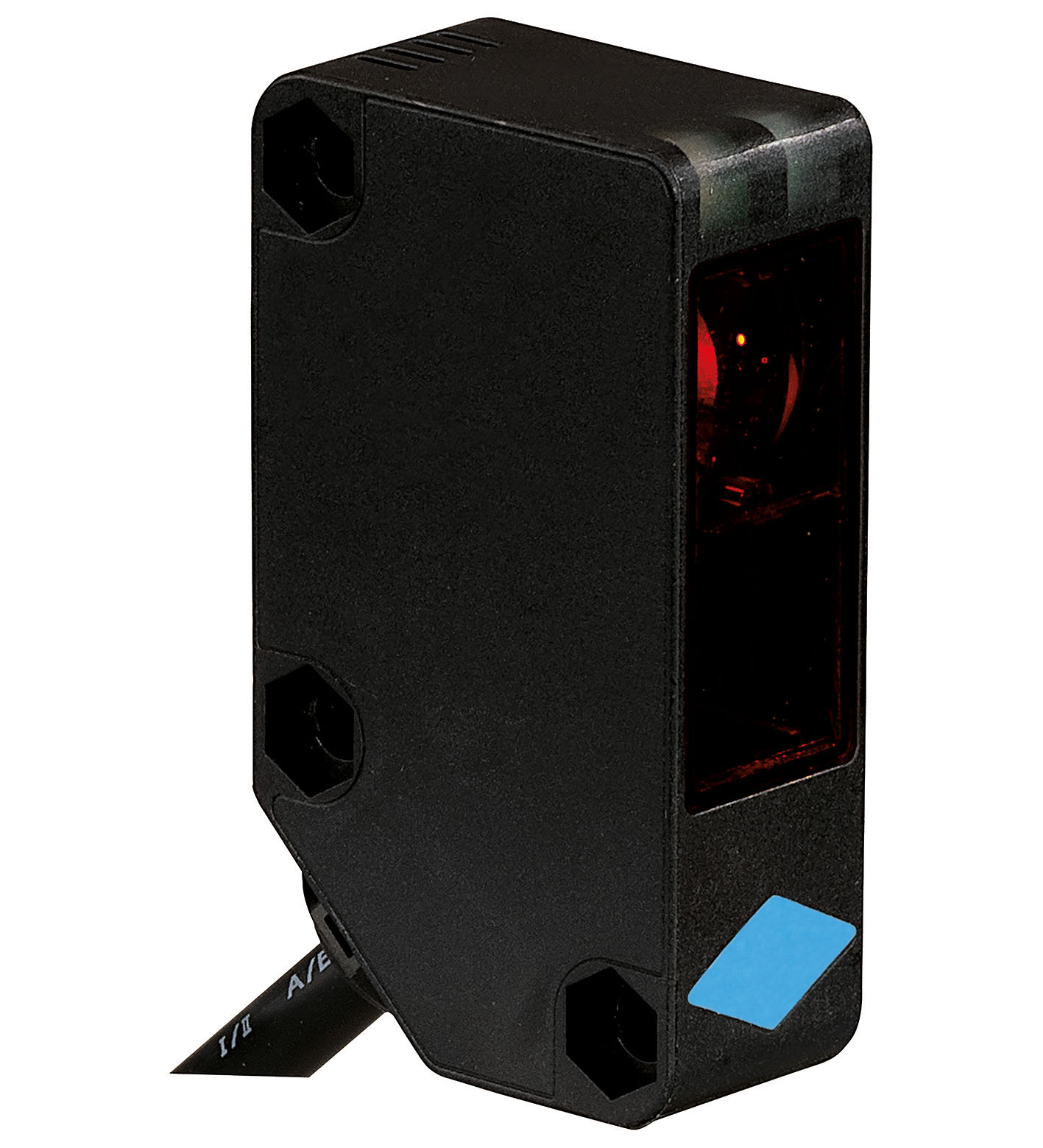

RLK31-6/31/115

Retroreflective sensor. Retroreflective sensor without polarization filter, plastic housing, 14 m detection range, red light, dark on, AC/DC version, relay contact output, no control elements, fixed c...

Retroreflective sensor. Retroreflective sensor without polarization filter, plastic housing, 14 m detection range, red light, dark on, AC/DC version, relay contact output, no control elements, fixed cable, Cost-optimized series for standard tasks, Large construction with small housing, Version for universal voltages, Relay output. Effective detection range: 14 m. Reflector distance: 200 ... 14000 mm. Threshold detection range: 16.5 m. Reference target: H85-2 reflector. Light source: LED. Light type: modulated visible red light , 630 nm. Polarization filter: no. Diameter of the light spot: approx. 240 mm at a distance of 8 m. Opening angle: 3 °. Ambient light limit: 50000 Lux. MTTFd: 790 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green: power on. Function indicator: LED yellow:1. LED lit constantly: signal > 2 x switching point (operating reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point. Operating voltage: 24 ... 240 V AC 12 ... 240 V DC. No-load supply current: ≤ 40 mA. Power consumption: ≤ 2 VA. Switching type: dark-on. Signal output: Relay, 1 alternator. Switching voltage: max. 240 V AC. Switching current: max. 3 A. Switching power: DC: max. 150 W AC: max. 750 VA. Switching frequency: 20 Hz. Response time: ≤ 25 ms. Product standard: EN 60947-5-2. Protection class: II , rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Output circuit basis insulation of input circuit according to EN 50178, rated insulation voltage 240 V AC. CCC approval: Certified by China Compulsory Certification (CCC). Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPolycarbonateOptical facePMMA: . Housing: Polycarbonate. Optical face: PMMA. Mass: 154 g. Dimensions: . Height62 mmWidth18 mmDepth35 mm: . Height: 62 mm. Width: 18 mm. Depth: 35 mm

Brand	Pepperl Fuchs
Lifecycle status	active
