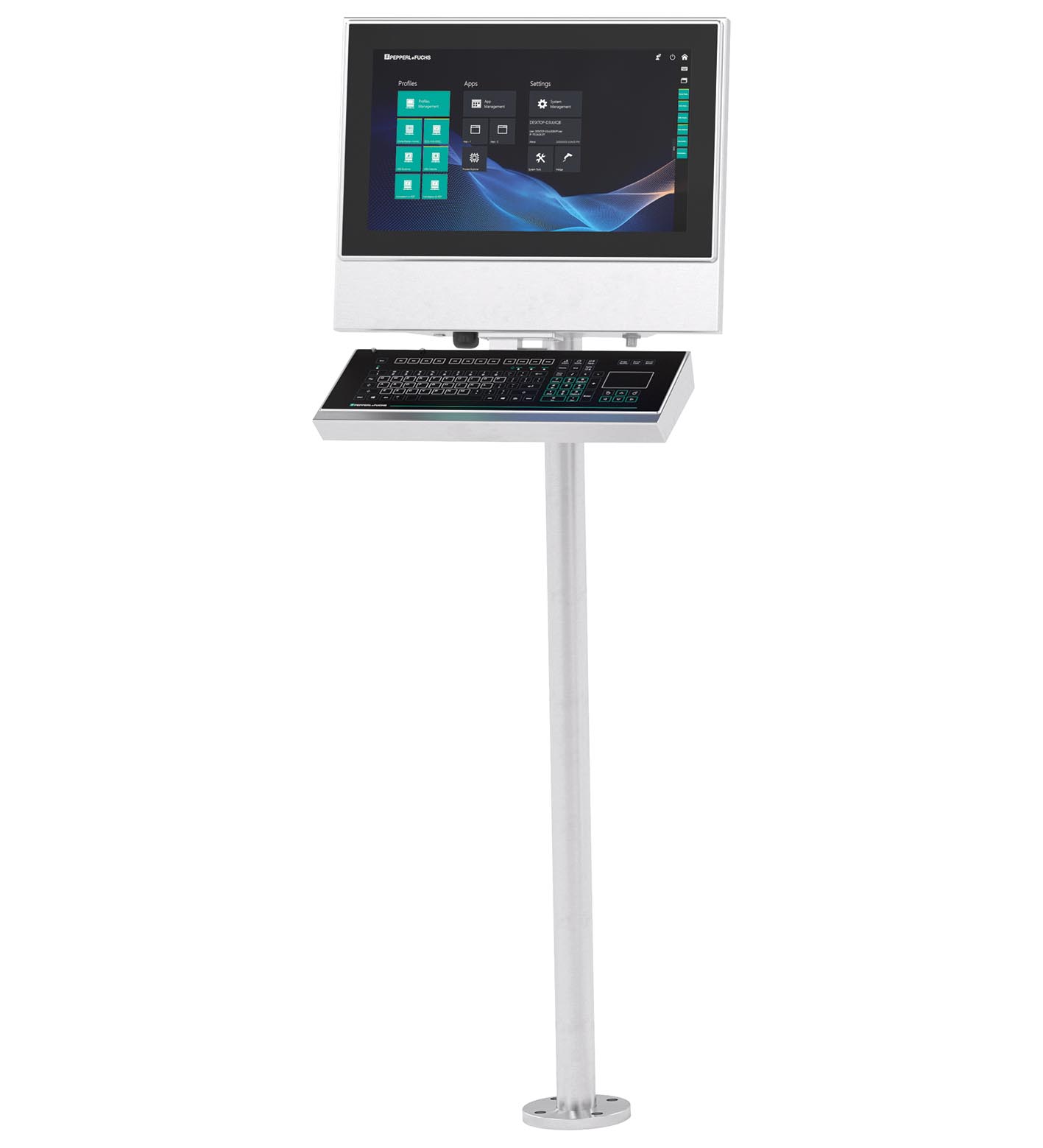

RM-320S-*A-*
Remote Monitor - System with enclosure. Remote Monitor - System with enclosure, Fully modular design which enables easy migration of individual components, Large application flexibility due to identic...
Remote Monitor - System with enclosure. Remote Monitor - System with enclosure, Fully modular design which enables easy migration of individual components, Large application flexibility due to identical basic components that can be configured as required, Thin Client solution (with VisuNet RM Shell firmware), Global certifications, Optional preinstalled RFID20-* reader. Type: Remote Monitor. Processor: Intel® Celeron™ 3965U. RAM: A: 1x 4 GB DDR4-2133, industrial temperature gradeB: 1x 8 GB DDR4-2133, industrial temperature grade. Mass storage: Storage interface:1x M.2 2242/2280 M Key, PCIe + SATA 3 Storage:64 GB M.2 SATA 3, industrial temperature grade. Power consumption: . ACA: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.DCD: 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.: . AC: A: 115/230 V a.c. (100 ... 240 V a.c.), max. 0.7 A, max. 70 W For connections designation refer to the Power Supply PS1000-A6-24.5 manual.. DC: D: 20 ... 28 V d.c. / 2.8 A (SELV/PELV or class 2) For connections designation refer to the VisuNet FLX Panel Mount manual.. Display: . TypeLiquid Crystal Display (LCD) with LED backlightScreen size54.61 cm (21.5 inch)Resolution1920 x 1080 pixels (Full HD) Aspect ratio 16:9Color depth24 bit (16.7 M) colorContrast ratioTypically22KT, 22GT: 1000:122FC: 5000:1BrightnessConfigurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2Viewing angle22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° verticalLife span22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr: . Type: Liquid Crystal Display (LCD) with LED backlight. Screen size: 54.61 cm (21.5 inch). Resolution: 1920 x 1080 pixels (Full HD) Aspect ratio 16:9. Color depth: 24 bit (16.7 M) color. Contrast ratio: Typically22KT, 22GT: 1000:122FC: 5000:1. Brightness: Configurable display options:22KT, 22GT: 250 cd/m222FC: 300 cd/m2. Viewing angle: 22KT, 22GT: 178 ° in all directions22FC: 170 ° horizontal, 160 ° vertical. Life span: 22GT: back lamp life: 30.000 hrs typical half life, at 25 °C (77 °F)22KT, 22FC: back lamp life: 50.000 hr. Input devices: . Touch screen10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bondingKeyboardOptional: Foil keyboard with different pointing device options available (see EXTA4 datasheet)RFID readerOptional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data): . Touch screen: 10-finger multi-touch, glove-friendlyConfigurable display options:22KT, 22GT: Capacitive touch, no optical bonding22FC: Capacitive touch, optical bonding. Keyboard: Optional: Foil keyboard with different pointing device options available (see EXTA4 datasheet). RFID reader: Optional: Integrated in the VisuNet FLX housing,2 configuration options available:TWN4 MultiTech 3 M LF HFTWN4 MultiTech 3 LEGIC M LF HF(see RFID20-* technical data). Interface type: 1 x DisplayPort 1.2 (DP++) 1 x mini DisplayPort 1.2 (DP++ w/ mono locking screw) 1 x Audio Line-out 2 x USB Ex i ports prepared for Pepperl+Fuchs intrinsically safe keyboard2 x USB 3.1 Gen1 (5 Gbps) ports1 x USB 2.0 port 2 x LAN ports (RJ45, 10/100/1000 Mbps) 2 x RS232/422/485 (BIOS configurable) with 5V/12V to power peripherals (1 x DB9 male + 1 x RJ45). Electromagnetic compatibility: . Directive 2014/30/EUNon-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013: . Directive 2014/30/EU: Non-RFID products onlyEN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61326-1:2013. Explosion protection: . Directive 2014/34/EUEN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024: . Directive 2014/34/EU: EN IEC 60079-0:2018EN IEC 60079-7:2015/A1:2018EN 60079-11:2012EN IEC 60079-31:2024. Radio and telecommunication terminal equipment: . Directive 2014/53/EURFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008: . Directive 2014/53/EU: RFID products onlyEN 301489-1 V2.2.3:2019EN 301489-3 V2.3.2:2023EN 300 330 V2.1.1:2017EN 61326-1:2013EN 61000-6-4:2007EN 61000-6-4:2007/A1:2011EN 61010-1:2010EN 62479 :2010EN 62311:2008. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018. Operating system: VisuNet RM Shell 6 (based on Windows® 10 IoT Enterprise LTSC 2021 x64) Optional:I: IGEL OS 11 (based on Linux, without licence)J: IGEL OS 12 (based on Linux, without licence) T: ThinManager Ready. Operating temperature: 0 ... 40 °C (32 ... 104 °F). Storage temperature: -20 ... 65 °C (-4 ... 149 °F). Relative humidity: max. relative humidity 93% at 40°C (non-condensing) according to EN60068-2-78. Climatic conditions: Passive cooling, no rotating parts.. Altitude: Operating altitude max. 2000 m. Shock resistance: 18 shocks 15 g, 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz, +/- 0.075 mm, 1g, 10 cycles per axis according to EN60068-2-6. Degree of protection: IP66 Type 4X: with RFID option for indoor use only. Material: Housing: Stainless steel AISI304 (1.4301)Surface finish: Bead blasted, typical surface roughness 0.8 µm. Installation: System with enclosure. Mass: approx. 16 kgapprox. 18 kg with AC Power Supply. Dimensions: 577 mm x 466 mm x 233 mm. UL approval: . Approved forUL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C: . Approved for: UL OrdLocUL approval E223772UL61010-1 Ed.3UL 61010-2-201 Ed2CAN/CSA C22.2 No 61010-1-12CAN/CSA C22.2 No 61010-2-201 UL approval E492874Non-Incendive circuits forCL I, DIV 2, GP A-DCL II, DIV 2, GP F, GCL IIINon-Incendive circuits forCL I, ZN 2, IICCL II, ZN 22, IIIBCL III, ZN 22, IIIAInstall per drawing 116-0478 Mounting inCL I, DIV 2, GP A-D, T4CL II, DIV 2, GP F, G, T4CL IIIMounting inCL I, ZN 2, IIC, T4CL II, ZN 22, IIIB, T85°CCL III, ZN 22, IIIA, T85°C. ATEX approval: . ATEX certificateUL 22 ATEX 2481XATEX markingII 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc: . ATEX certificate: UL 22 ATEX 2481X. ATEX marking: II 3 G Ex ec [ic Gc] IIC T4 Gc II 3 D Ex tc [ic Dc] IIIC T85°C Dc. IECEx approval: . IECEx certificateIECEx ULD 22.0019XIECEx markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcIECEx standardIEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3: . IECEx certificate: IECEx ULD 22.0019X. IECEx marking: Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc. IECEx standard: IEC 60079-0:2017 Ed 7.0 IEC 60079-7:2017 Ed 5.1 IEC 60079-11:2011 Ed 6.0 IEC 60079-31:2013 Ed. 3. CCC approval: . CCC certificate2024322309005748CCC markingEx ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C DcCCC standardGB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021: . CCC certificate: 2024322309005748. CCC marking: Ex ec [ic Gc] IIC T4 Gc Ex tc [ic Dc] IIIC T85°C Dc. CCC standard: GB 3836.1-2021GB/T 3836.3-2021GB/T 3836.4-2021GB/T 3836.31-2021
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
