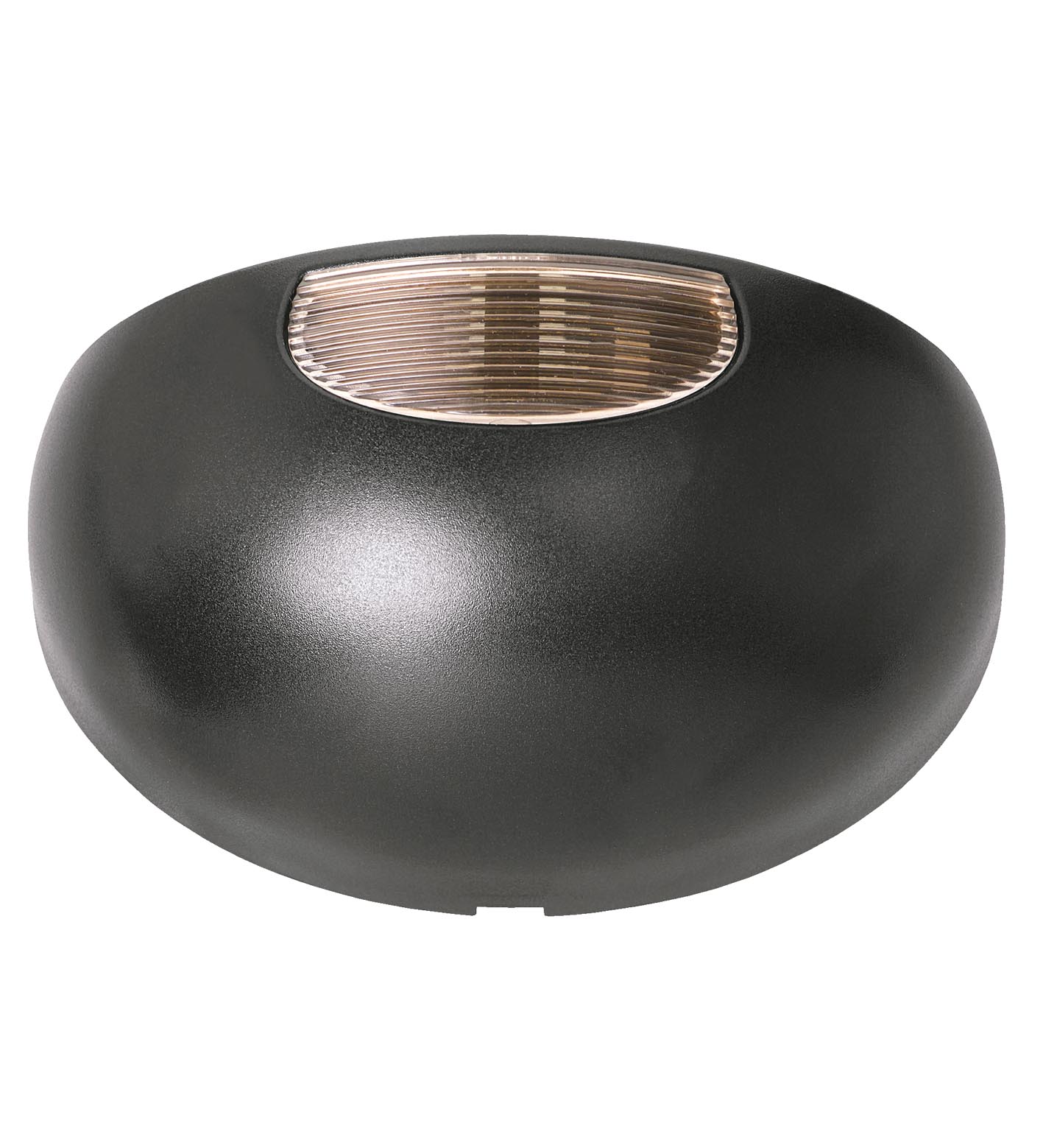

RMS-D

Radar sensor. Microwave motion sensor with intelligent functions, Reliable detection of people and vehicles, Direction detection, Cross traffic suppression, "Slow motion" for extremely slow motions, F...

Radar sensor. Microwave motion sensor with intelligent functions, Reliable detection of people and vehicles, Direction detection, Cross traffic suppression, "Slow motion" for extremely slow motions, Function: Open, Sensor principle: Radar sensor, Operating voltage: 12 ... 36 V DC , 12 ... 28 V AC, Signal output: Relay, 1 NO contact/NC contact, Connection: plug 4-pin , 5 m connecting cable included with delivery. Sensing range: Wide: 2000 x 4500 mm (DxW) at 2200 mm mounting height and 30° inclination angle narrow: 4500x 2000 mm (DxW) at 2200 mm mounting height and 30° inclination angle. Function principle: Microwave module. Detection speed: min. 0.1 m/s. Setting angle: Horizontal: -30° ... +30° in 5° incrementsVertical: 0° ... 90° in 10° increments. Operating frequency: 24.15 ... 24.25 GHz K-Band. Operating mode: Radar motion sensor. Transmitter radiated power (EIRP): < 20 dBm. MTTFd: 640 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED red/green. Control elements: DIP switch for selection of operating modes : direction detection , cross-traffic suppression , Slow-motion , Switching type. Control elements: sensitivity adjustment. Control elements: Adjustment for off delay. Operating voltage: 12 ... 36 V DC , 12 ... 28 V AC. No-load supply current: ≤ 50 mA at 24 V DC. Power consumption: ≤ 1.2 W at 24 V DC ≤ 1.7 W at 36 V DC. Switching type: NO/NC. Signal output: Relay, 1 NO contact/NC contact. Switching voltage: max. 48 V AC / 48 V DC. Switching current: max. 0.5 A AC / 1 A DC. Switching power: max. 24 W / 60 VA. De-energized delay: 0.2 ... 5 s adjustable (1 sec factory setting). CE conformity: 2014/53/EU This device can be used in all countries within the European Union. In other countries, all applicable national regulations must be observed.. FCC approval: No - Use in North America is not permitted.. Operating temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -30 ... 70 °C (-22 ... 158 °F). Relative humidity: max. 90 % non-condensing. Mounting height: max. 4000 mm. Degree of protection: IP54. Connection: plug 4-pin , 5 m connecting cable included with delivery. Material: . HousingABS, anthracite: . Housing: ABS, anthracite. Mass: 120 g. Dimensions: 123 mm x 65 mm x 57 mm. Height65 mmWidth123 mmDepth57 mm: . Height: 65 mm. Width: 123 mm. Depth: 57 mm. Series: RMS

Brand	Pepperl Fuchs
Lifecycle status	active
