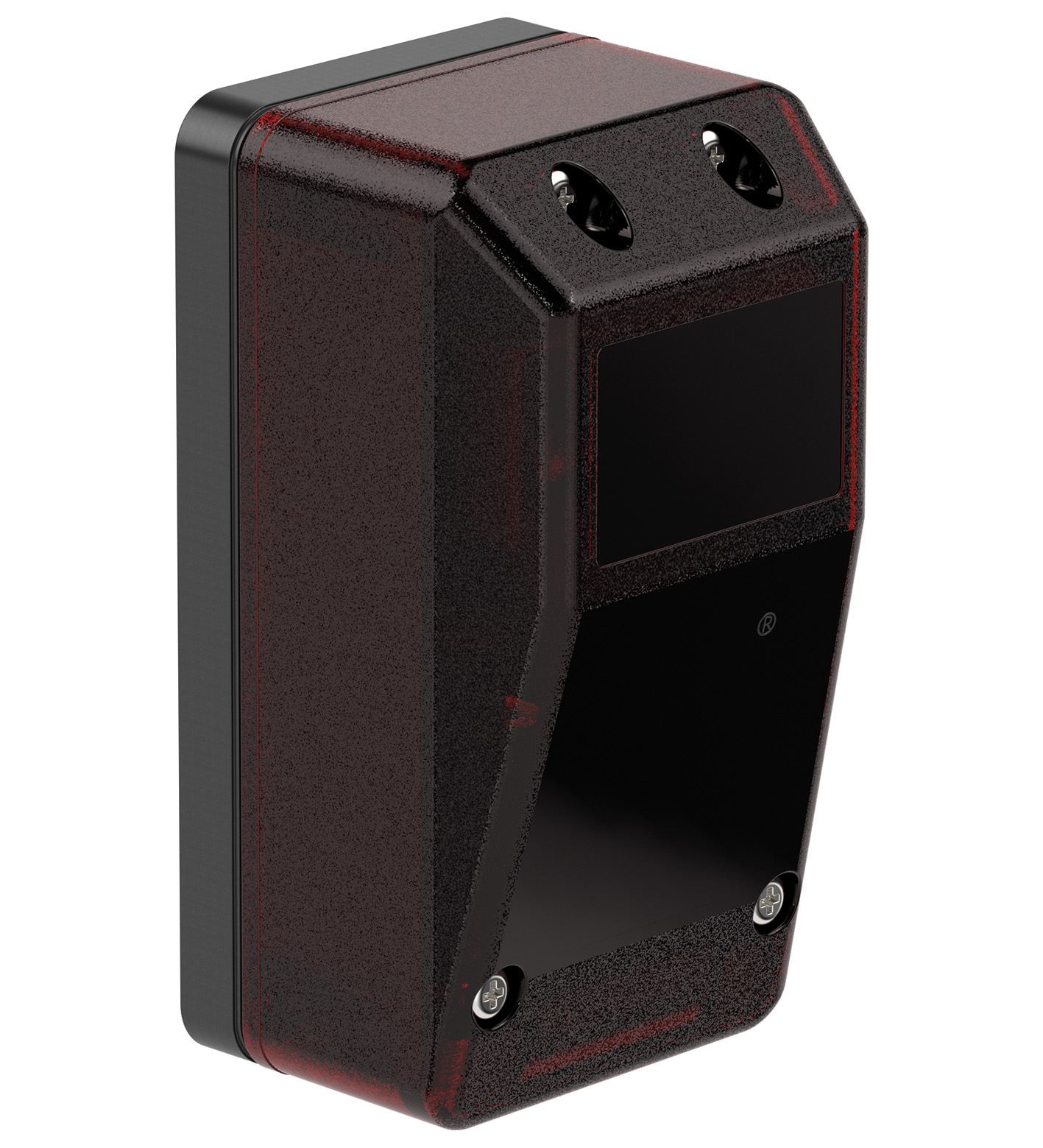

RP25-12M-LR-SET

Retroreflective sensor. Photoelectric sensor for detecting people, objects and vehicles, Indicator LED on the front, Relay output, Version with accessories in scope of delivery, Operating voltage 24 V...

Retroreflective sensor. Photoelectric sensor for detecting people, objects and vehicles, Indicator LED on the front, Relay output, Version with accessories in scope of delivery, Operating voltage 24 V AC/DC, Construction type(S2): Rectangular type, Light source: LED, Light type: Modulated light 680 nm, Construction type: Rectangular, Operating voltage: 24 V AC ± 25 % <BR>10 ... 40 V DC, Output type: relay, change-over contact, Switching type: light-on, Degree of protection: IP65 according to EN 60529. Effective detection range: 0.5 ... 12 m. Threshold detection range: 15 m. Reference target: Reflector RD82 SW4. Number of protective field beams: 1. Light source: LED. Light type: Modulated light 680 nm. Marking: CE. Diameter of the light spot: approx. 400 mm at a distance of 15 m. Opening angle: 1.5 °. Optical face: frontal. Ambient light limit: 100000 Lux. Function indicator: LED red: lit when the light beam is interrupted LED green: lights up when light beam is free. Stability alarm indicator: LED red flashing (4 Hz) - insufficient operating reserve. Operating voltage: 24 V AC ± 25 % 10 ... 40 V DC. Operating current: ≤ 30 mA. Power consumption: ≤ 1 VA. Test input: at 0 V at terminal 1, the transmitter switches off. Output type: relay, change-over contact. Switching type: light-on. Switching voltage: max. 50 V AC max. 48 V DC. Switching current: DC: max. 0.5 A AC: max. 0.6 A. Energized/De-energized delay: typ. 100 ms. Response time: ≤ 10 ms. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -35 ... 80 °C (-31 ... 176 °F). Relative humidity: max. 95 %, not condensing. Degree of protection: IP65 according to EN 60529. Connection: screw terminals for max. 1.5 mm2. Material: . HousingABS GF15: . Housing: ABS GF15. Mass: approx. 60 g. Dimensions: . Height86 mmWidth44 mmDepth39 mm: . Height: 86 mm. Width: 44 mm. Depth: 39 mm

Brand	Pepperl Fuchs
Lifecycle status	active
