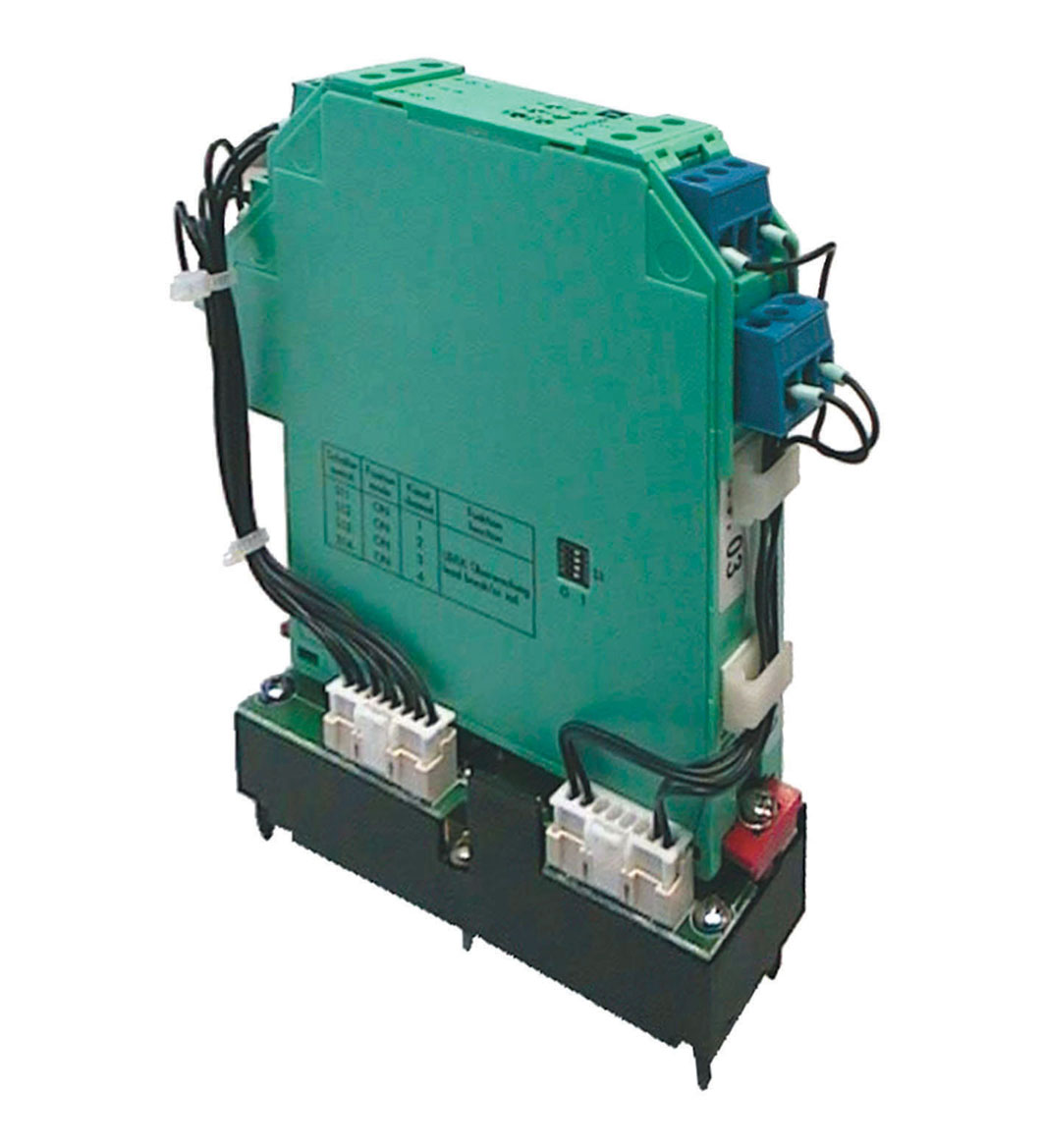

S1000-KFD Adapter

Adapter K-device - S1000 termination board. Adapter for mounting a K-device to S1000 termination board, Snap-on, Additional cable sets depending on K-device. Rated voltage: 20.4 ... 30 V DC. Connectio...

Adapter K-device - S1000 termination board. Adapter for mounting a K-device to S1000 termination board, Snap-on, Additional cable sets depending on K-device. Rated voltage: 20.4 ... 30 V DC. Connection: see Datasheet module. Degree of protection: IEC 60529. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Connection: see Datasheet device. Mass: approx. 50 g. Dimensions: 95 x 21 x 30 mm (3.7 x 0.8 x 1.2 inch). Height30 mmWidth21 mmLength95 mm: . Height: 30 mm. Width: 21 mm. Length: 95 mm. EU-type examination certificate: CESI 04 ATEX 142 X. Marking II (1)G [EEx ia] IIC: . Marking: II (1)G [EEx ia] IIC. Supply: . Maximum safe voltageUm250 V AC / 375 V DC (Attention! Um is no rated voltage.): Um. Maximum safe voltage: 250 V AC / 375 V DC (Attention! Um is no rated voltage.). Directive conformity: . Directive 2014/34/EUEN 50014, EN 50020: . Directive 2014/34/EU: EN 50014, EN 50020. IECEx approval: . IECEx certificateIECEx LCI 07.0013XIECEx marking[Ex ia] IIC , [Ex iaD]StandardsIEC 60079-0:2004 , IEC 60079-11:2006 , IEC 61241-0:2004 , IEC 61241-11:2005: . IECEx certificate: IECEx LCI 07.0013X. IECEx marking: [Ex ia] IIC , [Ex iaD]. Standards: IEC 60079-0:2004 , IEC 60079-11:2006 , IEC 61241-0:2004 , IEC 61241-11:2005. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
