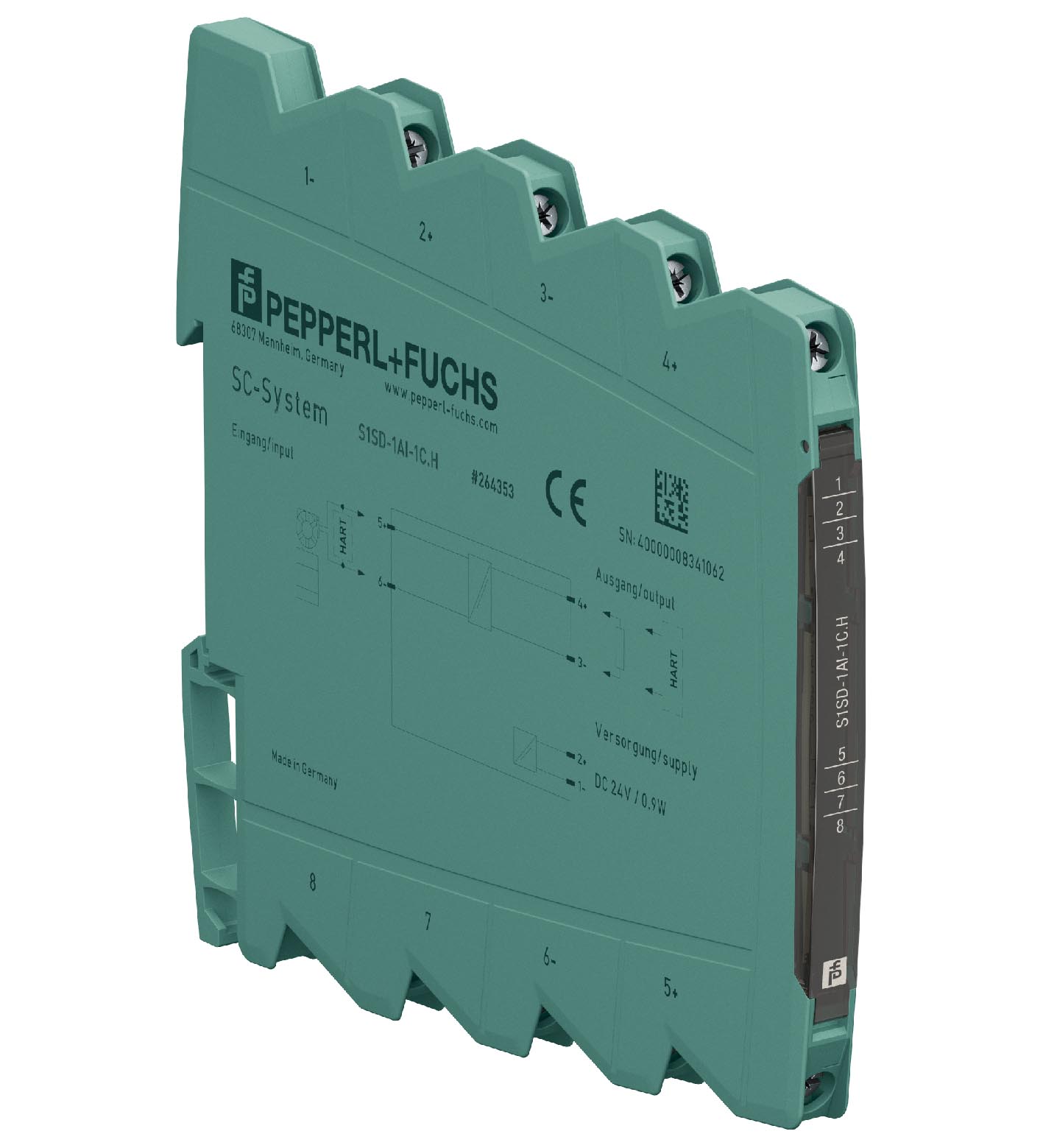

S1SD-1AI-1C.H

SMART Transmitter Power Supply. 1-channel signal conditioner, 24 V DC supply, Input 2-wire and 3-wire SMART transmitters and current sources, Output 0/4 mA ... 20 mA, Accuracy 0.1 %, Connection via sc...

SMART Transmitter Power Supply. 1-channel signal conditioner, 24 V DC supply, Input 2-wire and 3-wire SMART transmitters and current sources, Output 0/4 mA ... 20 mA, Accuracy 0.1 %, Connection via screw terminals, Number of channels: 1-channel, HART communication, Signal type: Analog input, Rated voltage: 16.8 ... 31.2 V DC, Field device: 2-wire transmitter, Field device [2]: 3-wire transmitter, Field device [3]: current source, Signal: 0/4 ... 20 mA, Signal: 1 x 0/4 ... 20 mA. Signal type: Analog input. Operation time: MTBF: 339 a acc. to SN 29500 stationary continuous operating, average ambient temperature 40 °C (104 °F). Connection: Power Bus or terminals 1-, 2+. Rated voltage: 16.8 ... 31.2 V DC. Power dissipation: 0.9 W. Power consumption: 1.3 W. Connection side: field side. Connection: terminals 5+, 6, 7-. Input signal: 0/4 ... 20 mA. Open circuit voltage/short-circuit current: ≤ 22 V / 30 mA. Input resistance: max. 50 Ω. Transmission range: linearity range: -1 ... 110 %. Available voltage: 16 V at 20 mA. Connection side: control side. Connection: terminals 3-, 4+. Analog current output: 0/4 ... 20 mA, load ≤ 600 Ω. Ripple: ≤ 10 mV eff. Accuracy: max. 0.1 % of full-scale value. Influence of ambient temperature: < 100 ppm/K of full-scale value. Rise time/fall time: ≤ 3.5 ms. Output/power supply: safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min. Input/Other circuits: safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Degree of protection: IEC 60529:2001. Protection against electrical shock: EN 61010-1:2010. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20. Connection: screw terminals. Core cross section: 0.5 ... 2.5 mm2 (20 ... 14 AWG). Mass: approx. 70 g. Dimensions: 6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1. Height97 mmWidth6.2 mmDepth107 mm: . Height: 97 mm. Width: 6.2 mm. Depth: 107 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: DEMKO 16 ATEX 1750X. Marking II 3G Ex nA IIC T4 Gc: . Marking: II 3G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-15:2010. UL approval: E106378. IECEx approval: . IECEx certificateIECEx UL 16.0116XIECEx markingEx nA IIC T4 Gc: . IECEx certificate: IECEx UL 16.0116X. IECEx marking: Ex nA IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
