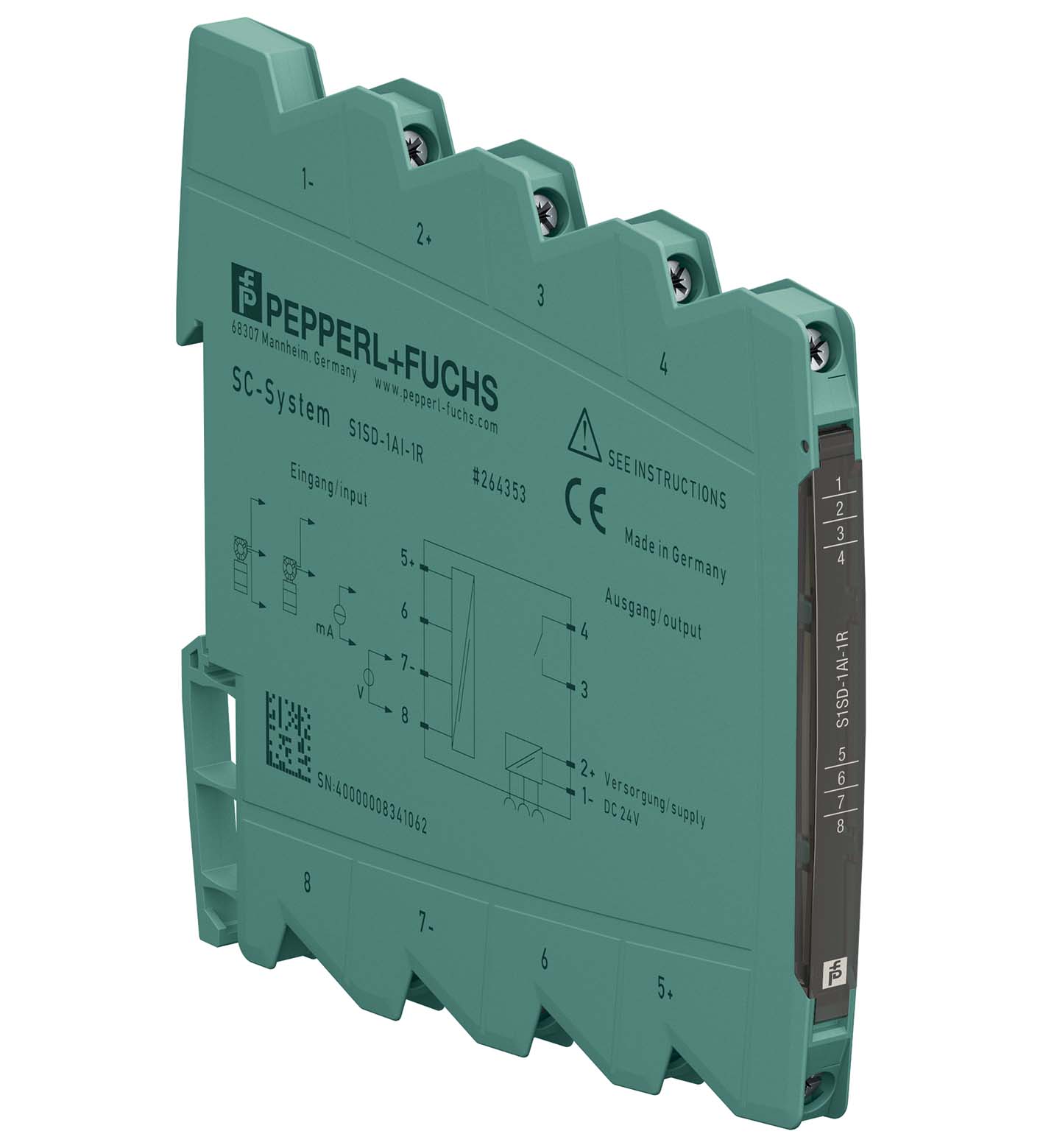

S1SD-1AI-1R

Trip amplifier. 1-channel signal conditioner, 24 V DC supply, Input bipolar current and voltage sources, Input 2-wire and 3-wire transmitters, Relay contact output, Restart inhibit, One-shot function,...

Trip amplifier. 1-channel signal conditioner, 24 V DC supply, Input bipolar current and voltage sources, Input 2-wire and 3-wire transmitters, Relay contact output, Restart inhibit, One-shot function, Configurable by DIP switches and software, Connection via screw terminals, Number of channels: 1-channel, Restart inhibit, Time function, Signal type: Analog input, Rated voltage: 16.8 ... 31.2 V DC, Field device: 2-wire transmitter, Field device [2]: 3-wire transmitter, Field device [3]: current source. Signal type: Analog input. Connection: Power Bus or terminals 1-, 2+. Rated voltage: 16.8 ... 31.2 V DC. Power dissipation: 0.6 W. Power consumption: 0.8 W. Programming interface: programming socket. Connection side: field side. Transmission range: linearity range:unipolar -1 ... 110 %bipolar -110 ... 110 %. Input I: . Connectionterminals 5, 6, 7-Input signal0/4 ... 20 mA , 0/2 ... 10 mA , ± 10 mA, ± 20 mA , max. 50 mAInput resistance≤ 25 Ω: . Connection: terminals 5, 6, 7-. Input signal: 0/4 ... 20 mA , 0/2 ... 10 mA , ± 10 mA, ± 20 mA , max. 50 mA. Input resistance: ≤ 25 Ω. Input II: . Connectionterminals 7-, 8+Input signal0/1 ... 5 V , 0/2 ... 10 V , ± 5 V , ± 10 V , max. 30 VInput resistance> 1 MΩ: . Connection: terminals 7-, 8+. Input signal: 0/1 ... 5 V , 0/2 ... 10 V , ± 5 V , ± 10 V , max. 30 V. Input resistance: > 1 MΩ. Input III: . Connectionterminals 5+, 6-Input signal0/4 ... 20 mAAvailable voltage16 V at 20 mAOpen circuit voltage/short-circuit current≤ 22 V / 30 mA: . Connection: terminals 5+, 6-. Input signal: 0/4 ... 20 mA. Available voltage: 16 V at 20 mA. Open circuit voltage/short-circuit current: ≤ 22 V / 30 mA. Input IV: . Connectionterminals 5, 7Input typereset restart inhibit: . Connection: terminals 5, 7. Input type: reset restart inhibit. Connection side: control side. Connection: terminals 3, 4:. Output: signal, relay. Contact loading: 253 V AC/2 A/cos φ > 0.7; 126.5 V AC/2 A/cos φ > 0.7; 30 V DC/2 A resistive load. Minimum switch current: 2 mA / 24 V DC. Energized/De-energized delay: ≤ 20 ms / ≤ 20 ms. Mechanical life: 107 switching cycles. Accuracy: max. 0.1 % of full-scale value. Influence of ambient temperature: < 100 ppm/K of full-scale value. Output/power supply: safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min. Input/Other circuits: safe electrical isolation by reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff test voltage 3 kV, 50 Hz, 1 min. Display elements: LEDs. Control elements: DIP switch keys. Configuration: via DIP switches via keys via software. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2001. Protection against electrical shock: EN 61010-1:2010. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20. Connection: screw terminals. Core cross section: 0.5 ... 2.5 mm2 (20 ... 14 AWG). Mass: approx. 70 g. Dimensions: 6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1. Height97 mmWidth6.2 mmDepth107 mm: . Height: 97 mm. Width: 6.2 mm. Depth: 107 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
