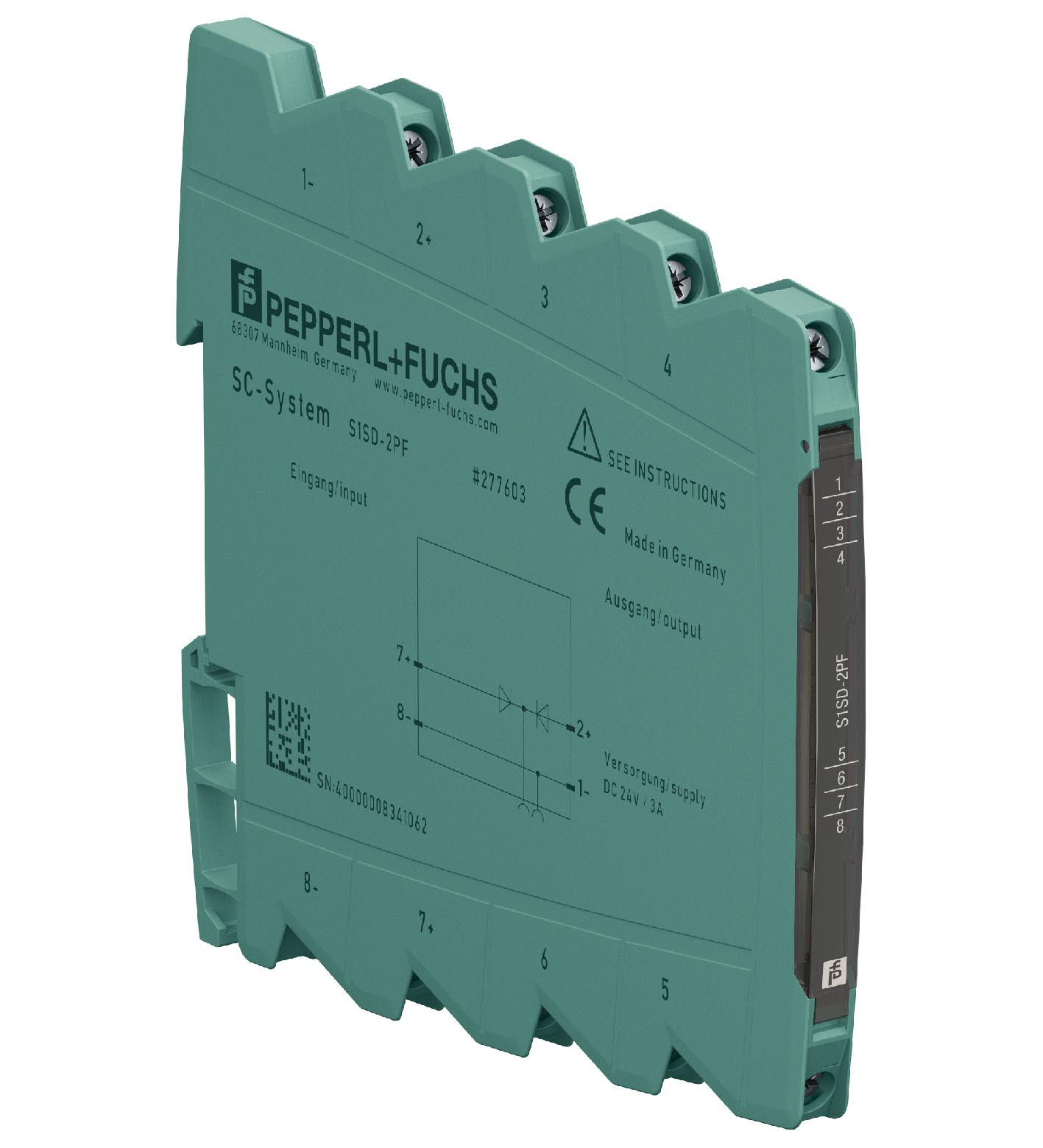

S1SD-2PF

Power Feed Module. Interface for Power Bus, Supply current 3 A, LED status indication, Connection via screw terminals. Connection: Power Bus or terminals 1-, 2+; 7+, 8-. Rated voltage: 16.8 ... 31.2 V...

Power Feed Module. Interface for Power Bus, Supply current 3 A, LED status indication, Connection via screw terminals. Connection: Power Bus or terminals 1-, 2+; 7+, 8-. Rated voltage: 16.8 ... 31.2 V DC. Fusing: 4 AT with back-up fuse. Power dissipation: 0.8 W. Connection: Power Bus. Output current: max. 3 A. Output voltage: 24 V DC. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Degree of protection: IEC 60529:2001. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20. Connection: screw terminals. Core cross section: 0.5 ... 2.5 mm2 (20 ... 14 AWG). Mass: approx. 70 g. Dimensions: 6.2 x 97 x 107 mm (0.24 x 3.82 x 4.21 inch) (W x H x D) , housing type S1. Height97 mmWidth6.2 mmDepth107 mm: . Height: 97 mm. Width: 6.2 mm. Depth: 107 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: DEMKO 16 ATEX 1750X. Marking II 3G Ex nA IIC T4 Gc: . Marking: II 3G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-15:2010. UL approval: E106378. IECEx approval: . IECEx certificateIECEx UL 16.0116XIECEx markingEx nA IIC T4 Gc: . IECEx certificate: IECEx UL 16.0116X. IECEx marking: Ex nA IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
