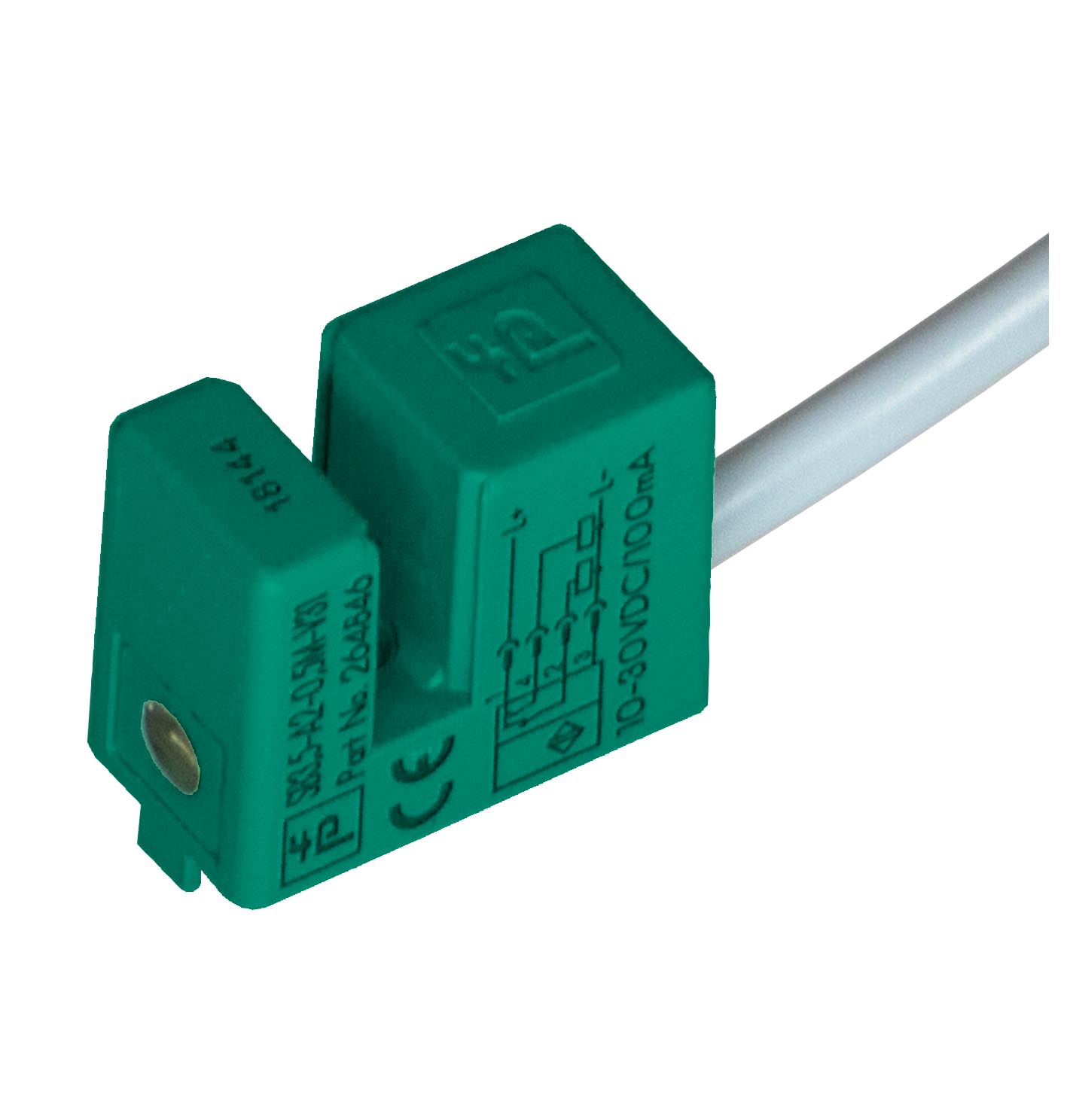

SB3,5-A2

Inductive slot sensor. Switching function: complementary, Output type: PNP, Output polarity: DC, Output type: 4-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Typ...

Inductive slot sensor. Switching function: complementary, Output type: PNP, Output polarity: DC, Output type: 4-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: Crastin (PBTB), Degree of protection: IP67, Material: PVC. Switching function: complementary. Output type: PNP. Slot width: 3.5 mm. Depth of immersion (lateral): 5 ... 7 mm. Output polarity: DC. Output type: 4-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 3000 Hz. Hysteresis: 0.1 ... 0.4 mm. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 2 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 15 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable. Housing material: Crastin (PBTB). Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter3 mm + 0.3 mmBending radius> 10 x cable diameterMaterialPVCColorgreyNumber of cores4Core cross section0.14 mm2LengthL500 mm: . Wire end ferrules: yes. Cable diameter: 3 mm + 0.3 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: grey. Number of cores: 4. Core cross section: 0.14 mm2. Length: 500 mm. Dimensions: . Height15 mmWidth10 mmLength19 mm: . Height: 15 mm. Width: 10 mm. Length: 19 mm

Brand	Pepperl Fuchs
Lifecycle status	active
