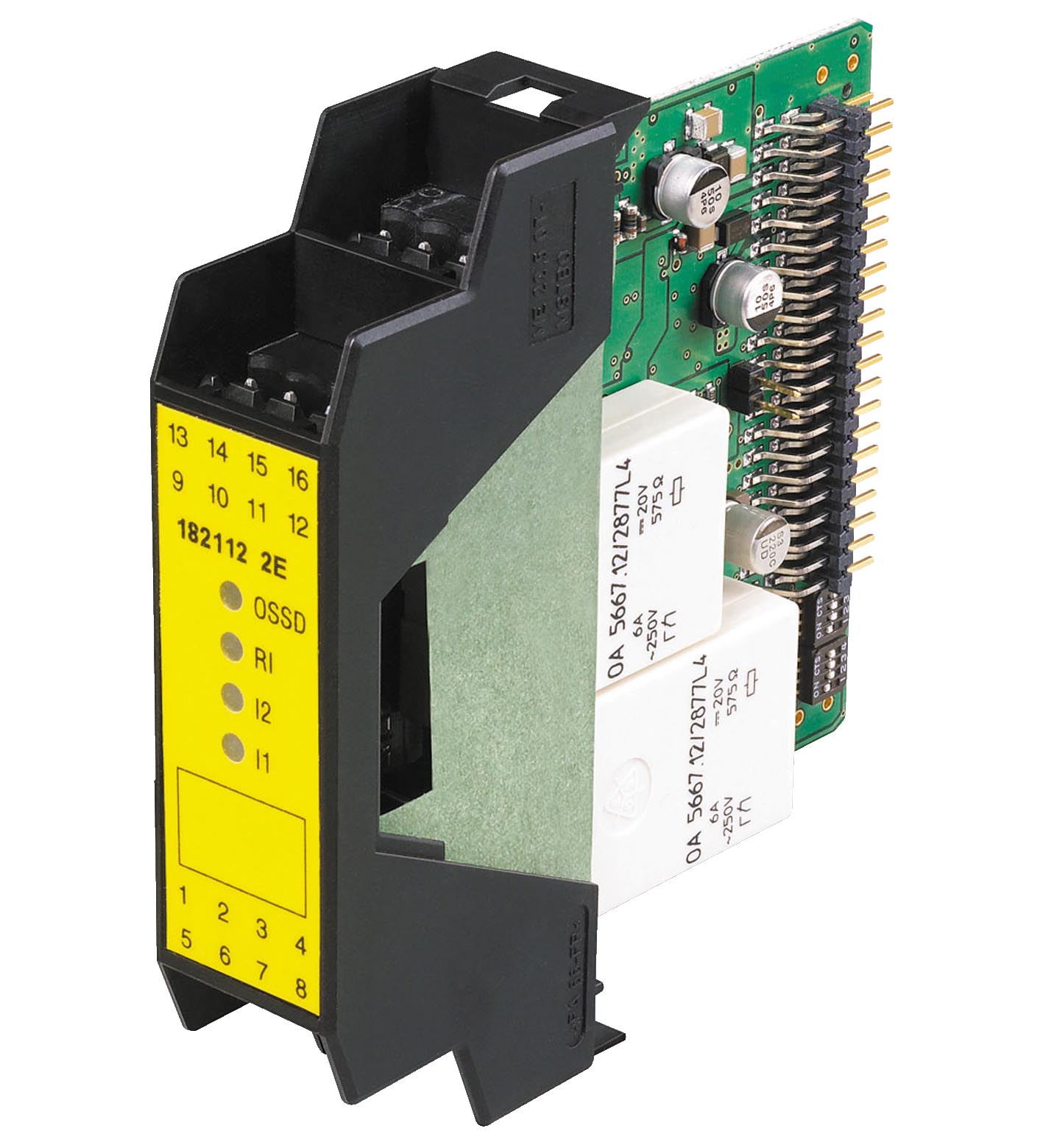

SB4 Module 2E
Safety control unit module. OSSD-R/E-stop-module, Safety outputs OSSD, external status displays OSSD, 2 sensor channels, Operating mode can be selected by means of DIP switches, Start/Restart disable...
Safety control unit module. OSSD-R/E-stop-module, Safety outputs OSSD, external status displays OSSD, 2 sensor channels, Operating mode can be selected by means of DIP switches, Start/Restart disable , Relay monitor, Stop function Cat.0 or Cat.1 and central stop function Cat.0, Time function, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , <BR>24 V DC ± 20 % , via SB4 Housing. Operating mode: Startup/restart disable, relay monitor, emergency off, turn off time. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. Type: 4. Function indicator: LED red: OSSD OFFLED green: OSSD ON Yellow LED: start readiness LED yellow (2x): indicator lamp channel 1 ... 2. Control elements: DIP switch. Operating voltage: 24 V DC ± 20 % , 24 V DC ± 20 % , via SB4 Housing. Activation current: approx. 7 mA. Test input: Reset-input for system test. Safety output: 2 relay outputs, force-guided NO-contact. Signal output: Output for displaying the switching state of the OSSDs. Switching voltage: 10 V ... 250 V AC/DC. Switching current: min. 10 mA , max. 6 A AC/DC. Switching power: max. DC 24 VA , AC 230 VA. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 61496-1. CE conformity: CE. UL approval: cULus. TÜV approval: TÜV. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP20. Connection: screw terminals , lead cross section 0.2 ... 2 mm2 Option /165: Cage tension spring terminals , Cable cross-section 0.2 ... 1.5 mm2. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: approx. 150 g. Dimensions: . Height99 mmWidth22.6 mmDepth100.5 mm: . Height: 99 mm. Width: 22.6 mm. Depth: 100.5 mm. Ordering information: without Option /165 -> with screw terminalswith Option /165 -> spring clamp terminals
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
