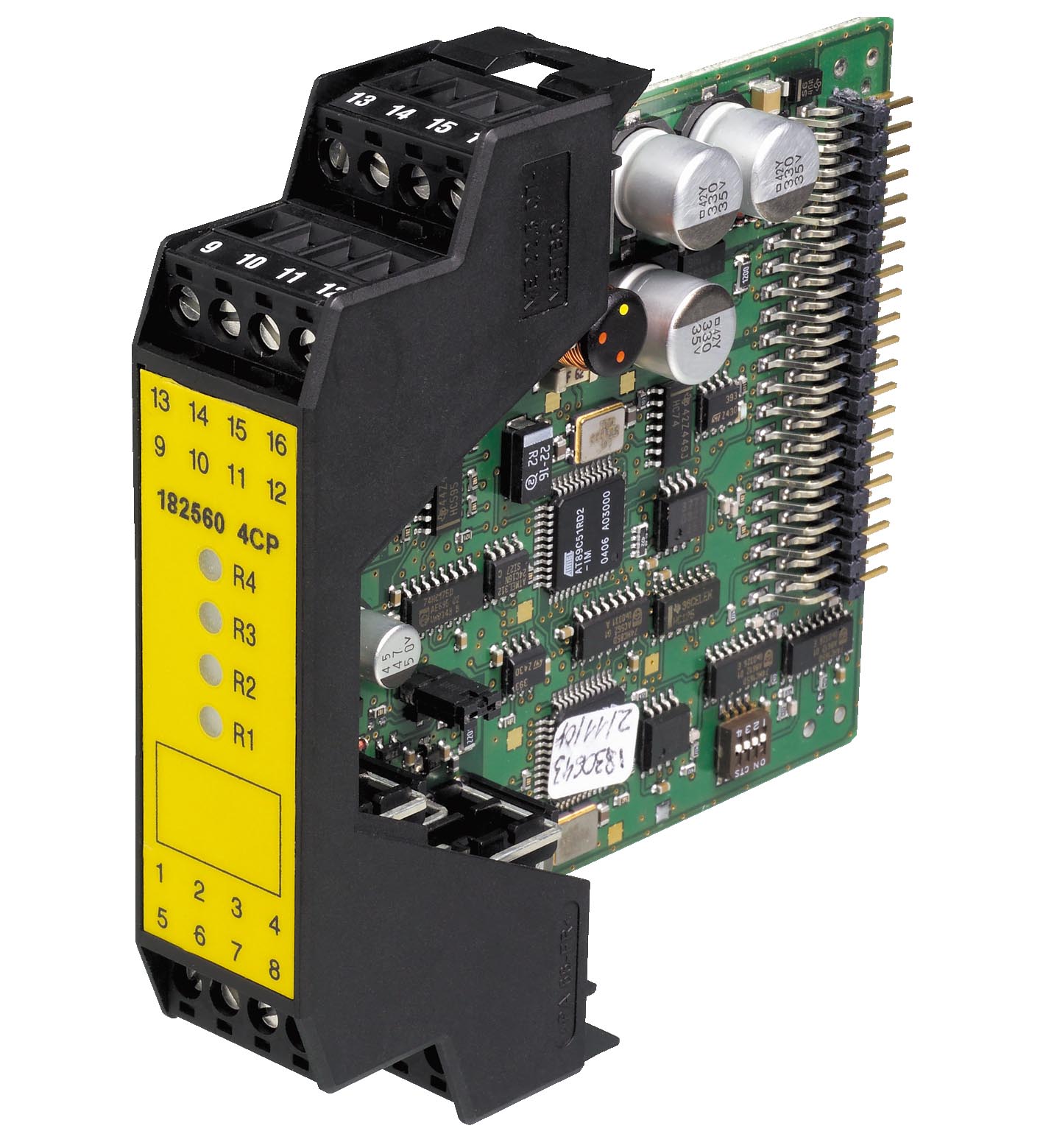

SB4 Module 4COP
Safety control unit module. Sensor module, 4 sensor channels, Single module for safety thru-beam sensors SLA12 and SLA29 and for 2 channel safety devices (emergency off), Micro-Controller controls, Op...
Safety control unit module. Sensor module, 4 sensor channels, Single module for safety thru-beam sensors SLA12 and SLA29 and for 2 channel safety devices (emergency off), Micro-Controller controls, Operating mode can be selected by means of DIP switches, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , via SB4 Housing, Connection: screw terminals , lead cross section 0.2 ... 2 mm<sup>2</sup>. Operating mode: ODER-Function. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. Type: 4. Function indicator: LED yellow (4x): indicator lamp channel 1 ... 4. Stability alarm indicator: LED yellow flashing: Indicator lamp channel 1 ... 4. Control elements: DIP switch. Operating voltage: 24 V DC ± 20 % , via SB4 Housing. Activation current: approx. 7 mA. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 61496-1. CE conformity: CE. UL approval: cULus. TÜV approval: TÜV. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP20. Connection: screw terminals , lead cross section 0.2 ... 2 mm2. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: approx. 150 g. Dimensions: . Height99 mmWidth22.6 mmDepth100.5 mm: . Height: 99 mm. Width: 22.6 mm. Depth: 100.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
