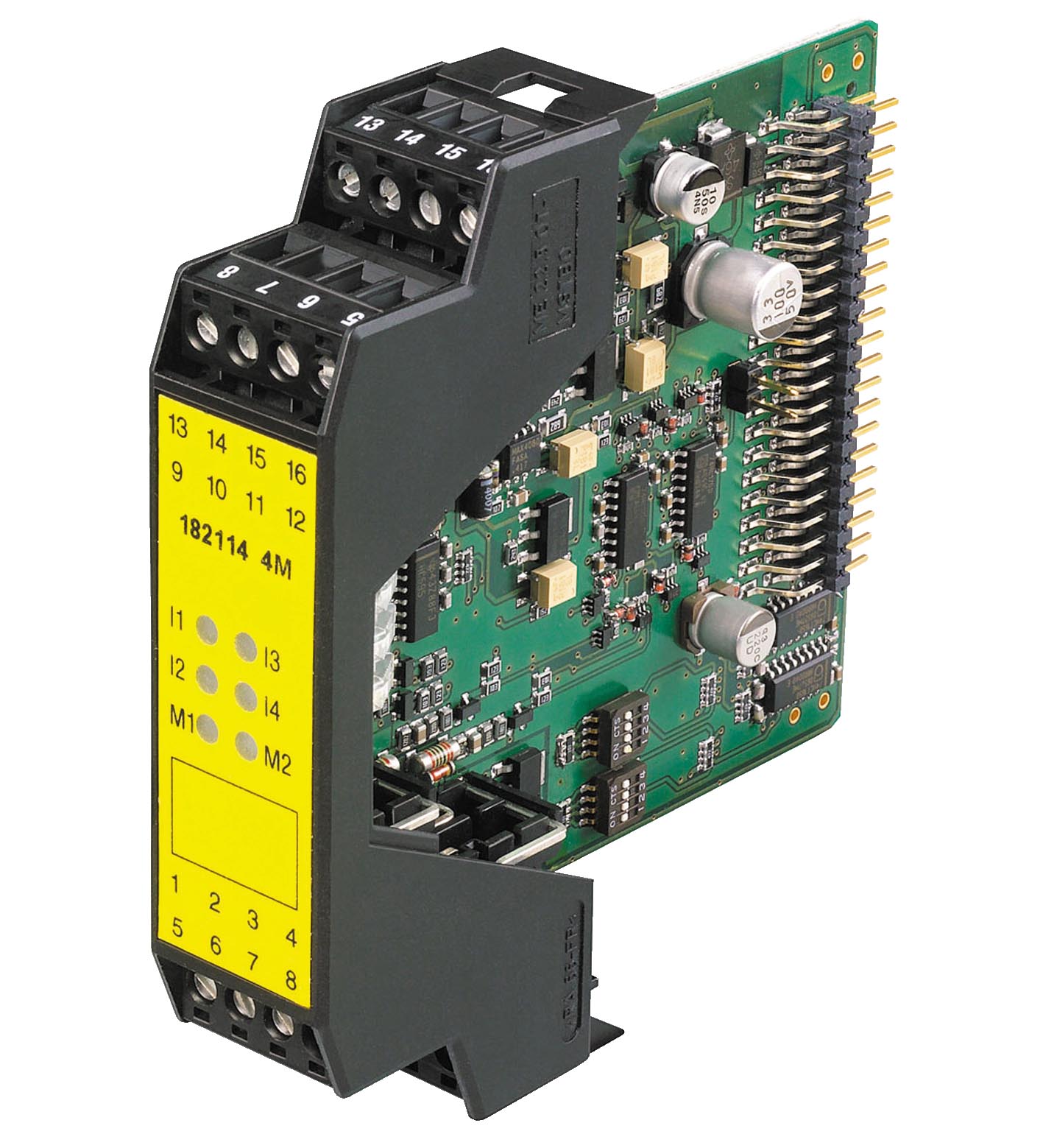

SB4 Module 4M

Safety control unit module. Muting module, 4 sensor channels, Double muting, Emergency muting for the correction of the material jam, Operating mode can be selected by means of DIP switches, Screw ter...

Safety control unit module. Muting module, 4 sensor channels, Double muting, Emergency muting for the correction of the material jam, Operating mode can be selected by means of DIP switches, Screw terminals or spring terminals, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Operating voltage: 24 V DC ± 20 % , <BR>24 V DC ± 20 % , via SB4 Housing. Operating mode: muting operating modes. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. Type: 4. Function indicator: LED yellow (4x): indicator lamp muting sensor 1 ... 4LED white (2x): status muting lamp. Control elements: DIP switch. Operating voltage: 24 V DC ± 20 % , 24 V DC ± 20 % , via SB4 Housing. Activation current: approx. 10 mA. Activation time: Override-Input 0.4 ... 1.2 s. Switching voltage: 24 V. Switching current: 7.5 mA ... 500 mA. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 61496-1. CE conformity: CE. UL approval: cULus. TÜV approval: TÜV. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP20. Connection: screw terminals , lead cross section 0.2 ... 2 mm2 Option /165: Cage tension spring terminals , Cable cross-section 0.2 ... 1.5 mm2. Material: . HousingPolyamide (PA): . Housing: Polyamide (PA). Mass: approx. 150 g. Dimensions: . Height99 mmWidth22.6 mmDepth100.5 mm: . Height: 99 mm. Width: 22.6 mm. Depth: 100.5 mm. Ordering information: without Option /165 -> with screw terminalswith Option /165 -> spring clamp terminals

Brand	Pepperl Fuchs
Lifecycle status	active
