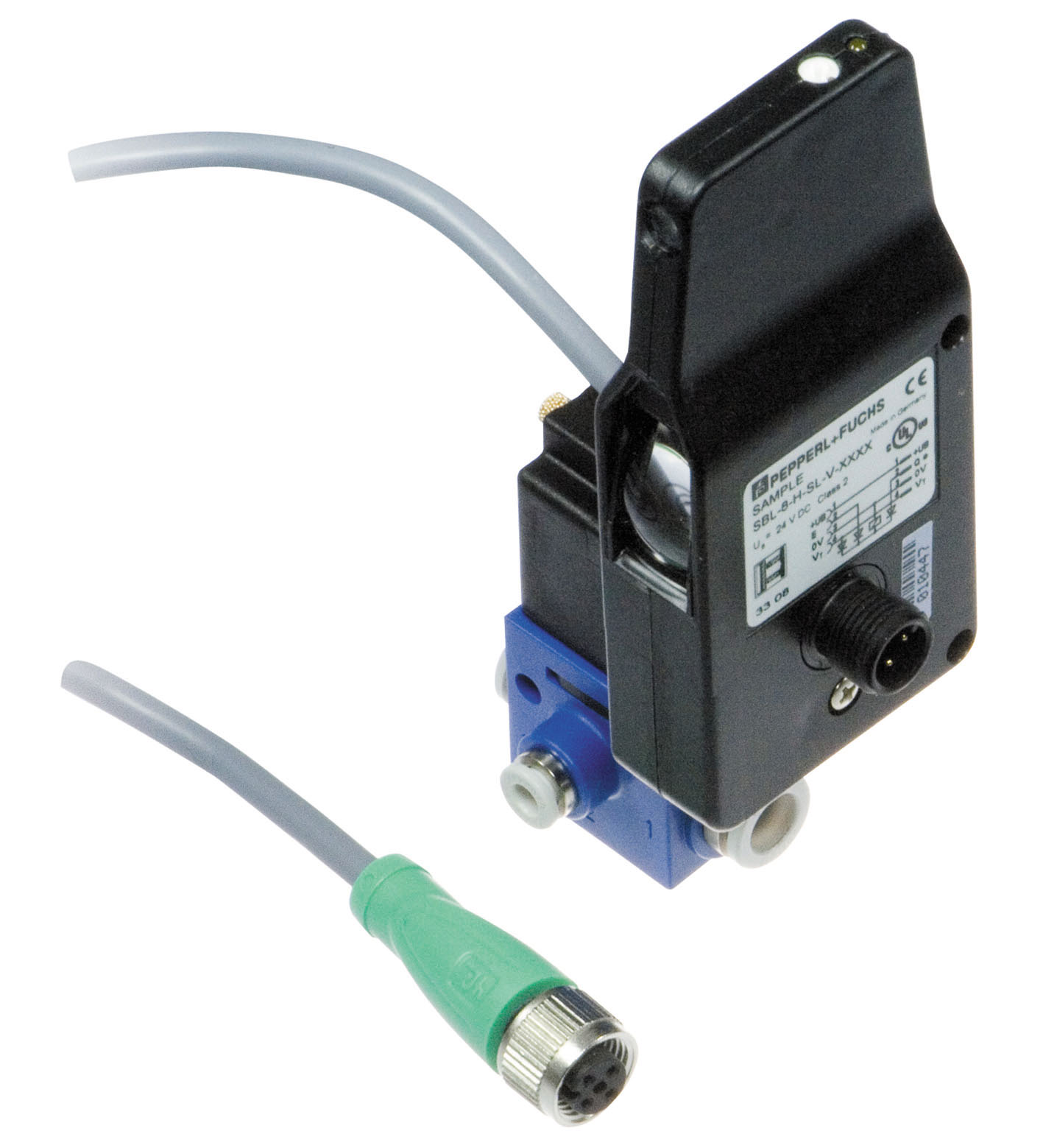

SBL-8-H-900-IR-SL-V-4288

Background suppression sensor. Congested track scanner, background suppression sensor, 900 mm adjustable detection range, infrared light, dark on, 1 PNP output, M12 plug and fixed cable with M12 socke...

Background suppression sensor. Congested track scanner, background suppression sensor, 900 mm adjustable detection range, infrared light, dark on, 1 PNP output, M12 plug and fixed cable with M12 socket, Background suppression sensor for roller conveyors, For installation between the rollers on a roller conveyor, Very small black-white difference, Adjustable detection range, Can be connected in series. Detection range: 40 ... 900 mm. Detection range min.: 40 ... 340 mm. Detection range max.: 40 ... 900 mm. Adjustment range: 340 ... 900 mm. Reference target: standard white 200 mm x 200 mm. Light source: IRED. Light type: modulated infrared light , 880 nm. Black-white difference (6 %/90 %): < 10 %. Diameter of the light spot: approx. 60 mm at detection range 900 mm. Cascadability: At 20°C:max. 38 sensors per line. Ambient light limit: continuous light 30000 Lux , Fluorescent lamp 5000 Lux. MTTFd: 1100 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Function indicator: LED yellow: lights when object is detected. Control elements: Sensing range adjuster. Operating voltage: 24 V DC ± 20 %. Ripple: max. 10 %. No-load supply current: max. 115 mA. Switching type: dark-on. Signal output: 1 PNP, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 100 Hz. Response time: 5 ms. Pneumatic output: 3/2 way valve. Type of valvecurrentless closed: . Type of valve: currentless closed. Operating pressure: 0 ... 4 bar (0 ... 58 psi). Medium: air. Product standard: EN 60947-5-2. Standard conformity: . Shock and impact resistanceIEC / EN 60068. half-sine, 40 g in each X, Y and Z directionsVibration resistanceIEC / EN 60068-2-6. Sinus. 10 -1000 Hz, 10 g in each X, Y and Z directions: . Shock and impact resistance: IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions. Vibration resistance: IEC / EN 60068-2-6. Sinus. 10 -1000 Hz, 10 g in each X, Y and Z directions. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -15 ... 50 °C (5 ... 122 °F). Storage temperature: -30 ... 60 °C (-22 ... 140 °F). Degree of protection: IP65. Connection: 4-pin, M12 x 1 connector ; Connecting cable with Socket, straight M12 x 1 ; Length: 1930 mm. Material: . HousingplasticOptical faceplastic lens: . Housing: plastic. Optical face: plastic lens. Mass: approx. 200 g. Dimensions: . Height100 mmWidth18 mmDepth46 mm: . Height: 100 mm. Width: 18 mm. Depth: 46 mm

Brand	Pepperl Fuchs
Lifecycle status	active
