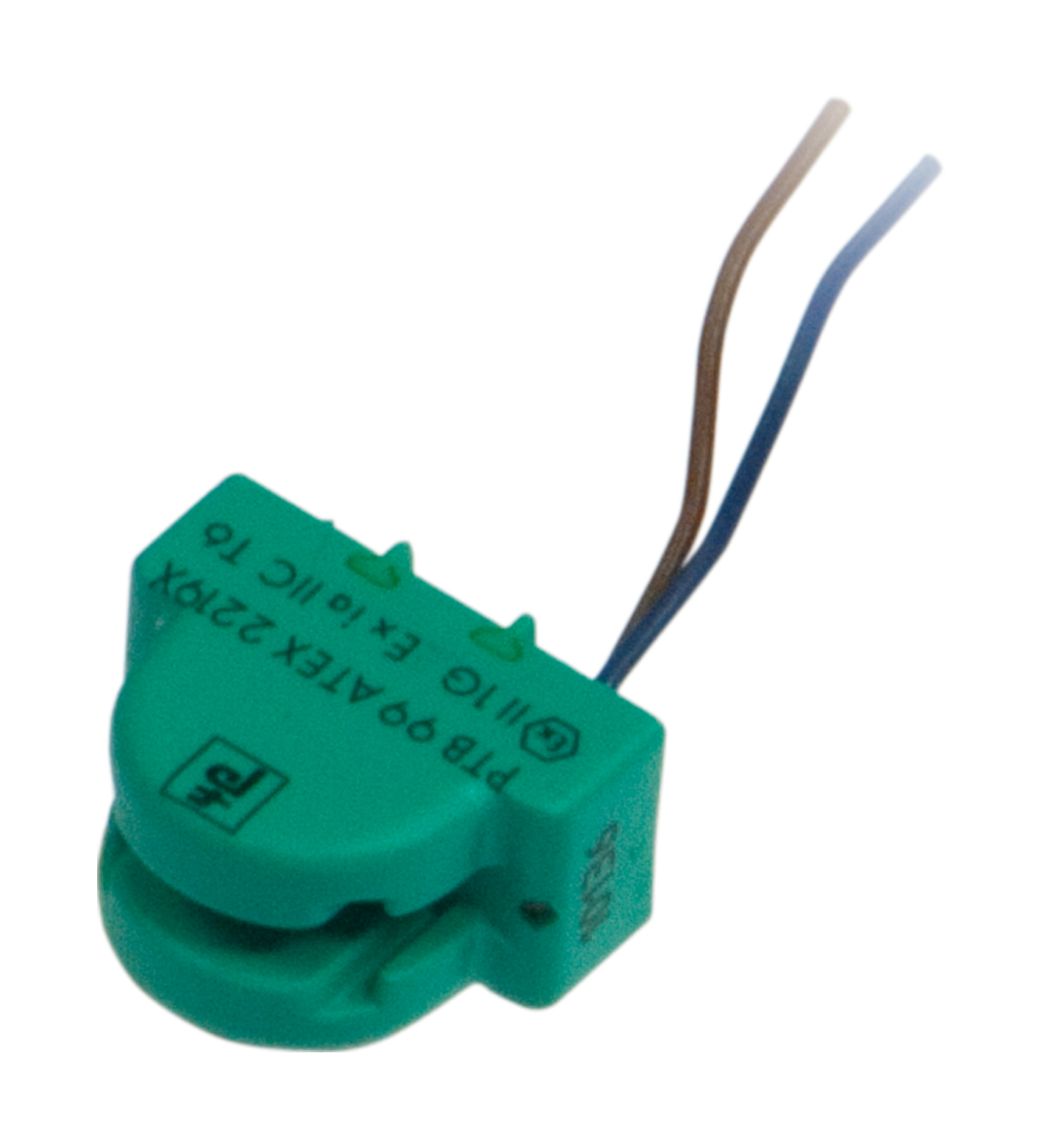

SC2-N0-GN

Inductive slot sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Output type: 2-wire, Construction type: Slot, Series: Slot type, Type of voltage: DC, E...

Inductive slot sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Output type: 2-wire, Construction type: Slot, Series: Slot type, Type of voltage: DC, Equipment protection level Ga: IECEx PTB 11.0091X, Equipment protection level Gb: IECEx PTB 11.0091X, Equipment protection level Da: IECEx PTB 11.0091X, Equipment protection level Mb: IECEx PTB 11.0091X, Equipment protection level Ga: PTB 99 ATEX 2219 X, Equipment protection level Gb: PTB 99 ATEX 2219 X. Switching function: Normally closed (NC). Output type: NAMUR. Slot width: 2 mm. Depth of immersion (lateral): 5 ... 7 mm , typ. 6 mm. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Operating voltage: 5 ... 25 V. Switching frequency: 0 ... 5000 Hz. Hysteresis: 0.11 ... 0.2 mm. Current consumption: . Measuring plate not detected≥ 3 mAMeasuring plate detected≤ 1 mA: . Measuring plate not detected: ≥ 3 mA. Measuring plate detected: ≤ 1 mA. Switching state indicator: LED, yellow. MTTFd: 5790 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000 IEC 60947-5-6:1999Electromagnetic compatibilityNE 21:2007StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000 IEC 60947-5-6:1999. Electromagnetic compatibility: NE 21:2007. Standards: EN IEC 60947-5-2. IECEx approval: . Equipment protection level GaIECEx PTB 11.0091XEquipment protection level GbIECEx PTB 11.0091XEquipment protection level DaIECEx PTB 11.0091XEquipment protection level MbIECEx PTB 11.0091X: . Equipment protection level Ga: IECEx PTB 11.0091X. Equipment protection level Gb: IECEx PTB 11.0091X. Equipment protection level Da: IECEx PTB 11.0091X. Equipment protection level Mb: IECEx PTB 11.0091X. ATEX approval: . Equipment protection level GaPTB 99 ATEX 2219 XEquipment protection level GbPTB 99 ATEX 2219 XEquipment protection level DaPTB 99 ATEX 2219 X: . Equipment protection level Ga: PTB 99 ATEX 2219 X. Equipment protection level Gb: PTB 99 ATEX 2219 X. Equipment protection level Da: PTB 99 ATEX 2219 X. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 8.2 V DC. Ordinary LocationE87056Hazardous LocationE501628Control drawing116-0453: . Ordinary Location: E87056. Hazardous Location: E501628. Control drawing: 116-0453. CCC approval: . Hazardous Location2020322315002306: . Hazardous Location: 2020322315002306. NEPSI approval: . NEPSI certificateGYJ16.1391X: . NEPSI certificate: GYJ16.1391X. Marine approval: DNVGL TAA00001A5. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Connection type: flexible leads. Core cross section: 0.06 mm2. Housing material: PBT. Degree of protection: IP67. Cable: . Cable diameter0.75 mm ± 0.15 mmBending radius> 10 x cable diameterMaterialPVCCore cross section0.06 mm2LengthL500 mm: . Cable diameter: 0.75 mm ± 0.15 mm. Bending radius: > 10 x cable diameter. Material: PVC. Core cross section: 0.06 mm2. Length: 500 mm. Dimensions: . Height13 mmWidth15 mmLength8 mm: . Height: 13 mm. Width: 15 mm. Length: 8 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
