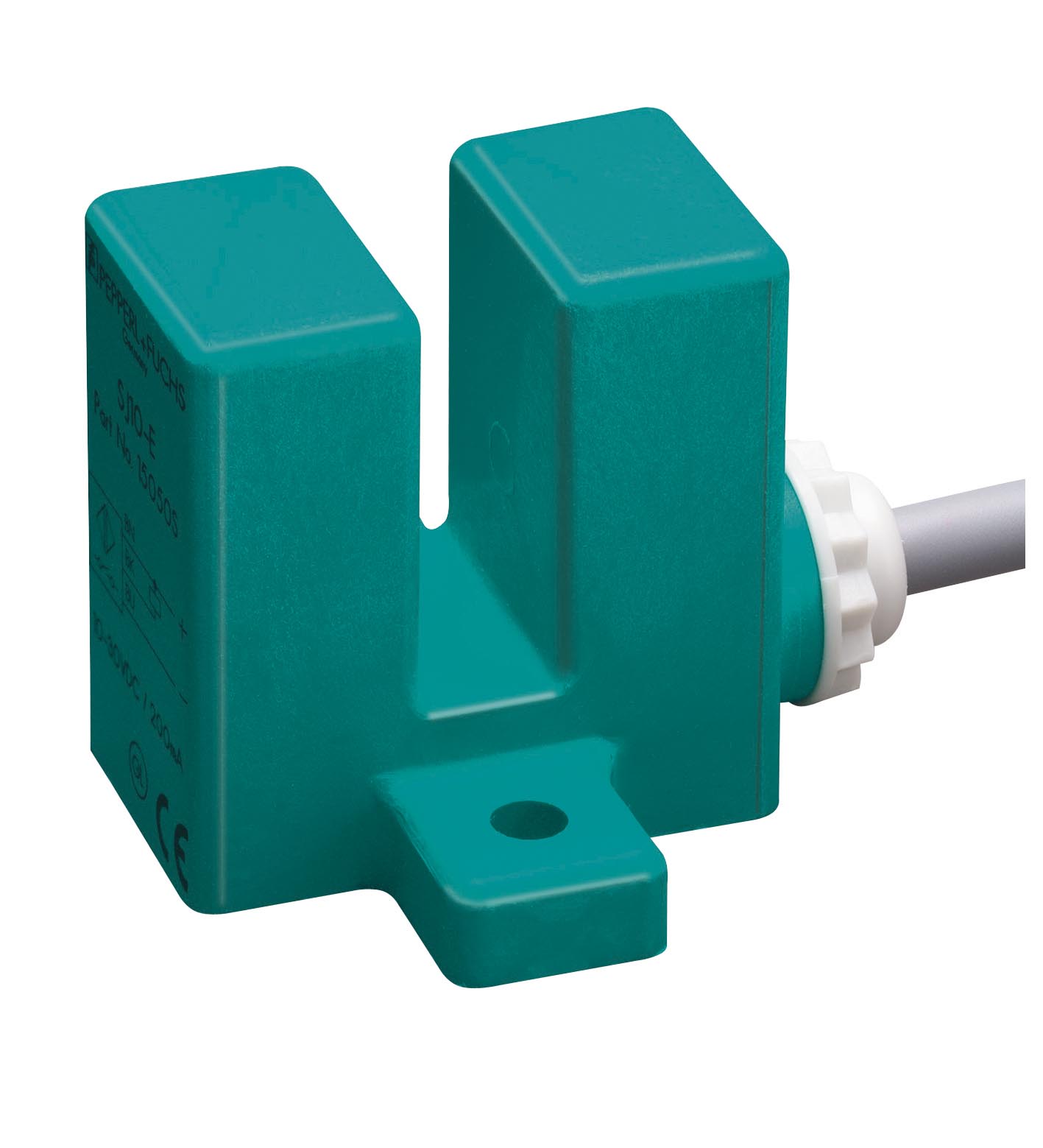

SJ10-E2

Inductive slot sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC...

Inductive slot sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: cable, Housing material: PBT, Degree of protection: IP67, Material: PVC. Switching function: Normally open (NO). Output type: PNP. Slot width: 10 mm. Depth of immersion (lateral): 13.5 ... 16.5 mm. Output polarity: DC. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 1000 Hz. Hysteresis: typ. 5%. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 15 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: cable. Housing material: PBT. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter6.4 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPVCColorGrayNumber of cores3Core cross section0.75 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 6.4 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PVC. Color: Gray. Number of cores: 3. Core cross section: 0.75 mm2. Length: 2 m. Mass: 220 g. Tightening torque, fastening screws: 3 Nm. Dimensions: . Height45 mmWidth55 mmLength44 mm: . Height: 45 mm. Width: 55 mm. Length: 44 mm

Brand	Pepperl Fuchs
Lifecycle status	active
