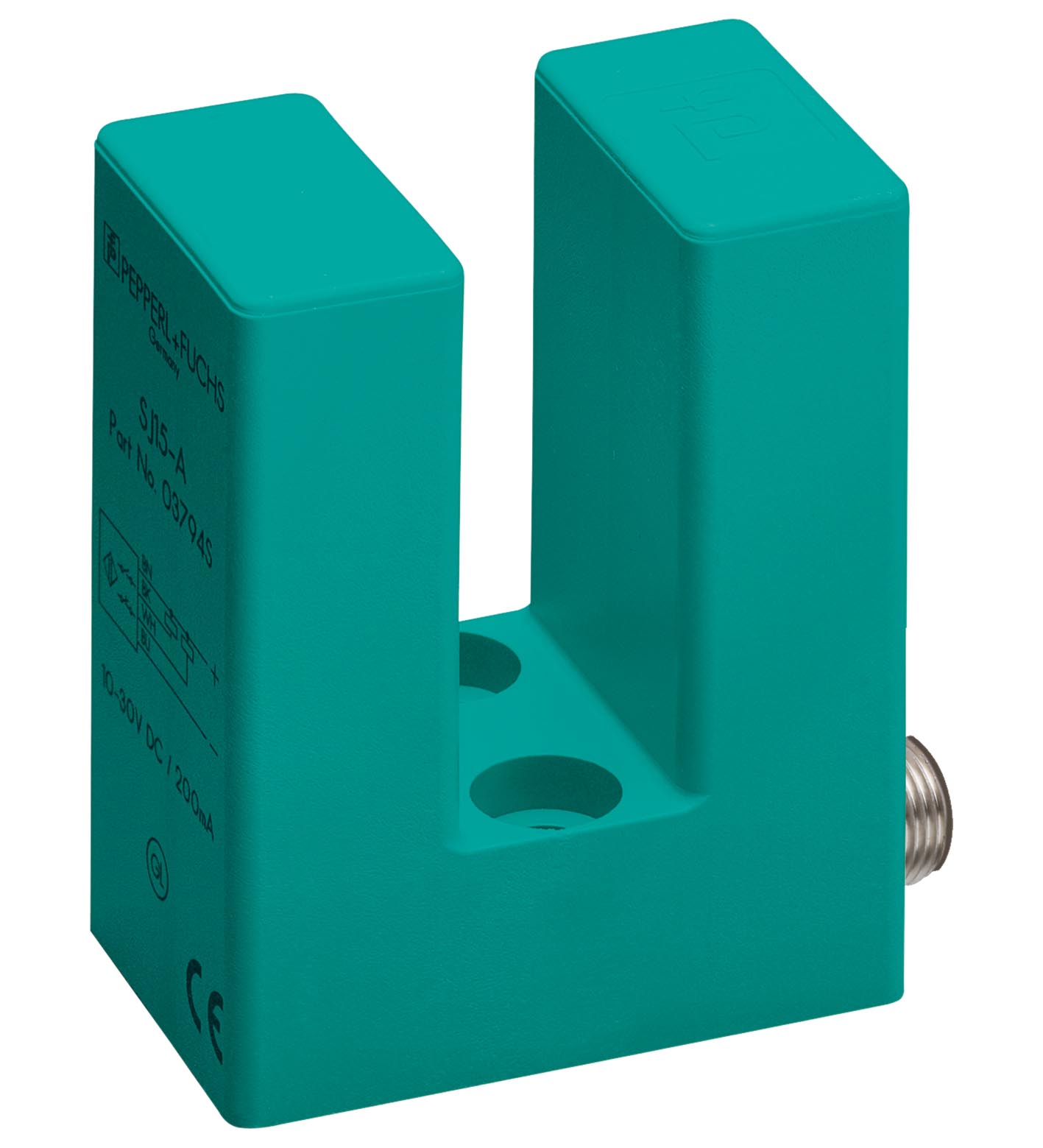

SJ15-A2-V1

Inductive slot sensor. Switching function: complementary, Output type: PNP, Output polarity: DC, Output type: 4-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Typ...

Inductive slot sensor. Switching function: complementary, Output type: PNP, Output polarity: DC, Output type: 4-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: Connector plug, Housing material: PBT, Degree of protection: IP67, Threading: M12 x 1. Switching function: complementary. Output type: PNP. Slot width: 15 mm. Depth of immersion (lateral): 17 ... 20 mm. Output polarity: DC. Output type: 4-wire. Nominal voltage: 8 V. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 500 Hz. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 20 mA. MTTFd: 1136 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: Resistive Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 200 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: PBT. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Mass: 105 g. Dimensions: . Height60 mmWidth30 mmLength48 mm: . Height: 60 mm. Width: 30 mm. Length: 48 mm

Brand	Pepperl Fuchs
Lifecycle status	active
