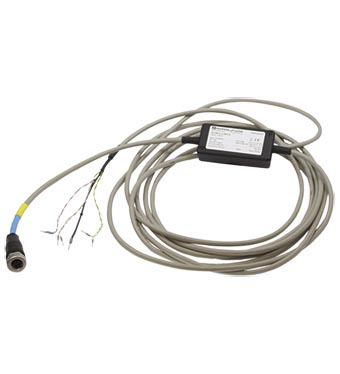

SK-IDM-Z2-J2-5M-S-N

Serial supply cable for corded IDM-Z2-*. Cable barrier for corded IDM-Z2-* handheld readers and base station, Cable-Barrier for corded 1-D and 2-D reader and base station, Enable operation in Zone 2/2...

Serial supply cable for corded IDM-Z2-*. Cable barrier for corded IDM-Z2-* handheld readers and base station, Cable-Barrier for corded 1-D and 2-D reader and base station, Enable operation in Zone 2/22, Serial RS-232/422 Ex ic (via M12 female socket) connection. Type: Cable barrier. Power consumption: 8 ... 30 V DC. Current consumption: 0.5 ... 0.2 A. Interface type: field side (Ex e) : RS-232 / RS-422 (adapter included) Connection side handheld readers and base station : RS-232. Electromagnetic compatibility: . Directive 2014/30/EUEN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011: . Directive 2014/30/EU: EN 61000-6-2:2005 + AC:2005 , EN 61000-6-4:2007 + A1:2011. Operating temperature: -20 ... 70 °C (-4 ... 158 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: 95 % non-condensing. Degree of protection: IP66. Cable: power supply cable: 0.14 mm2 (26 AWG), 2 pindata cable: 0.14 m2 (26 AWG), 2 pin. LengthLmax. 5 m: L. Length: max. 5 m. Mass: approx. 250 g. Dimensions: 80 mm x 20 mm x 40 mm (W x H x D). Certificate: IBExU19ATEXB016XIECEx IBE 19.0026X. MarkingII 3G Ex mc [ic] IIC/IIB T4 GcII 3D Ex mc [ic] IIIC T135°C Dc: . Marking: II 3G Ex mc [ic] IIC/IIB T4 GcII 3D Ex mc [ic] IIIC T135°C Dc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-11:2012 EN 60079-18:2015: . Directive 2014/34/EU: EN IEC 60079-0:2018 EN 60079-11:2012 EN 60079-18:2015. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
