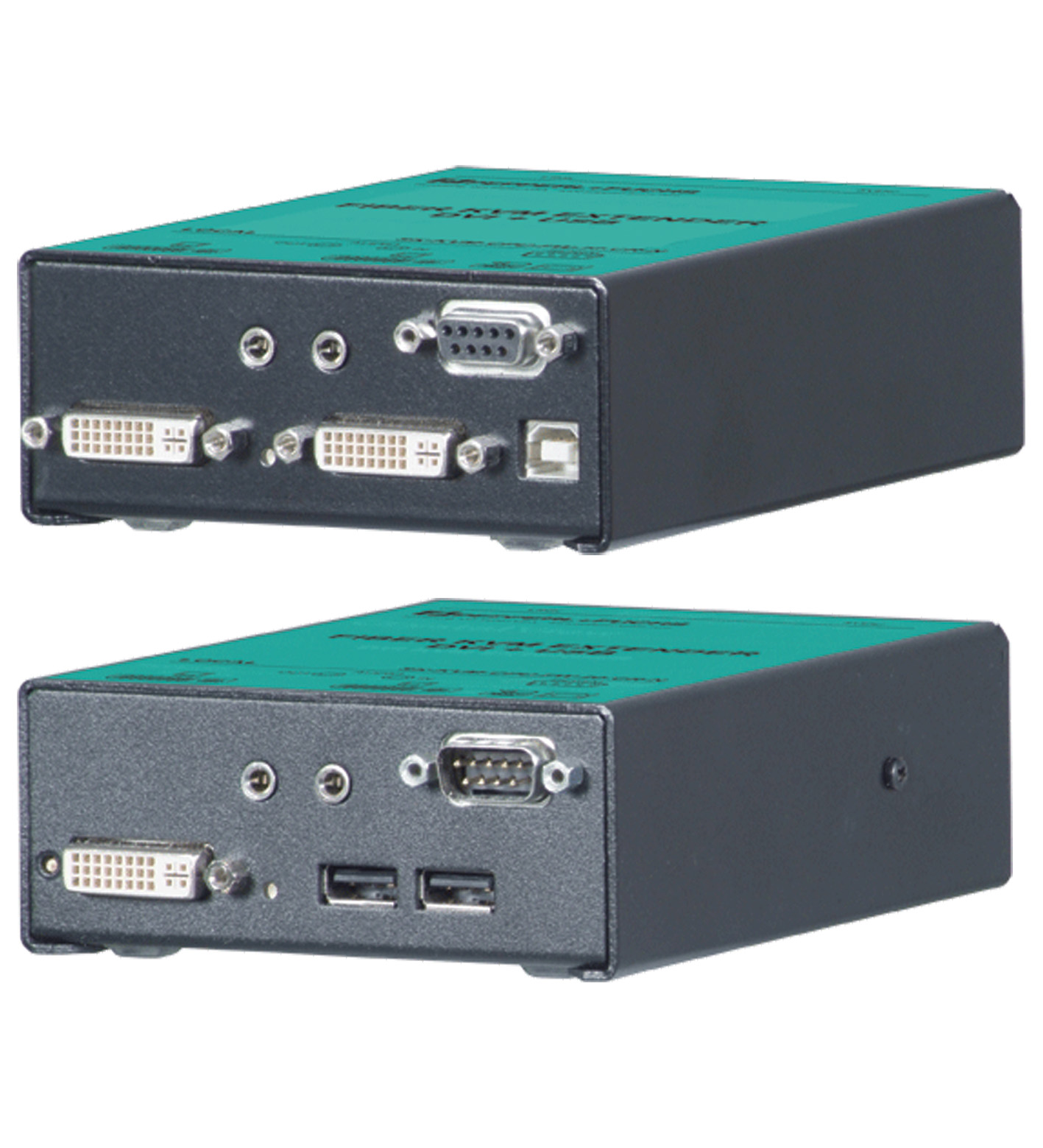

SK-KVM-xxx-CW-20-CR-N Series

Div 2 KVM extender kit. DVI to CAT5 KVM kit, Locate an operator workstation up to 120 m from server or pc, Operate keyboard, mouse, and monitor safely in a Div 2 hazardous area, Transparent operation...

Div 2 KVM extender kit. DVI to CAT5 KVM kit, Locate an operator workstation up to 120 m from server or pc, Operate keyboard, mouse, and monitor safely in a Div 2 hazardous area, Transparent operation between computer and monitor, Automatic skew compensation. Resolution: Maximum resolution: 1920 x 1200 @ 60 Hz. Distance: 120 m ( 400 ft ). Power consumption: 5 V DC @ 10 W max. Indicators: Front panel: power Video check: LED. Input devices: 29-pin DVI-D2 x USB Type A (keyboard and mouse/touch screen)1 x RS-232 (touch screen)1 x RJ45 (CAT5e/6). Baud rate: 19.2 KBd max. Flow control: RTS, CTS, DTR, DSR. Drive capability: 5 V p-p. Impedance: 47 kΩ. Connector type: 3.5 mm stereo jack. Transmission method: 16 bit, 38.4 KHz digitized audio. Speaker: powered. Electromagnetic compatibility: . Directive 89/336/EECEN55022A, EN 55024, EN61000-3-2, EN61000-3-3, IEC6100-4-2, IEC6100-4-3, IEC6100-4-4, IEC6100-4-5: . Directive 89/336/EEC: EN55022A, EN 55024, EN61000-3-2, EN61000-3-3, IEC6100-4-2, IEC6100-4-3, IEC6100-4-4, IEC6100-4-5. Low voltage: . Directive 73/23/EECEN60950: . Directive 73/23/EEC: EN60950. Operating temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -25 ... 60 °C (-13 ... 140 °F). Mass: 0.3 kg. Dimensions: 105 mm x 133 mm x 35 mm (4.1 inch x 5.3 inch x 1.4 inch). UL approval: UL Class I/Div 2

Brand	Pepperl Fuchs
Lifecycle status	active
