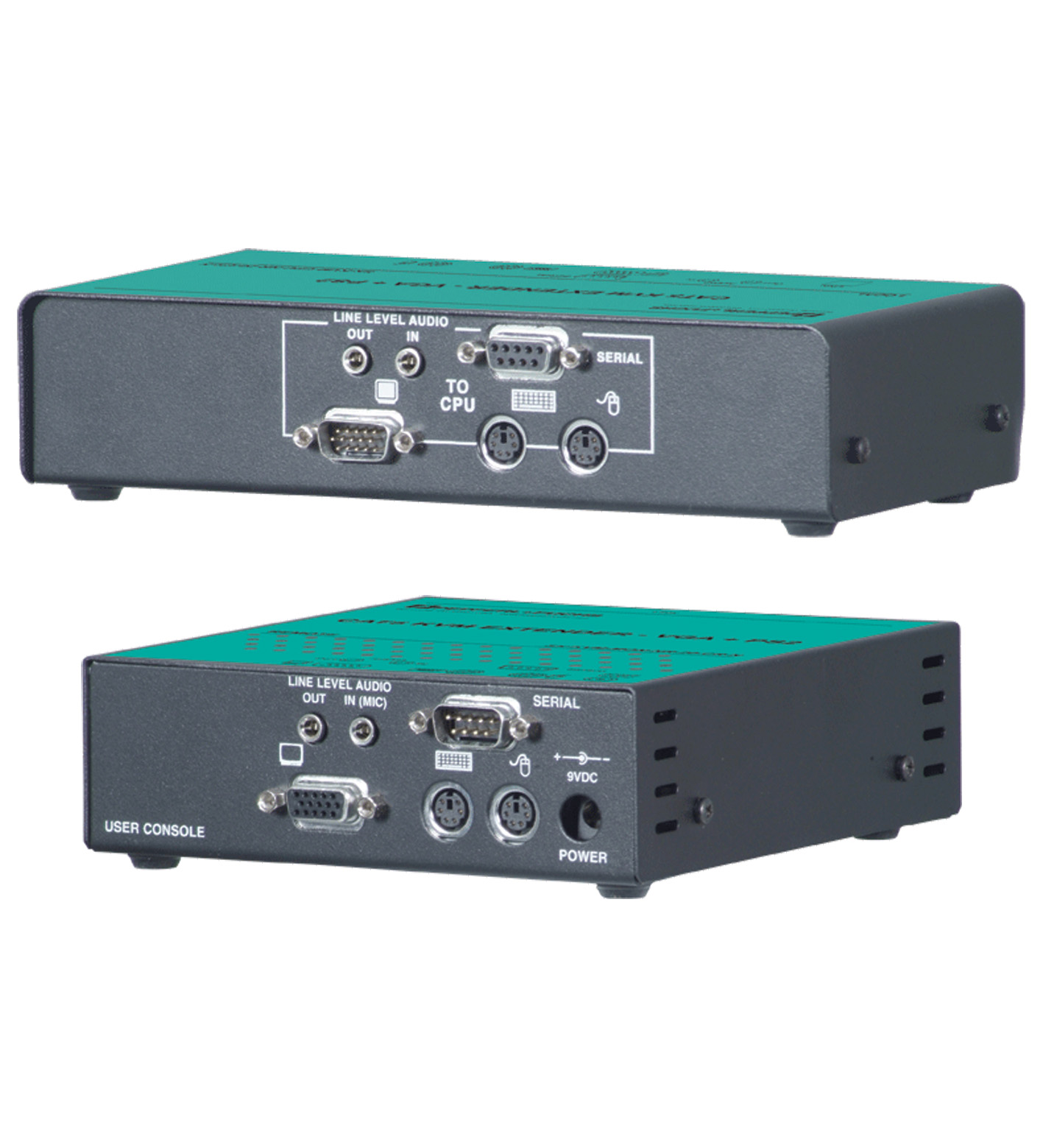

SK-KVM-xxx-NR-20-CR-N Series

Div 2 KVM extender kit. VGA to CAT5 KVM kit, Locate an operator workstation up to 300 m from server or pc, Operate keyboard, mouse, and monitor safely in a Div 2 hazardous area, Easy installation and...

Div 2 KVM extender kit. VGA to CAT5 KVM kit, Locate an operator workstation up to 300 m from server or pc, Operate keyboard, mouse, and monitor safely in a Div 2 hazardous area, Easy installation and operation. Resolution: 1600 x 1200 @ 60 Hz 1280 x 1024 @ 75 Hz. Distance: 200 m (650 ft) @ 1600 x 1200300 m (1000 ft) @ 1280 x 1024. Power consumption: 12 V DC @ 10 W max. Indicators: Video check: LED. Input devices: VGA - HD15M/F2 x PS2 (keyboard and mouse)1 x RS-232 (touch screen)1 x RJ45 (CAT5e/6). Baud rate: 19.2 KBd max. Flow control: RTS, CTS, DTR, DSR. Drive capability: 4 V p-p. Impedance: 47 kΩ. Connector type: 3.5 mm stereo jack. Transmission method: 16 bit, 38.4 KHz digitized audio. Speaker: powered. Electromagnetic compatibility: . Directive 89/336/EECEN55022A, EN 55024, EN61000-3-2, EN61000-3-3, IEC6100-4-2, IEC6100-4-3, IEC6100-4-4, IEC6100-4-5: . Directive 89/336/EEC: EN55022A, EN 55024, EN61000-3-2, EN61000-3-3, IEC6100-4-2, IEC6100-4-3, IEC6100-4-4, IEC6100-4-5. Low voltage: . Directive 73/23/EECEN60950: . Directive 73/23/EEC: EN60950. Operating temperature: 0 ... 45 °C (32 ... 113 °F). Storage temperature: -25 ... 60 °C (-13 ... 140 °F). Mass: 1.3 kg. Dimensions: 197 mm x 100 mm x 35 mm (7.8 inch x 3.9 inch x 1.4 inch). UL approval: UL Class I/Div 2

Brand	Pepperl Fuchs
Lifecycle status	active
