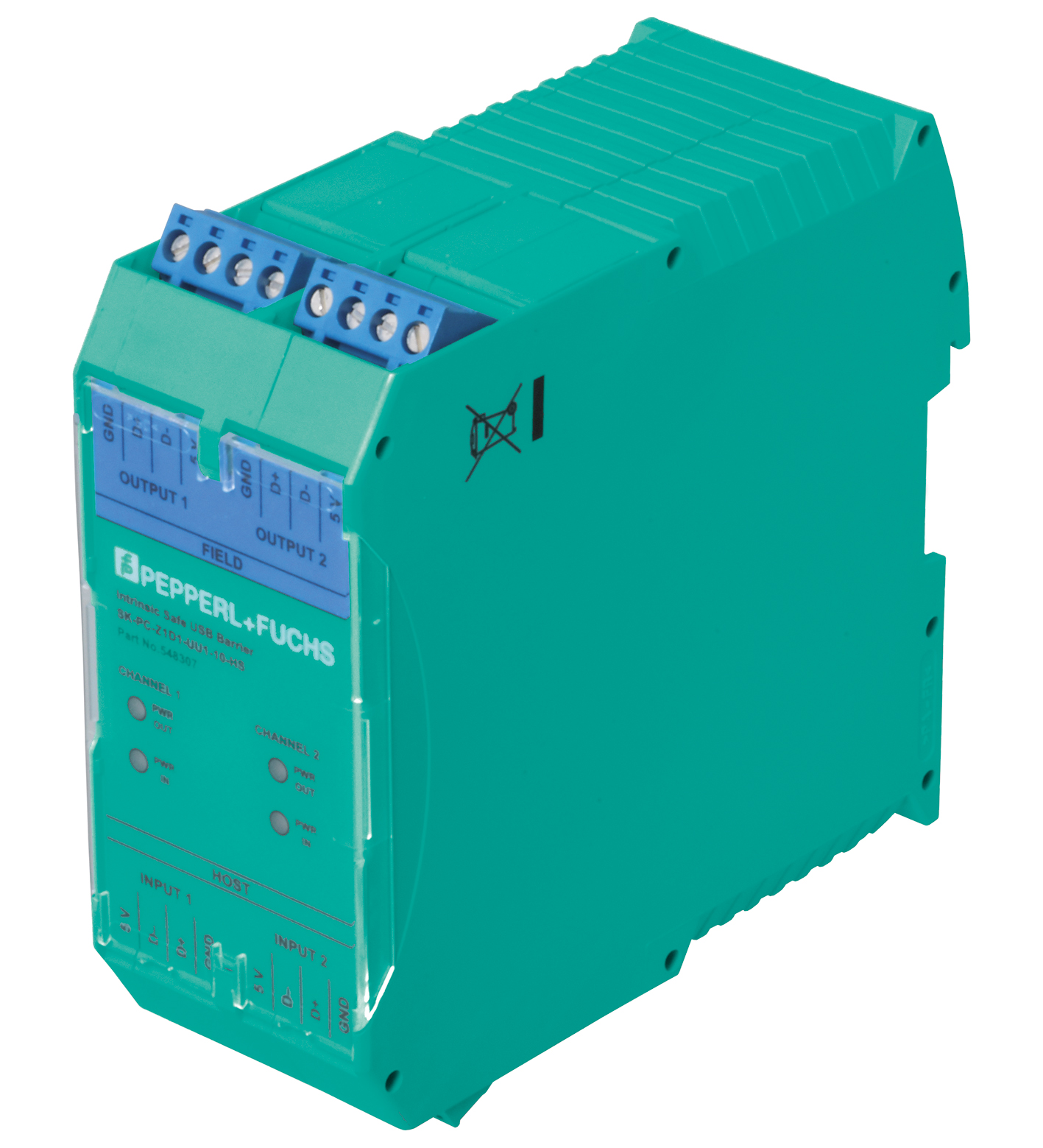

SK-PC-Z1D1-UU1-10-HS
USB Intrinsic Safety Barrier. USB intrinsic safety barrier for stand-alone keyboard applications, For installation in Zone 2 environments, supplies keyboards in Zone 1/21, 2 USB channels, Data rates u...
USB Intrinsic Safety Barrier. USB intrinsic safety barrier for stand-alone keyboard applications, For installation in Zone 2 environments, supplies keyboards in Zone 1/21, 2 USB channels, Data rates up to 480 Mbit/s, Max. cable length 10 m (5 m before device, 5 m after device), Powered via USB, no separate power connection required. Input voltage: 4.75 ... 5.1 V DC (Um = 60 V SELV/PELV). Input current: max. 200 mA. Power consumption: max. 2.7 W. Indicators: LED PWR IN: green: input voltage OK LED PWR OUT: green: output voltage OK. Interface type: 4-screw terminal MSTBT 2.5 HC / 4-STP GY7035 USB 2.0 compatible. Output current: max. 80 mA. Output voltage: 4.4 ... 5 VDC. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations) , EN 61000-6-4:2007+A1:2011: . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations) , EN 61000-6-4:2007+A1:2011. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012-09: . Directive 2011/65/EU (RoHS): EN 50581:2012-09. Operating temperature: -20 ... 60 °C (-4 ... 140 °F) -20 °C ≤ Ta ≤ 60 °C / 70 °C (depending on installation conditions). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 95 % non-condensing. Shock resistance: 18 shocks 15 g , 11 ms all axis, IEC 60068-2-27. Vibration resistance: 10 ... 150 Hz , ± 0.075 mm, 1 g, 10 cycles per axis according to EN 60068-2-6. Degree of protection: IP20. Material: ME MAX 45 2-2 KMGY-2713706 refer to 42-3388. Cable: shielded cables must be used. Mass: approx. 220 g. Dimensions: 45 mm x 99 mm x 114 mm. Mounting: DIN rail mounting. Cable length: 5 m before device , 5 m after device , 10 m total. EU-type examination certificate: EXA 18 ATEX 0054X. Marking II 3(2) G Ex ec [ib Gb] IIC T4 Gc [exsign] II (2) D [Ex ib Db] IIIC: . Marking: II 3(2) G Ex ec [ib Gb] IIC T4 Gc [exsign] II (2) D [Ex ib Db] IIIC. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012. IECEx approval: IECEx EXA 18.0008X. Approved forEx ec [ib Gb] IIC T4 Gc [Ex ib Db] IIICStandardsIEC 60079-0:2017 , IEC 60079-7:2015 , IEC 60079-11:2011: . Approved for: Ex ec [ib Gb] IIC T4 Gc [Ex ib Db] IIIC. Standards: IEC 60079-0:2017 , IEC 60079-7:2015 , IEC 60079-11:2011
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
