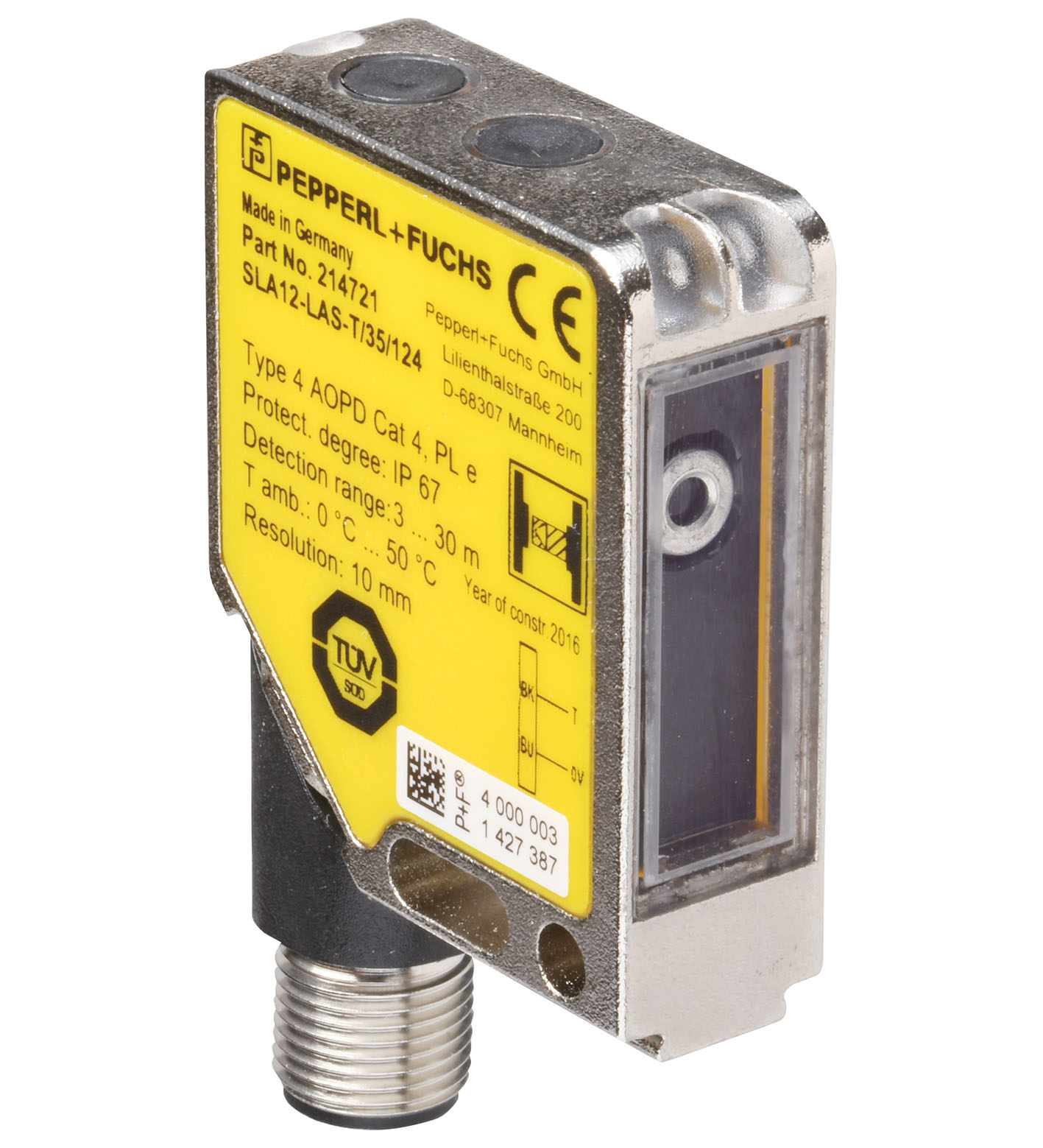

SLA12-LAS-T/35/124

Safety thru-beam sensor transmitter. Sensing range 30 m, Visible red light, pulsed LASER light, Laser class 1, eyesafe, Performance Level PL e, Clearly visible LED functional display and pre-fault ind...

Safety thru-beam sensor transmitter. Sensing range 30 m, Visible red light, pulsed LASER light, Laser class 1, eyesafe, Performance Level PL e, Clearly visible LED functional display and pre-fault indicator on the receiver, Sturdy housing, Waterproof, degree of protection IP67, Operation on control units of SB4 (SafeBox), Construction type(S2): Miniature housing, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Connection: 5-pin M12 x 1 connector with metal thread, 90° rotatable. Emitter: SLA12-LAS-T/35/124. Receiver: SLA12-R/124. Effective detection range: 3 ... 30 m. Light source: laser diode. Light type: modulated visible red light. Laser nominal ratings: . NoteLASER LIGHT , DO NOT STARE INTO BEAMLaser class1Wave length650 nmBeam divergence1 mradPulse length35 µsRepetition rate200 Hz: . Note: LASER LIGHT , DO NOT STARE INTO BEAM. Laser class: 1. Wave length: 650 nm. Beam divergence: 1 mrad. Pulse length: 35 µs. Repetition rate: 200 Hz. Target size: static: 10 mm dynamic: 30 mm (at v = 1.6 m/s of the obstacle). Alignment aid: LED red. Opening angle: < 5 °. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. PFHd: 4.4 E-10. Type: 4. Operation indicator: LED green. Function indicator: LED yellow:1. LED lit constantly: signal > 2 x switching point (operating reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point. Operating voltage: Power supply via control unit. Protection class: III , IEC 61140. Functional safety: ISO 13849-1. Product standard: EN 61496-1 ; IEC 61496-2. Laser safety: IEC 60825-1:2007. CE conformity: CE. UKCA conformity: UKCA. TÜV approval: TÜV SÜD. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: max. 95 %, not condensing. Shock resistance: 10 g , 16 ms ; stationary applications only. Vibration resistance: 1 mm , 10 ... 55 Hz ; stationary applications only. Degree of protection: IP67 according to EN 60529. Connection: 5-pin M12 x 1 connector with metal thread, 90° rotatable. Material: . HousingFrame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC RAL 1021 (yellow)Optical facePlastic pane: . Housing: Frame: nickel plated, die cast zinc, Laterals: glass-fiber reinforced plastic PC RAL 1021 (yellow). Optical face: Plastic pane. Mass: per device 60 g. Dimensions: . Height49 mmWidth15 mmDepth41.5 mm: . Height: 49 mm. Width: 15 mm. Depth: 41.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
