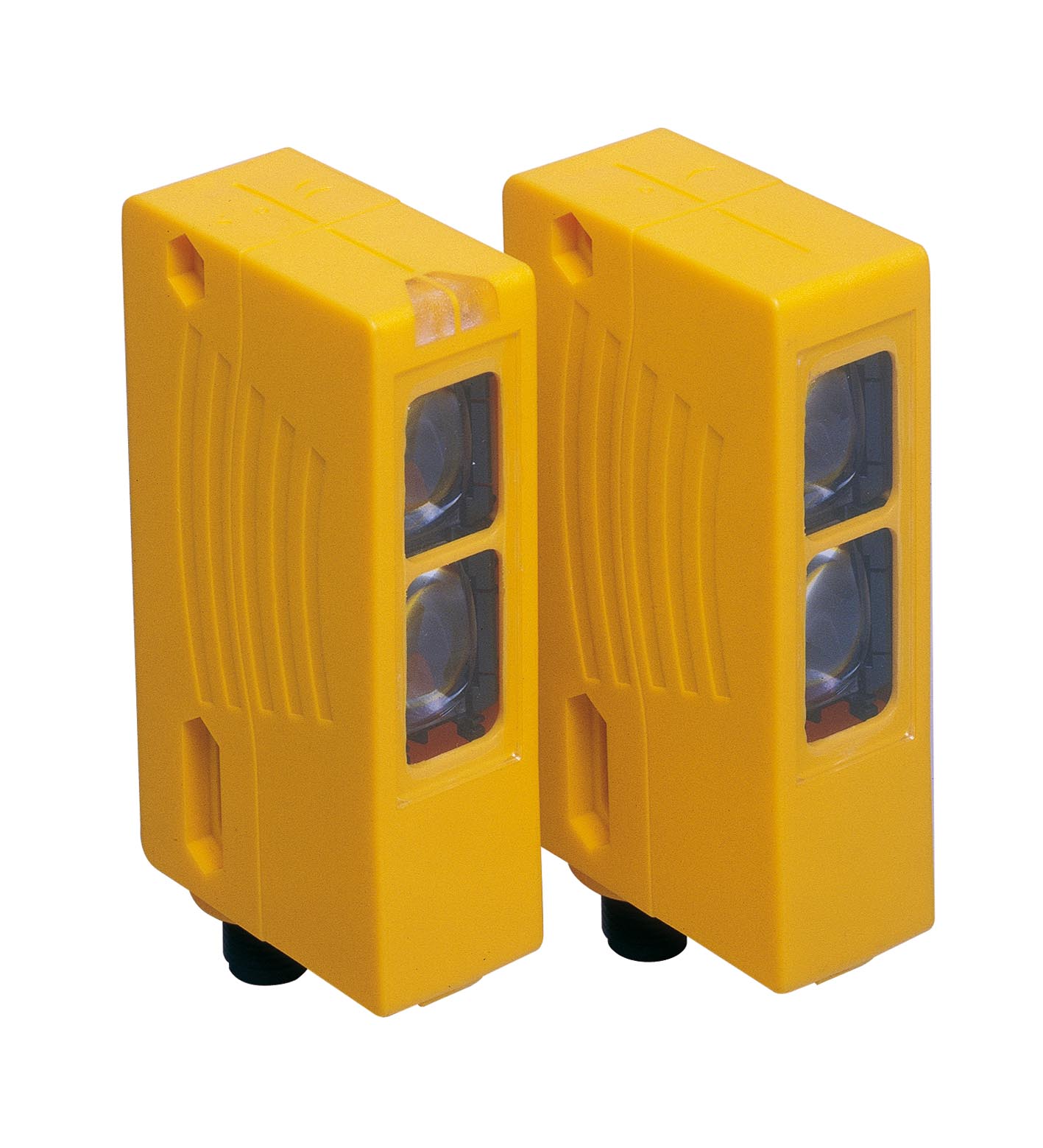

SLA29/73c

Safety thru-beam sensor. Sensing range up to 30 m, Self-monitoring (type 4 according to IEC/EN 61496-1), Red transmission light, Integrated alignment aid, Clearly visible LED functional display and pr...

Safety thru-beam sensor. Sensing range up to 30 m, Self-monitoring (type 4 according to IEC/EN 61496-1), Red transmission light, Integrated alignment aid, Clearly visible LED functional display and pre-fault indicator on the receiver, Sturdy housing, Waterproof, degree of protection IP67, Operation on SB4-series control units (SafeBox), Construction type(S2): Rectangular type, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Category: Cat. 4, Connection: M12 connector, 4-pin. Emitter: SLA29-T/73c. Receiver: SLA29-R/73c. Effective detection range: 0.2 ... 30 m. Threshold detection range: 40 m. Light source: LED. Light type: modulated visible red light. Target size: static: 30 mmdynamic: 40 mm (at v = 1.6 m/s of the obstacle). Alignment aid: LED red in receiver. Opening angle: < 5 °. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. PFHd: 4.4 E-10. Type: 4. Operation indicator: LED green. Function indicator: LED yellow:1. LED lit constantly: signal > 2 x switching point (operating reserve)2. LED flashes: signal between 1 x switching point and 2 x switching point3. LED off: signal < switching point. Operating voltage: Power supply via control unit. Protection class: III , IEC 61140. Functional safety: ISO 13849-1. Product standard: EN 61496-1 ; IEC 61496-2. CE conformity: CE. UKCA conformity: UKCA. UL approval: cULus Listed. TÜV approval: TÜV SÜD. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: max. 95 %, not condensing. Shock resistance: 10 g , 16 ms ; stationary applications only. Vibration resistance: 1 mm , 10 ... 55 Hz ; stationary applications only. Degree of protection: IP67 according to EN 60529. Connection: M12 connector, 4-pin. Material: . HousingPlastic ABS/PC , yellowOptical facePlastic pane: . Housing: Plastic ABS/PC , yellow. Optical face: Plastic pane. Mass: per device 70 g. Dimensions: . Height88 mmWidth25.8 mmDepth54.3 mm: . Height: 88 mm. Width: 25.8 mm. Depth: 54.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
