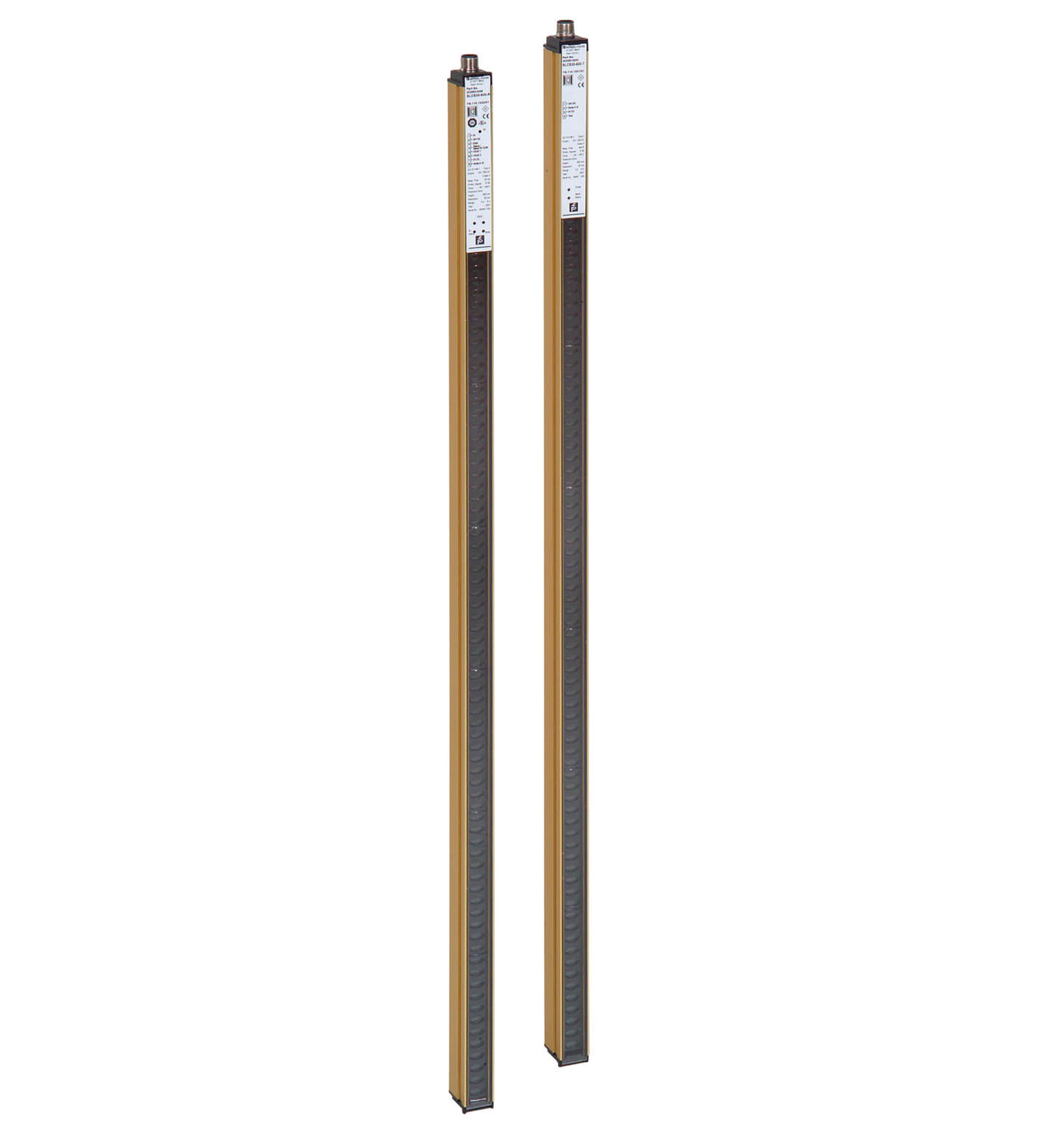

SLCS90

Safety light curtain. Resolution 90 mm, Protection field height up to 2400 mm, Self-monitoring (type 4 according to IEC/EN 61496-1), SIL3 (IEC 61508), Degree of protection IP67, Temperature range -35...

Safety light curtain. Resolution 90 mm, Protection field height up to 2400 mm, Self-monitoring (type 4 according to IEC/EN 61496-1), SIL3 (IEC 61508), Degree of protection IP67, Temperature range -35 ... 60°C (-31 ... 140 °F), Slim design, mounting on three sides, Protection field height: see Table 1, max. 2400 mm, Operating mode: Startup/restart disable, deactivateable, Safety Integrity Level (SIL): SIL 3, Performance level (PL): PL e, Signal output: PNP semiconductor , monitored for short and cross circuits. Effective detection range: 0.4 ... 8 m. Light source: IRED. Light type: modulated infrared light , 850 nm. Protection field height: see Table 1, max. 2400 mm. Operating mode: Startup/restart disable, deactivateable. Optical resolution: 90 mm. Opening angle: < 5 °. Ambient light limit: Not sensitive to ambient light in accordance with IEC 61496-2. UL File Number: E215245. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. PFHd: Depending on the protection field height; see Manual. Type: 4. Operation indicator: green: Power on. Function indicator: Green: OSSD ON , Red: OSSD OFF. Status indicator: Transmitter unit: LED yellow: Mode, test or error Receiver: LED yellow: Start readiness, operating reserve, or error. Operating voltage: 24 V DC (-20%, +30%) ; Power supply with safe isolation: 24 V DC. No-load supply current: Transmitter unit:≤ 150 mA Receiver: ≤ 150 mA (without outputs). Protection class: III , IEC 61140. Power consumption: Transmitter unit: 5 W Receiver: 15 W. Input type: Transmitter unit test. Input format: Break contact. Switching voltage: 24 V DC. Input current: 5 mA. Input type: Transmitter unit, mode A/B. Function: Beam Code A: open or 0 VBeam Code B: 24 V DC, 5 mA. Input type: Receiver unit relay monitor. Input format: Break contact. Switching voltage: 24 V DC. Input current: 5 mA. Input type: Receiver unit, start release. Input format: Break contact. Input current: 5 mA. Input type: Receiver unit, mode A/B (see transmitter unit, mode A/B). Response time: see Table 1, max. 17 ms. Output type: Receiver unit OSSD. Signal output: PNP semiconductor , monitored for short and cross circuits. Switching voltage: ON: UB - 2 V; OFF: < 1 V. Switching current: ON: max. 0.1 A; OFF: < 5 µA. Output type: Receiver signal output start readiness. Signal output: PNP-semiconductor, short-circuit protected, 0.1A. Functional safety: ISO 13849-1 ; EN 61508 part1-4. Product standard: EN 61496-1 ; IEC 61496-2. Photobiological safety: Risk group 0 according to IEC 62471. CE conformity: CE. UKCA conformity: UKCA. UL approval: cULus Listed. TÜV approval: TÜV SÜD. Ambient temperature: -35 ... 60 °C (-31 ... 140 °F). Storage temperature: -35 ... 70 °C (-31 ... 158 °F). Relative humidity: max. 95 %, not condensing. Shock resistance: 10 g , 16 ms ; stationary applications only. Vibration resistance: 0.35 mm , 10 ... 55 Hz ; stationary applications only. Housing length L: see table 2. Degree of protection: IP67 , For indoor use only. Connection: Transmitter unit: 4-pin, M12 x 1 connector Receiver: 8-pin, M12 x 1 connector Cable cross section min. 0.25 mm2 Max. cable length 50 m. Material: . Housingextruded aluminum section , gold anodizedOptical facePlastic pane , Transparent polycarbonate: . Housing: extruded aluminum section , gold anodized. Optical face: Plastic pane , Transparent polycarbonate. Mass: see table 2. Dimensions: . Width20 mmDepth30 mm: . Width: 20 mm. Depth: 30 mm. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
