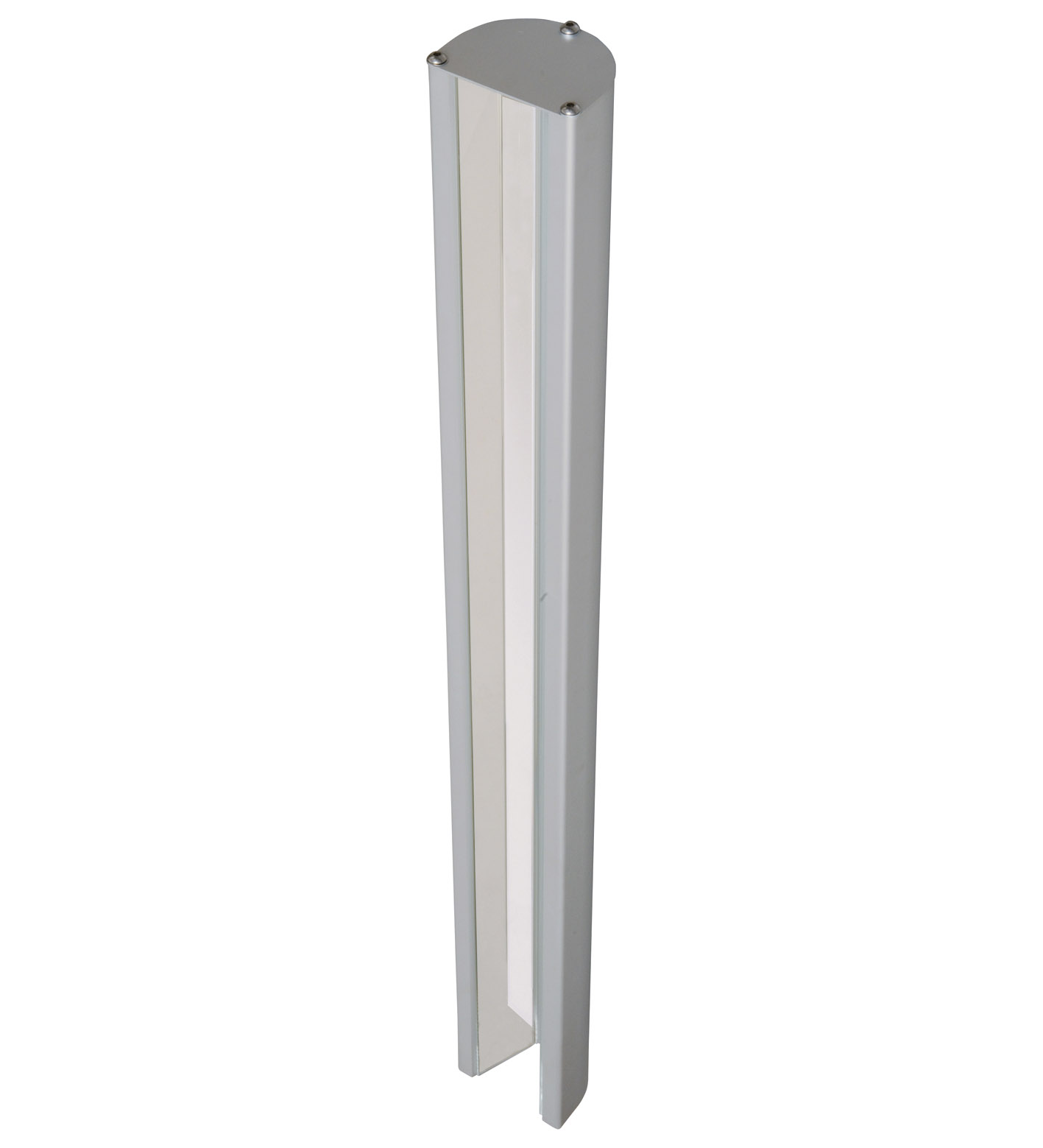

SLCT-M-01-1500

Accessories Safety. Rotation-invariant deflection of a light beam by 90° in the plane of incidence, making it highly vibration-resistant, Translation-free deflection with no lateral beam shift with OM...

Accessories Safety. Rotation-invariant deflection of a light beam by 90° in the plane of incidence, making it highly vibration-resistant, Translation-free deflection with no lateral beam shift with OMH-SLCT-200 floor mount, Silver-coated mirror glass, Mirror glass with low light absorption, Up to ∅ 48 mm pencil of rays in the plane of incidence, Safety Series: SLCT / SLCS. Setting angle: ± 5 ° with product OMH-SLCT-200. Tilting angle: ± 2.5 ° with product OMH-SLCT-200. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: 80 % , noncondensing. Housing length L: 1480 mm. Material: . Housinganodized aluminum ; glass: . Housing: anodized aluminum ; glass. Mass: approx. 9 kg. Dimensions: . Length1480 mm: . Length: 1480 mm. Scope of delivery: Inclined mirror, cover plate The three fillister head screws for the cover plate are supplied with the floor mount. Safety Series: SLCT / SLCS

Brand	Pepperl Fuchs
Lifecycle status	active
