Pepperl Fuchs

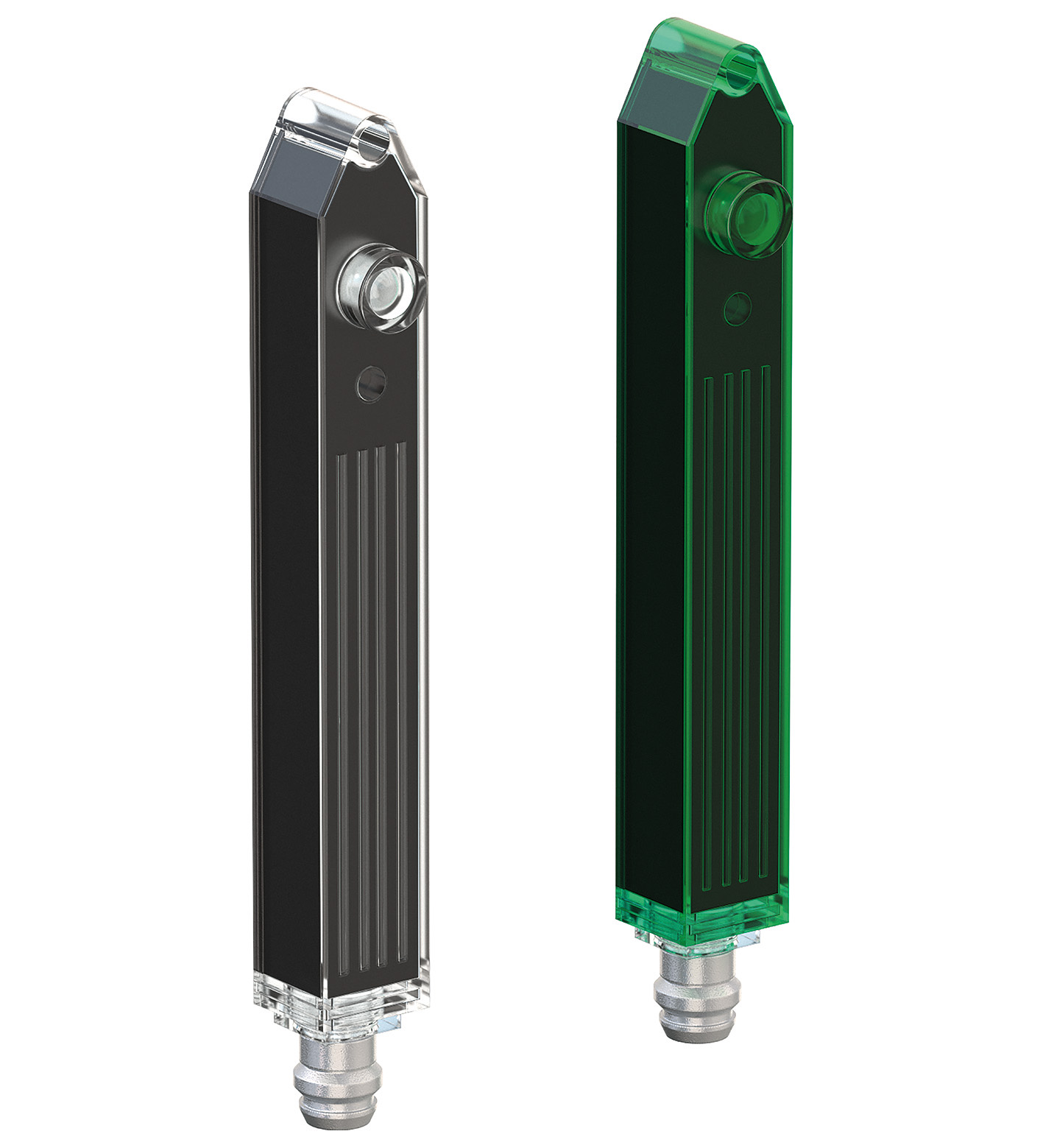

SLENDER-13M-E5-V31

Thru-beam sensor. Single-beam monitoring with extremely narrow sensor, Integrated circuit, Test, Simple installation - Plug & Play, Ideal for installation in door profiles or frames, Construction type(S2): Rectangular type, Light source: IRED, Light type: modulated infrared light 950 nm, Operating voltage: 10 ... 30 V DC, Test input: available, Output type: PNP, Switching type: light/dark on selectable programmable, Signal output: max. 200 mA, Degree of protection: IP67 according to EN 60529. Emitter: SLENDER-T. Receiver: SLENDER-R. Effective detection range: 0.5 ... 13 m. Threshold detection range: 18 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 950 nm. Marking: CE. Diameter of the light spot: approx. 4.8 m at a distance of 13 m. Opening angle: 20 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: Emitter: LED green. Function indicator: receiver LED green: Light beam is interrupted LED lights up red when output is active. Operating voltage: 10 ... 30 V DC. Operating current: Emitter: ≤ 25 mA Receiver: ≤ 10 mA. Test input: available. Output type: PNP. Switching type: light/dark on selectable programmable. Signal output: max. 200 mA. Switching voltage: max. 30 V DC. Short-circuit-proof: yes. Energized/De-energized delay: when the light beam is unobstructed again, the relay also switches 25 ms Delay. Response time: ≤ 25 ms. Product standard: EN 61000-6-2, EN 61000-6-3. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Relative humidity: 90 % , noncondensing. Degree of protection: IP67 according to EN 60529. Connection: M8 connector, 4-pin. Material: . HousingPC transparent: . Housing: PC transparent. Mass: 12 g. Dimensions: . Height83 mmWidth12 mmDepth12.5 mm: . Height: 83 mm. Width: 12 mm. Depth: 12.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
