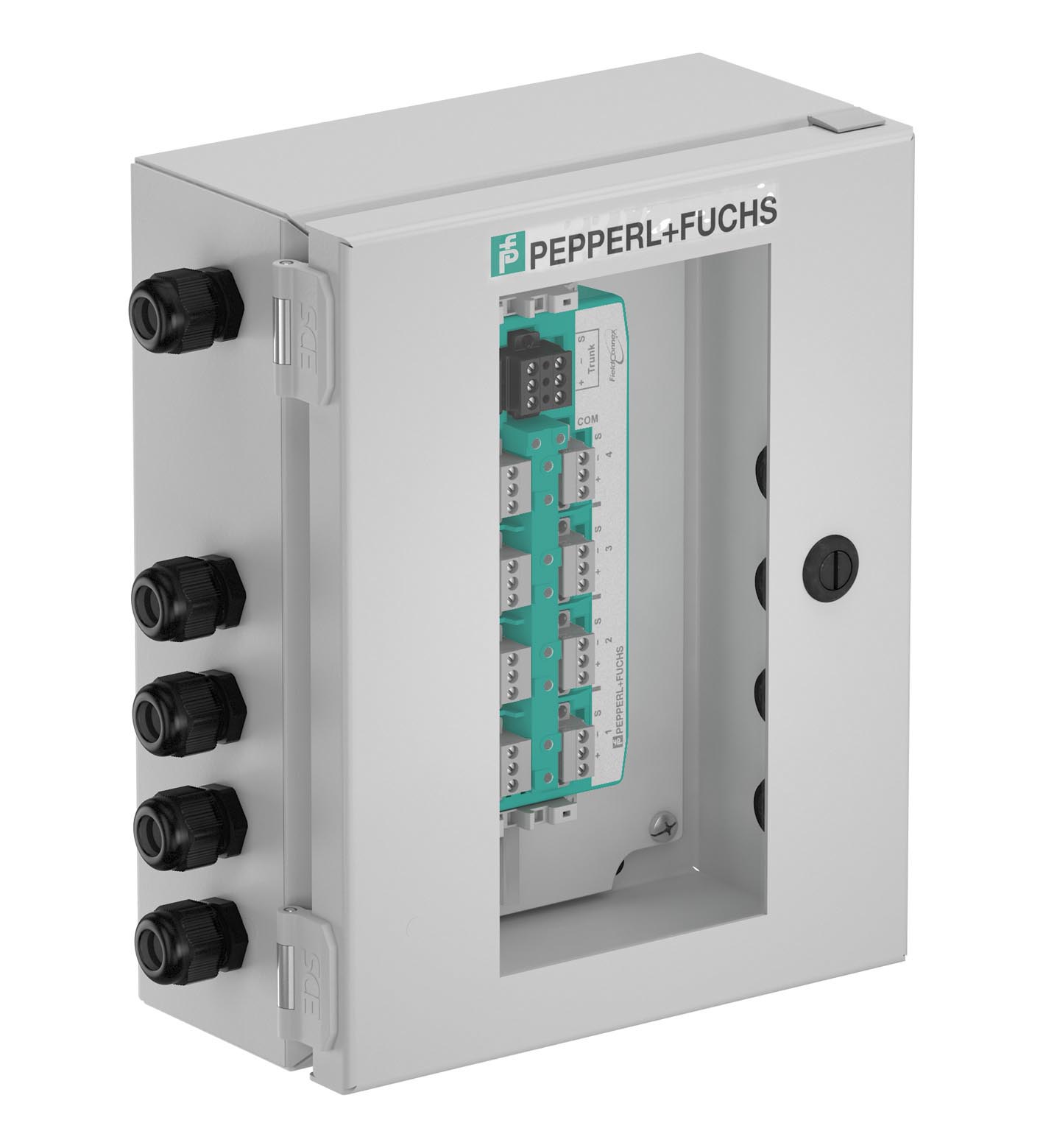

SPJB-**-CS*.***

Segment Protector Junction Box, Carbon Steel. Intrinsically safe (Ex ic)/non-incendive outputs, Carbon steel, NEMA 4, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION...

Segment Protector Junction Box, Carbon Steel. Intrinsically safe (Ex ic)/non-incendive outputs, Carbon steel, NEMA 4, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation. Design / Mounting: Outside installation. Installed components: Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.. Degree of protection: EN 60529. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % , no moisture condensation. Enclosure cover: hinged door with cam lock. Degree of protection: IP66, NEMA 4, NEMA 4X, NEMA 12. Cable entry: cable gland and stopping plug options see separate table. Material: . HousingSteelSurfacegray paintSealoil-resistant, one pieceMaterial thicknessenclosure body, enclosure cover: 1.6 mm window: 6 mm: . Housing: Steel. Surface: gray paint. Seal: oil-resistant, one piece. Material thickness: enclosure body, enclosure cover: 1.6 mm window: 6 mm. Dimensions: (W x H x D) 203 x 254 x 102 mm window size: 197 x 95 mm. Mounting: thru-holes Ø6.4 mm. Grounding: grounding bolt on enclosure body and enclosure cover

Brand	Pepperl Fuchs
Lifecycle status	active
