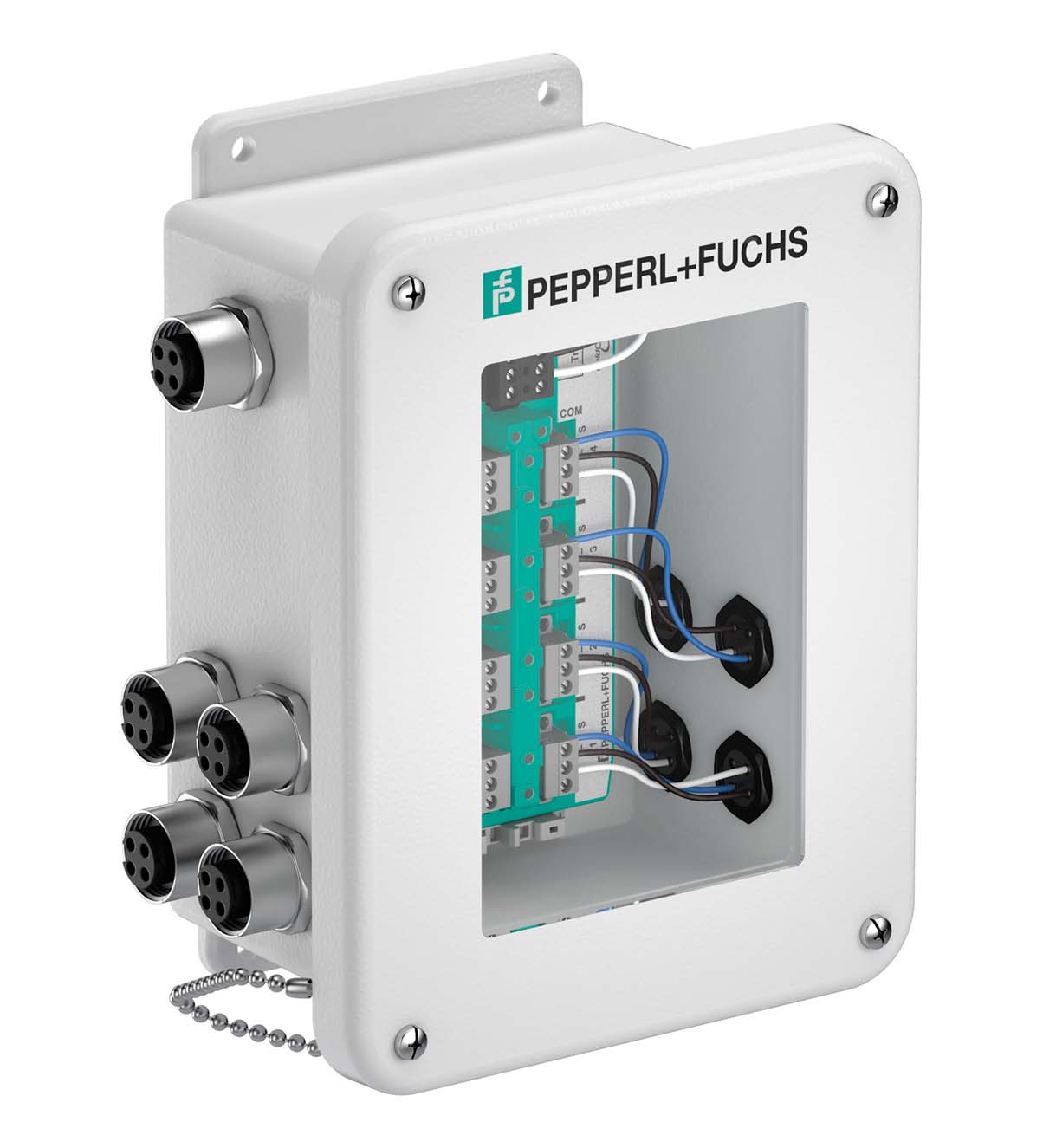

SPJB-**-FB*.***

Segment Protector Junction Box, Polyester (GRP). Intrinsically safe (Ex ic)/non-incendive outputs, Glass fiber reinforced polyester, NEMA 4x, Configurable cable entries for trunk and spurs, Packaged s...

Segment Protector Junction Box, Polyester (GRP). Intrinsically safe (Ex ic)/non-incendive outputs, Glass fiber reinforced polyester, NEMA 4x, Configurable cable entries for trunk and spurs, Packaged solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, USA, Canada, Device coupler location: Division 2 - high-power trunk, Instrument location / spur protection: Division 2 - all relevant types of protection, Function: Device coupler, Design / Mounting: Outside installation. Design / Mounting: Outside installation. Installed components: Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % , no moisture condensation. Enclosure cover: detachable cover with stainless steel safety chain. Degree of protection: NEMA 6P, NEMA 12. Cable entry: cable gland and stopping plug options see separate table. Material: . Housingpolyester , impact resistant, glass fiber reinforcedSealPolyurethane (PUR) , one-pieceMaterial thicknessenclosure body: 4 mmenclosure cover: 3 mm: . Housing: polyester , impact resistant, glass fiber reinforced. Seal: Polyurethane (PUR) , one-piece. Material thickness: enclosure body: 4 mmenclosure cover: 3 mm. Dimensions: (W x H x D) 191 x 244 x 121 mm. Mounting: Flanged mounting Ø8 mm holes

Brand	Pepperl Fuchs
Lifecycle status	active
