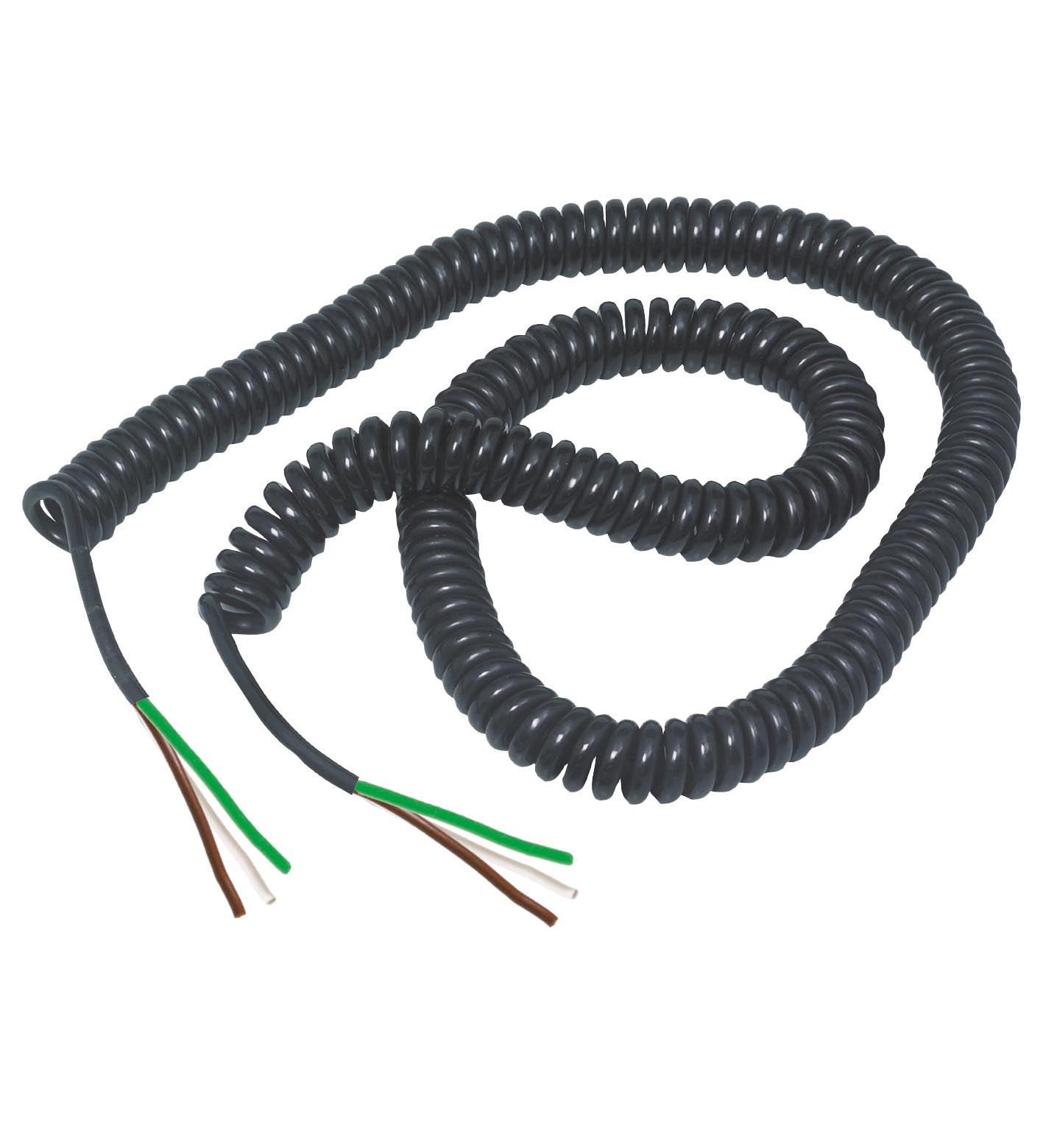

SPK 3x0,5mm² BL750/200/500

Bulk Spiral Cable. Spiral Cable, PUR/PUR, 3-core black. Customization: sheath stripped , with wire end ferrule. Operating voltage: max. 250 V AC/DC. Product standard: on the basis of DIN VDE 0812. Amb...

Bulk Spiral Cable. Spiral Cable, PUR/PUR, 3-core black. Customization: sheath stripped , with wire end ferrule. Operating voltage: max. 250 V AC/DC. Product standard: on the basis of DIN VDE 0812. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter5 mmSheath colorblack (similar to RAL 9005)Number of cores3Core cross section0.5 mm2Cores colorCore 1: white Core 2: brown Core 3: greenCore construction64 x 0.1 mm ∅LengthL1.45 m extension length max. 3 m BL: 750 mm A1: 200 mm A2: 34 mm A3: 6 mm B1: 500 mm B2: 34 mm B3: 6 mmCable codeLi F 12Y 11Y 3 x 0,5: . Sheath diameter: 5 mm. Sheath color: black (similar to RAL 9005). Number of cores: 3. Core cross section: 0.5 mm2. Cores color: Core 1: white Core 2: brown Core 3: green. Core construction: 64 x 0.1 mm ∅. Length: 1.45 m extension length max. 3 m BL: 750 mm A1: 200 mm A2: 34 mm A3: 6 mm B1: 500 mm B2: 34 mm B3: 6 mm. Cable code: Li F 12Y 11Y 3 x 0,5. Mass: 240 g. Halogen-free: yes. Cable: . SheathingTMPUCoresbare copper (Cu)Core insulationTPE-EUV resistanceyesOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyes: . Sheathing: TMPU. Cores: bare copper (Cu). Core insulation: TPE-E. UV resistance: yes. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes

Brand	Pepperl Fuchs
Lifecycle status	active
