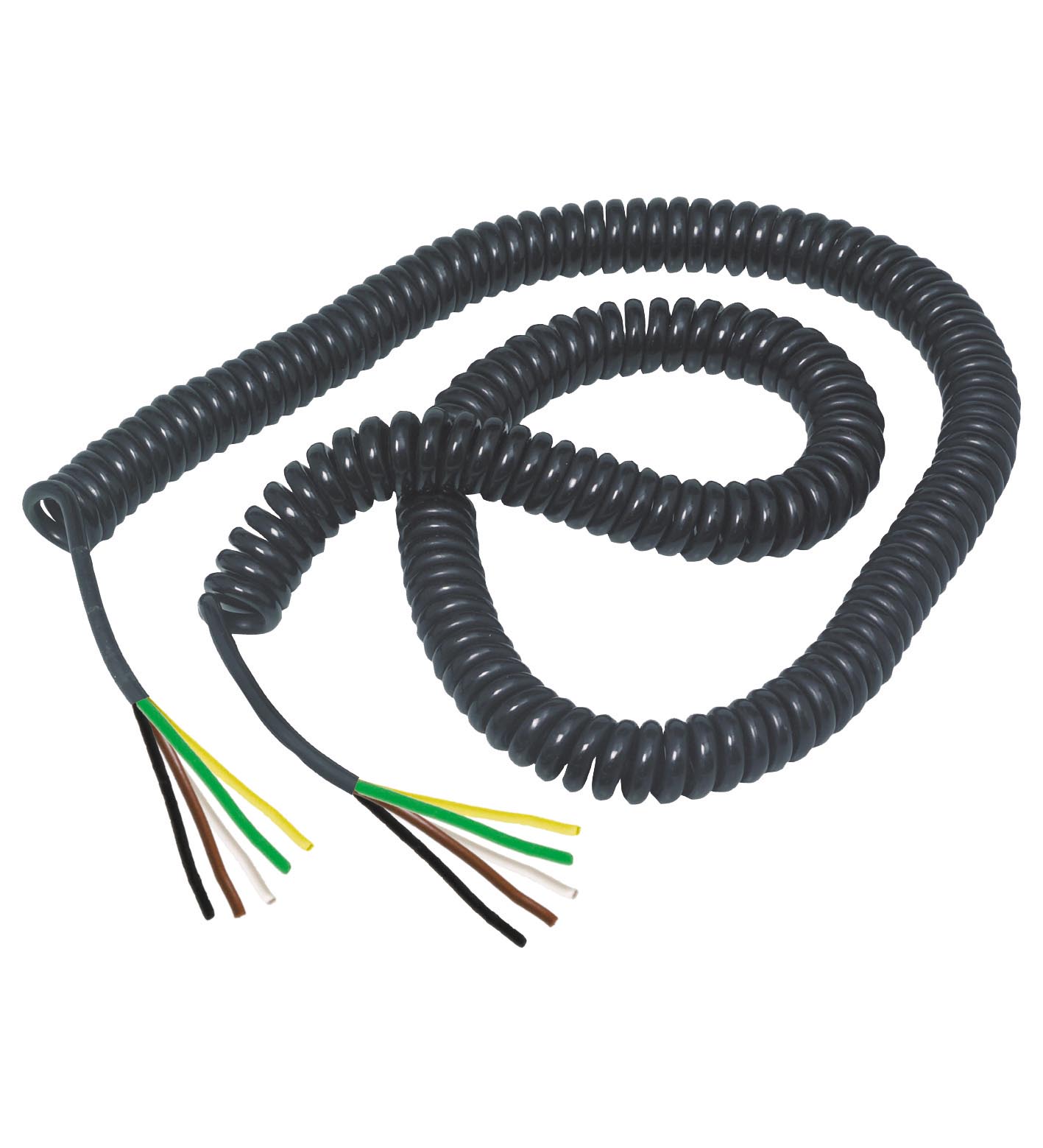

SPK 5x0,25mm² BL500/1000/200

Bulk Spiral Cable. Spiral Cable, PUR/PUR, 5-core black. Customization: sheath stripped , with wire end ferrule. Operating voltage: max. 250 V AC/DC. Product standard: on the basis of DIN VDE 0812. Amb...

Bulk Spiral Cable. Spiral Cable, PUR/PUR, 5-core black. Customization: sheath stripped , with wire end ferrule. Operating voltage: max. 250 V AC/DC. Product standard: on the basis of DIN VDE 0812. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter5.8 mmSheath colorblack (similar to RAL 9005)Number of cores5Core cross section0.25 mm2Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: blackCore construction65 x 0.07 mm ∅LengthL1.7 m extension length max. 2 m BL: 500 mm A1: 1000 mm A2: 74 mm A3: 6 mm B1: 200 mm B2: 34 mm B3: 6 mmCable codeLi F 11Y 11Y 5 x 0,25: . Sheath diameter: 5.8 mm. Sheath color: black (similar to RAL 9005). Number of cores: 5. Core cross section: 0.25 mm2. Cores color: Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: black. Core construction: 65 x 0.07 mm ∅. Length: 1.7 m extension length max. 2 m BL: 500 mm A1: 1000 mm A2: 74 mm A3: 6 mm B1: 200 mm B2: 34 mm B3: 6 mm. Cable code: Li F 11Y 11Y 5 x 0,25. Mass: 220 g. Halogen-free: yes. Cable: . SheathingTMPUCoresbare copper (Cu)Core insulationTMPUUV resistanceyesOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyes: . Sheathing: TMPU. Cores: bare copper (Cu). Core insulation: TMPU. UV resistance: yes. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes

Brand	Pepperl Fuchs
Lifecycle status	active
