ST 04

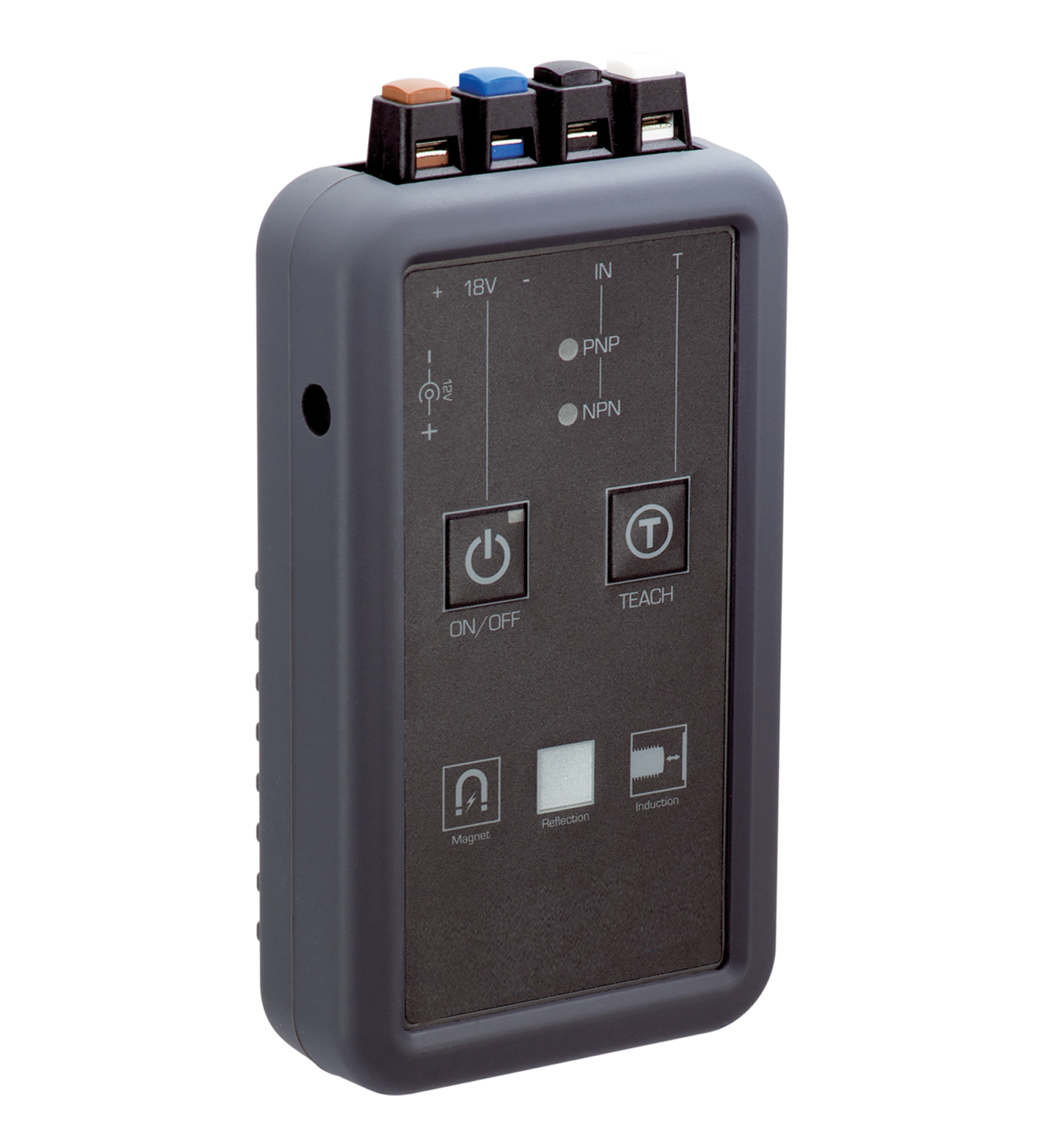

Sensor tester. Sensor tester, Two LEDs (NPN/PNP) for displaying the switching state, Test areas on the device: magnet, reflection, induction, Suitable for ultrasonic sensors, Usable for 3- and 4-wire...

Sensor tester. Sensor tester, Two LEDs (NPN/PNP) for displaying the switching state, Test areas on the device: magnet, reflection, induction, Suitable for ultrasonic sensors, Usable for 3- and 4-wire sensors in NPN- and PNP-technique as well as with push-pull outputs, Easy connection due to quick-action clamp terminals. Control elements: membrane keys : ON / OFF TEACH. LED green: operating. LED yellow: switching state. Operating voltage: input voltage 4.5 V DC input voltage 12 V DC with Power supply output voltage 18 V DC. No-load supply current: 40 mA. Current loading capacity: max. 60 mA battery operated , 240 mA with Power supply. Degree of protection: EN 60529. Ambient temperature: -20 ... 40 °C (-4 ... 104 °F). Degree of protection: IP21. Connection: 4x quick-action clamp terminal brown L+ black IN white TEACH blue L-. Material: . Housingblack ABSProtective sleevesilicone: . Housing: black ABS. Protective sleeve: silicone. Mass: 394 g. Dimensions: . Height141 mmWidth82 mmDepth34 mm: . Height: 141 mm. Width: 82 mm. Depth: 34 mm. Note: suitable for PNP , NPN and sensors with Push-pull (4 in 1) output. Scope of delivery: 1x Sensor tester , 1x silicone protective sleeve. Optional accessories: Sensor connecting cables CBL-SET-ST 04 Power supply 12 V DC, barrel connector outer ∅ 3.5 mm, inner ∅ 1.5 mm. Necessary accessories: 3x battery size AA 1.5 V (not included with delivery)

Brand	Pepperl Fuchs
Lifecycle status	active
