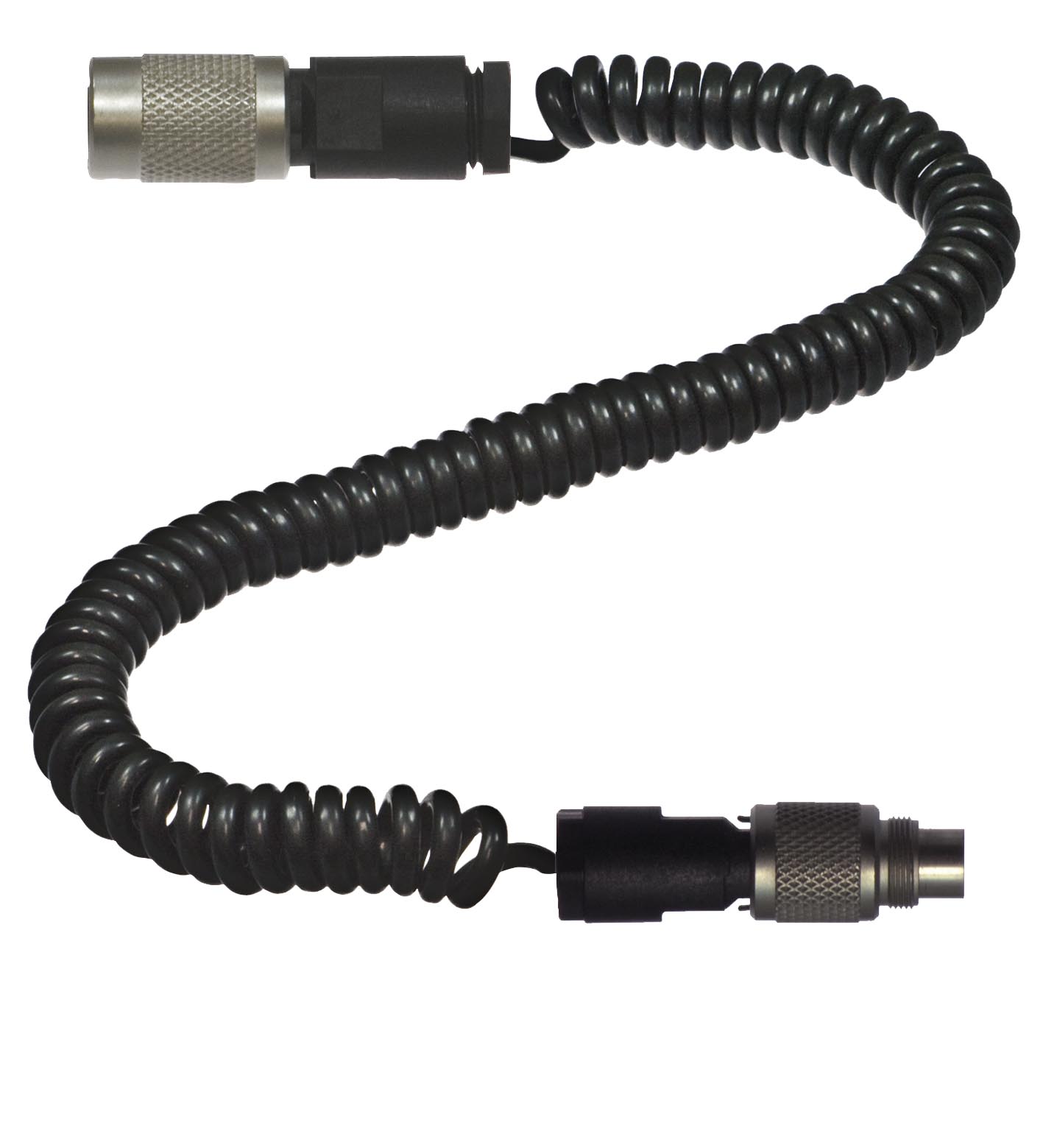

ST 128

Connection cable. Double-ended cordset, M9 to M9, PUR cable, 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Connection 2: plug. Construction type 2: st...

Connection cable. Double-ended cordset, M9 to M9, PUR cable, 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Connection 2: plug. Construction type 2: straight. Threading 2: M9. Operating voltage: max. 125 V DC. Operating current: max. 3 A. Volume resistance: < 3 mΩ. Ambient temperature: Body: -40 ... 85 °C (-40 ... 185 °F) Cable: -25 ... 70 °C (-13 ... 158 °F). Pollution degree: 1. Degree of protection: IP40. Cable code: Li 12Y 11Y 4 x 0.14. Material: . ContactsCuSnContact surfaceAuBodyPA , blackCore insulationTPE-E: . Contacts: CuSn. Contact surface: Au. Body: PA , black. Core insulation: TPE-E. Cable: . Sheath diameter∅ 4 mmColorblackCores4 x 0.14 mm2Conductor construction18 x 0.1 mm ∅LengthL0.75 ... 3 m: . Sheath diameter: ∅ 4 mm. Color: black. Cores: 4 x 0.14 mm2. Conductor construction: 18 x 0.1 mm ∅. Length: 0.75 ... 3 m. Mass: 121.8 g

Brand	Pepperl Fuchs
Lifecycle status	active
