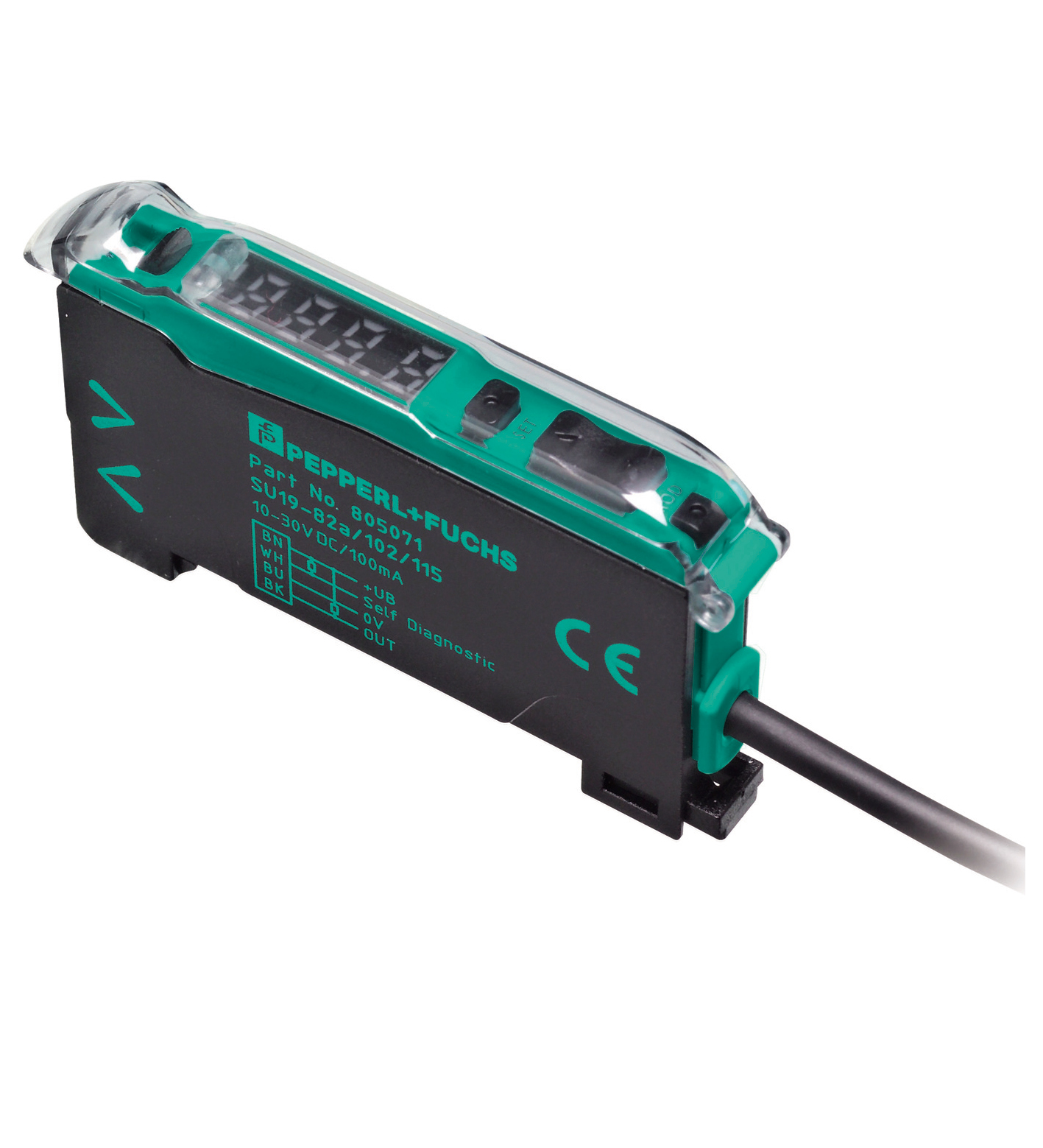

SU19/110/115a/126a

Fiber optic sensor. Classic Series fiber optic sensor with display, master module, push-pull output, fixed cable with M8 plug, Classic line with display , AGC (Automatic Gain Control) for faster tea...

Fiber optic sensor. Classic Series fiber optic sensor with display, master module, push-pull output, fixed cable with M8 plug, Classic line with display , AGC (Automatic Gain Control) for faster teach-in, Gang mounting for easy wiring, Transparency recognition, 30 µs High Speed Mode. Sensor range: up to 150 mm (KLR-C02-2,2-2,0-K146). Detection range: up to 450 mm (KLE-C01-2,2-2,0-K116). Light source: LED. Light type: modulated visible red light , 660 nm. Ambient light limit: 10000 Lux. Gang mounting: maximum 20 units. MTTFd: 500 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: Power on: static illumination , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz). Diagnostics indicator: 7-segment display. Function indicator: LED yellow: static illumination switching state, flashes when falling short of the operating reserve. Control elements: Button (Mode) for menu choice ; Button (Set) for Teach-In ; Button (Up/Down) for fine adjusting and parameterization. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 30 mA. Stability alarm output: 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected. Switching type: light/dark on selectable programmable. Signal output: 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected. Switching voltage: max. 30 V DC. Switching current: max. 100 mA , resistive load. Voltage drop: ≤ 2 V DC at 100 mA ; ≤ 0.7 V at 10 mA. Switching frequency: High speed mode: 16 kHz , Standard mode: 3 kHz , High resolution: 250 Hz ~ 3 kHz (selection by the sensor), Automatic: 250 Hz , Glass mode: 250 Hz. Response time: High speed mode: 30 µs , Standard mode: 160 µs , High resolution: 2 ms , Automatic: 160 µs ~ 2 ms (choice by the sensor), Glass mode: 2 ms. Repeat accuracy: ≤ 0.5 % of adjusted sensor range. Timer function: ON-delay, OFF-delay, one shot, pulse extension ; adjustable 0 ... 999 ms in 1 ms increments. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -10 ... 55 °C (14 ... 131 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Degree of protection: IP50. Connection: 200 mm, PVC cable with M8 connector, 4-pin. Material: . HousingPC: . Housing: PC. Mass: 45 g. Dimensions: . Height34.5 mmWidth9 mmDepth62.3 mm: . Height: 34.5 mm. Width: 9 mm. Depth: 62.3 mm

Brand	Pepperl Fuchs
Lifecycle status	active
